AQ Drafting Service, LLC

Shop Drawings - Takeoff's - Cut Lists

Shop Drawings are a requirement for any commercial building project. Let AQ Drafting Service provide you with an excellent set of shop drawings and other submittal products at a great price and with a great lead time.

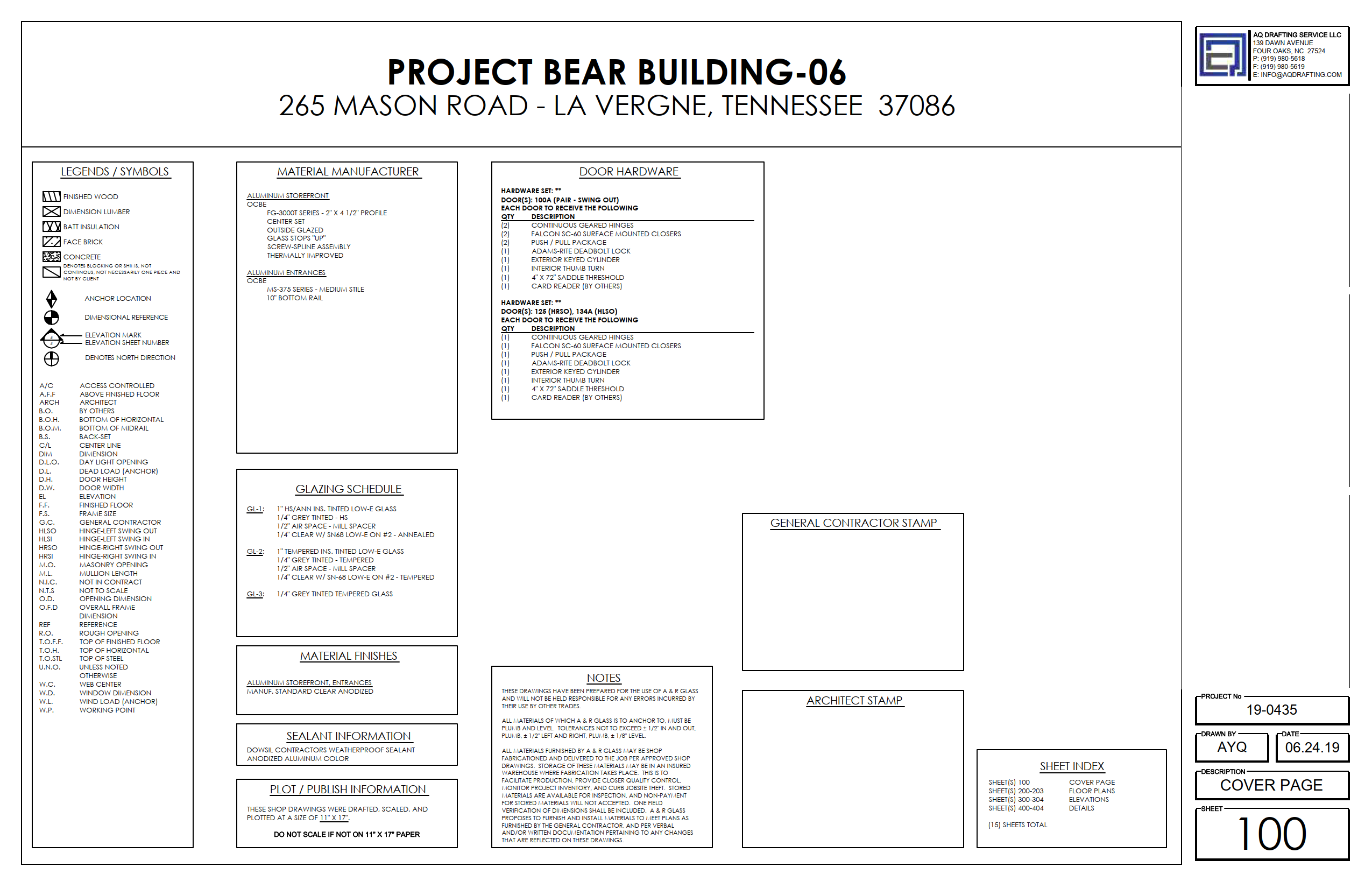

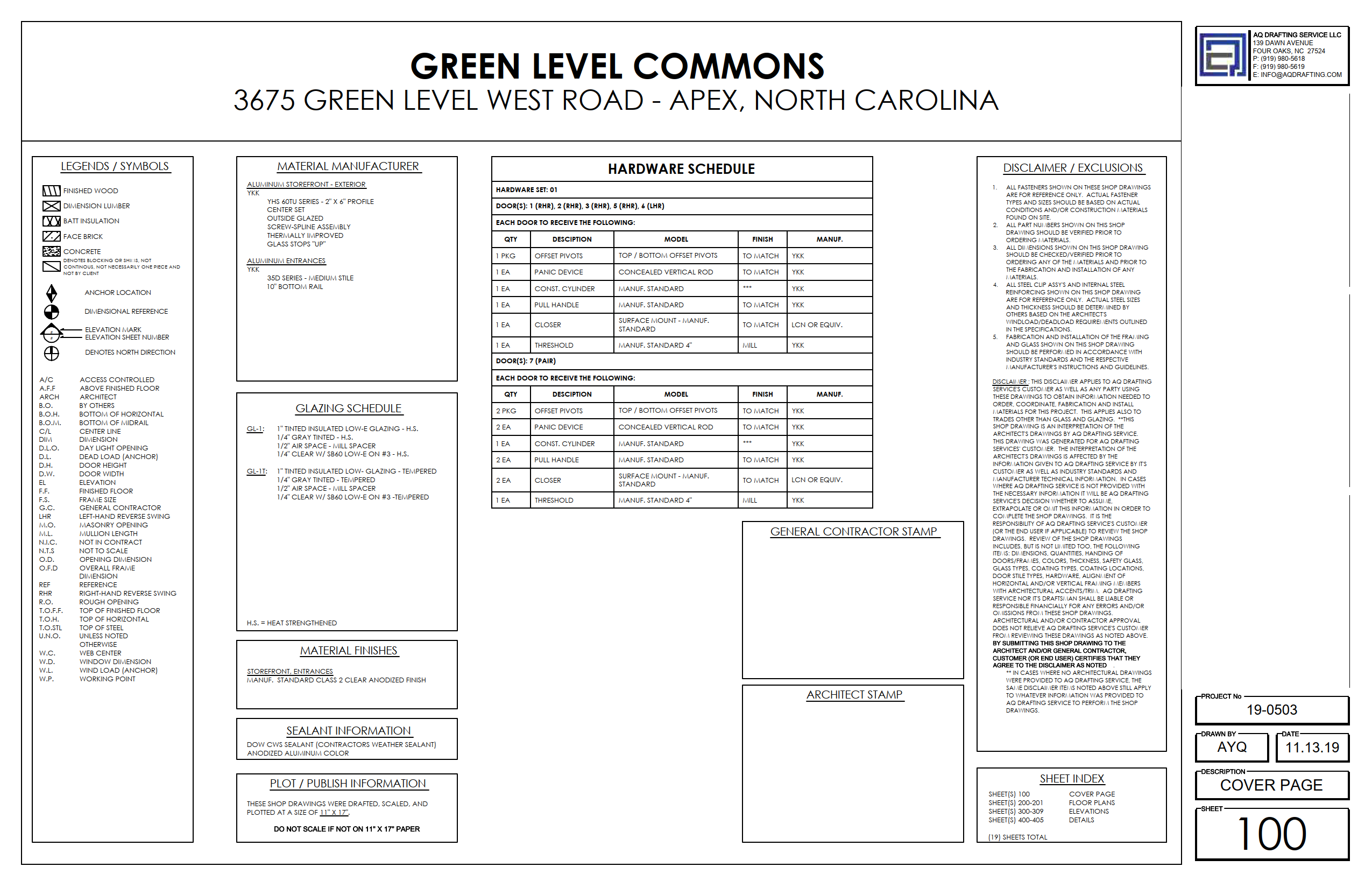

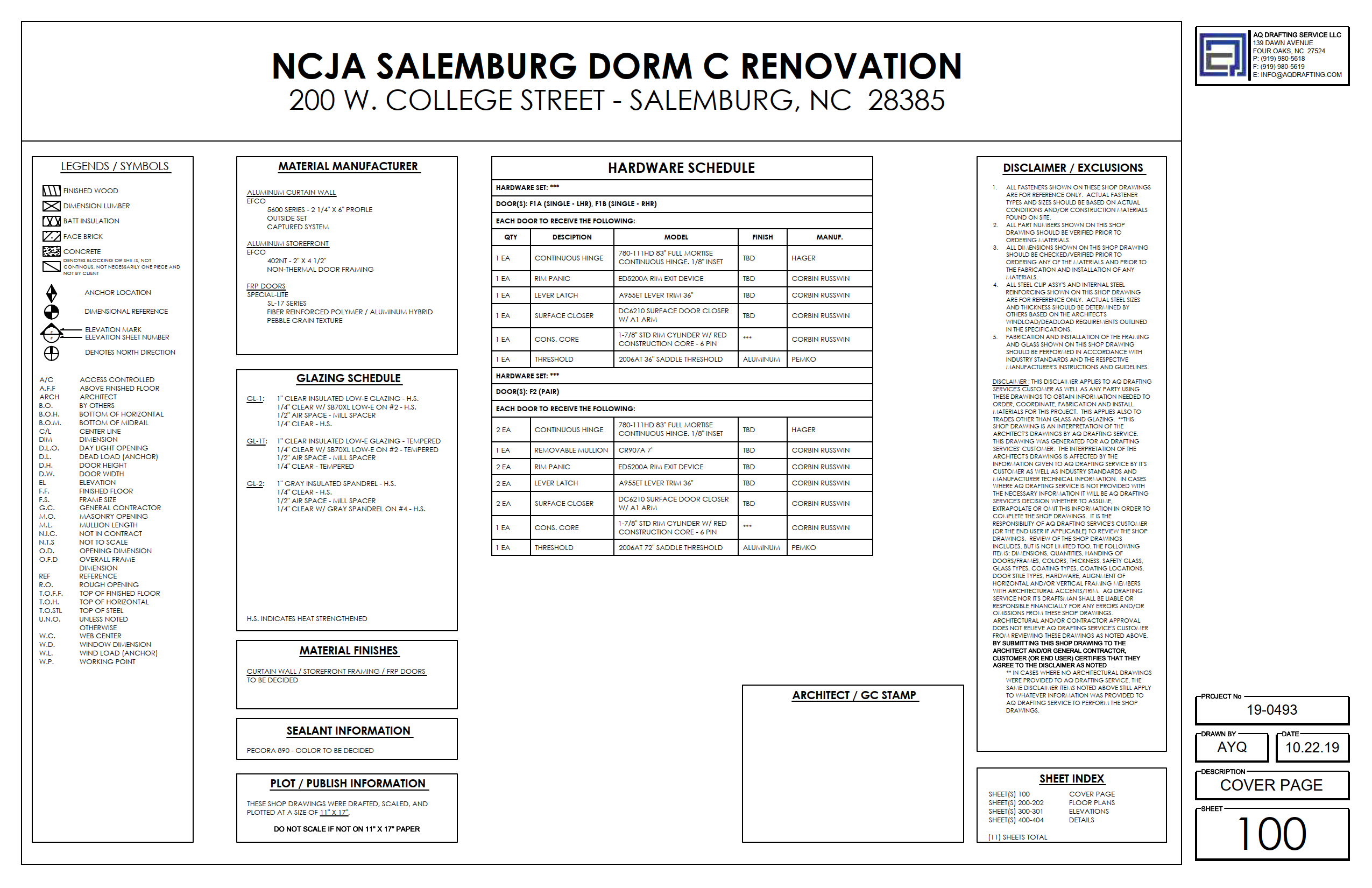

Shop Drawings Start At Just $75.00 Per Sheet (Cover Page Free)

Our Services

We gladly offer the following services...

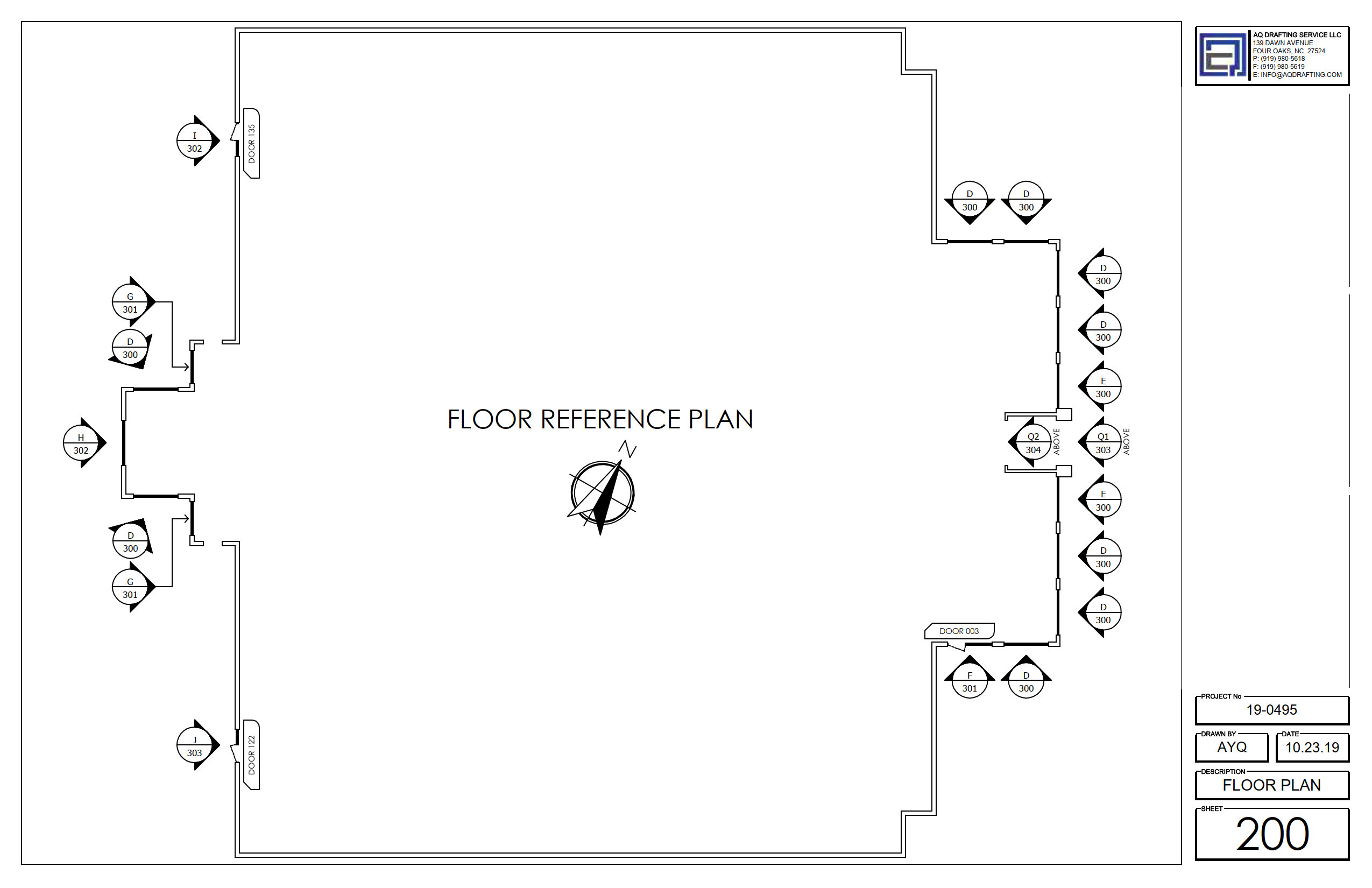

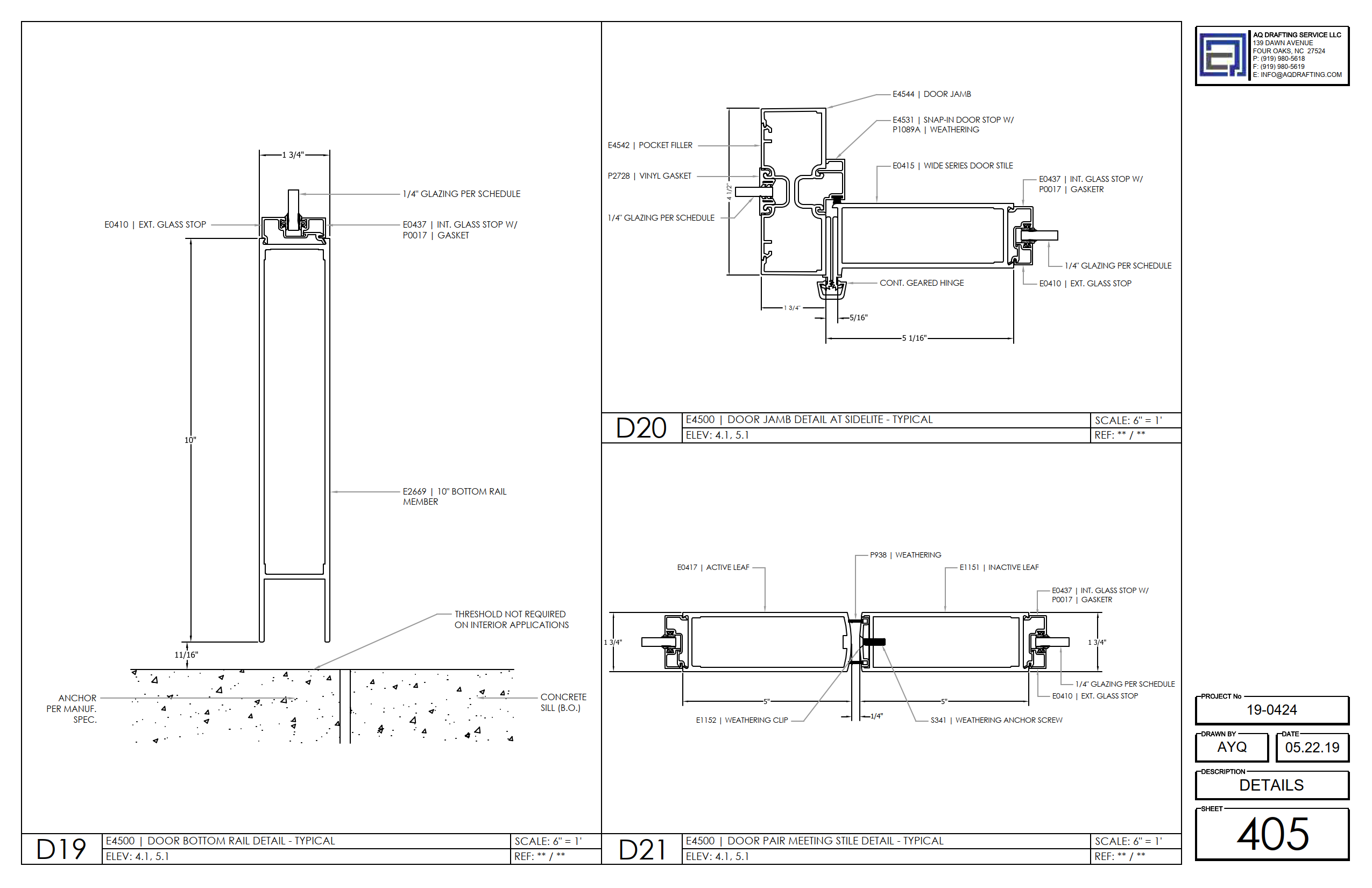

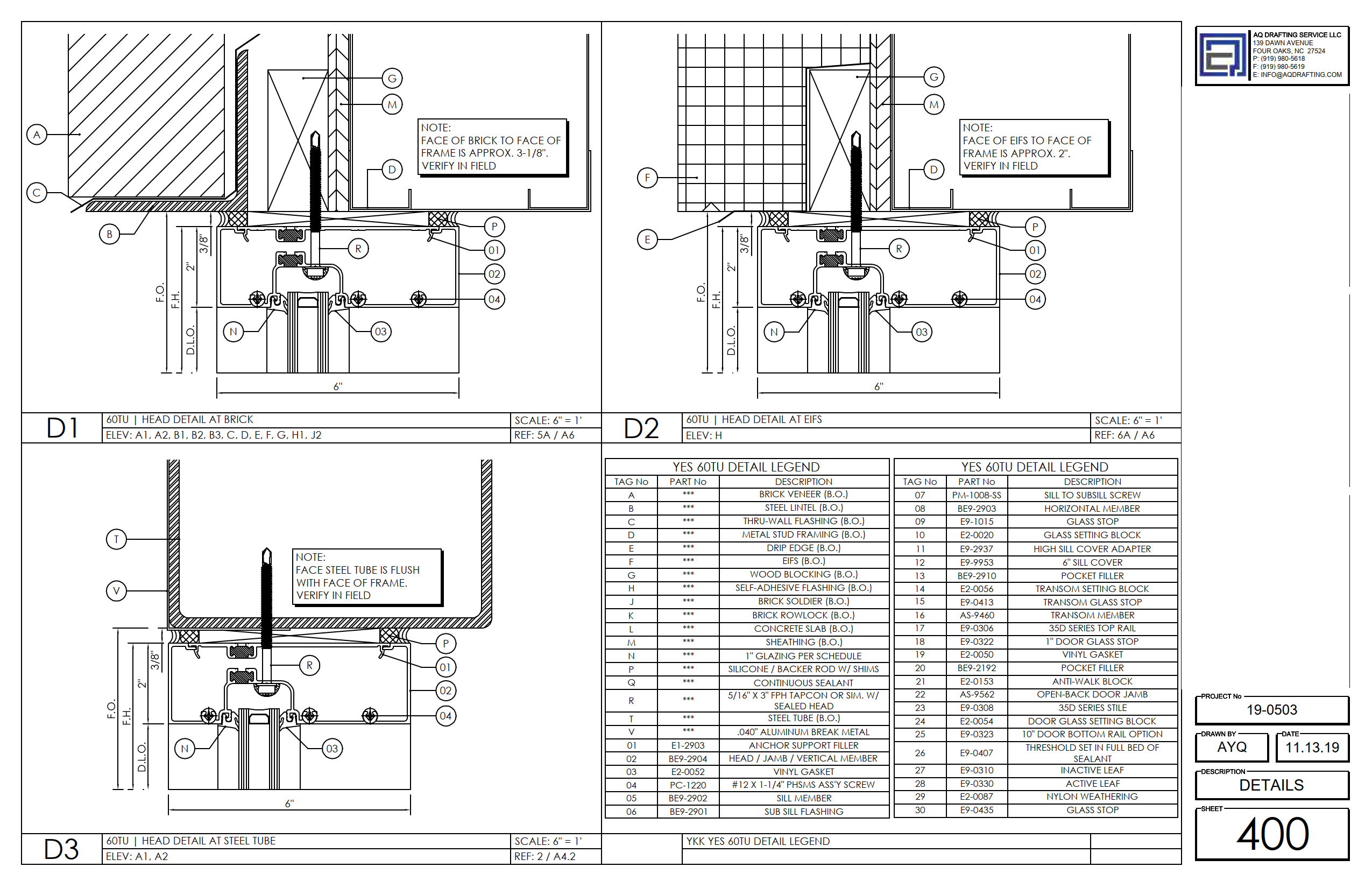

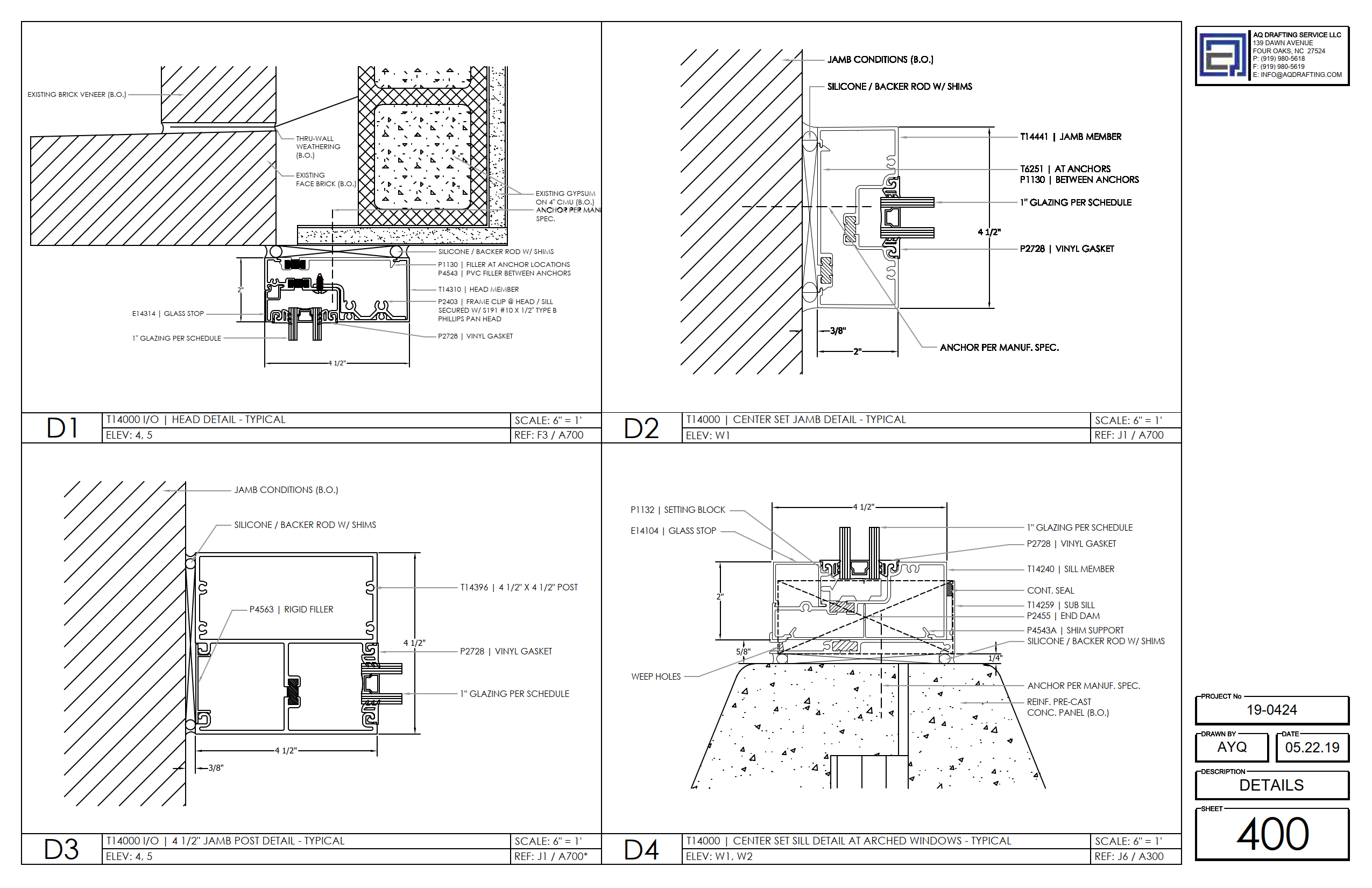

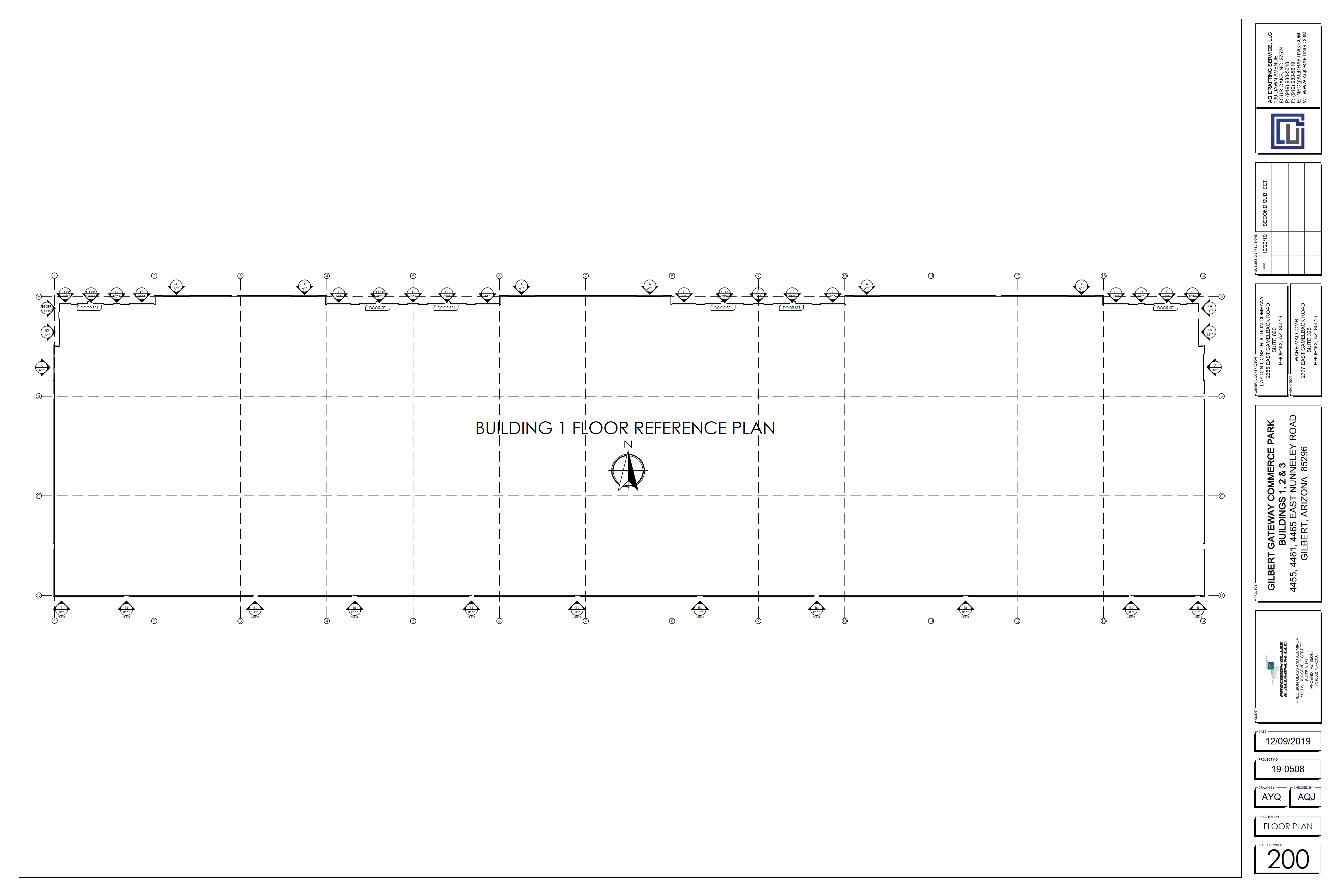

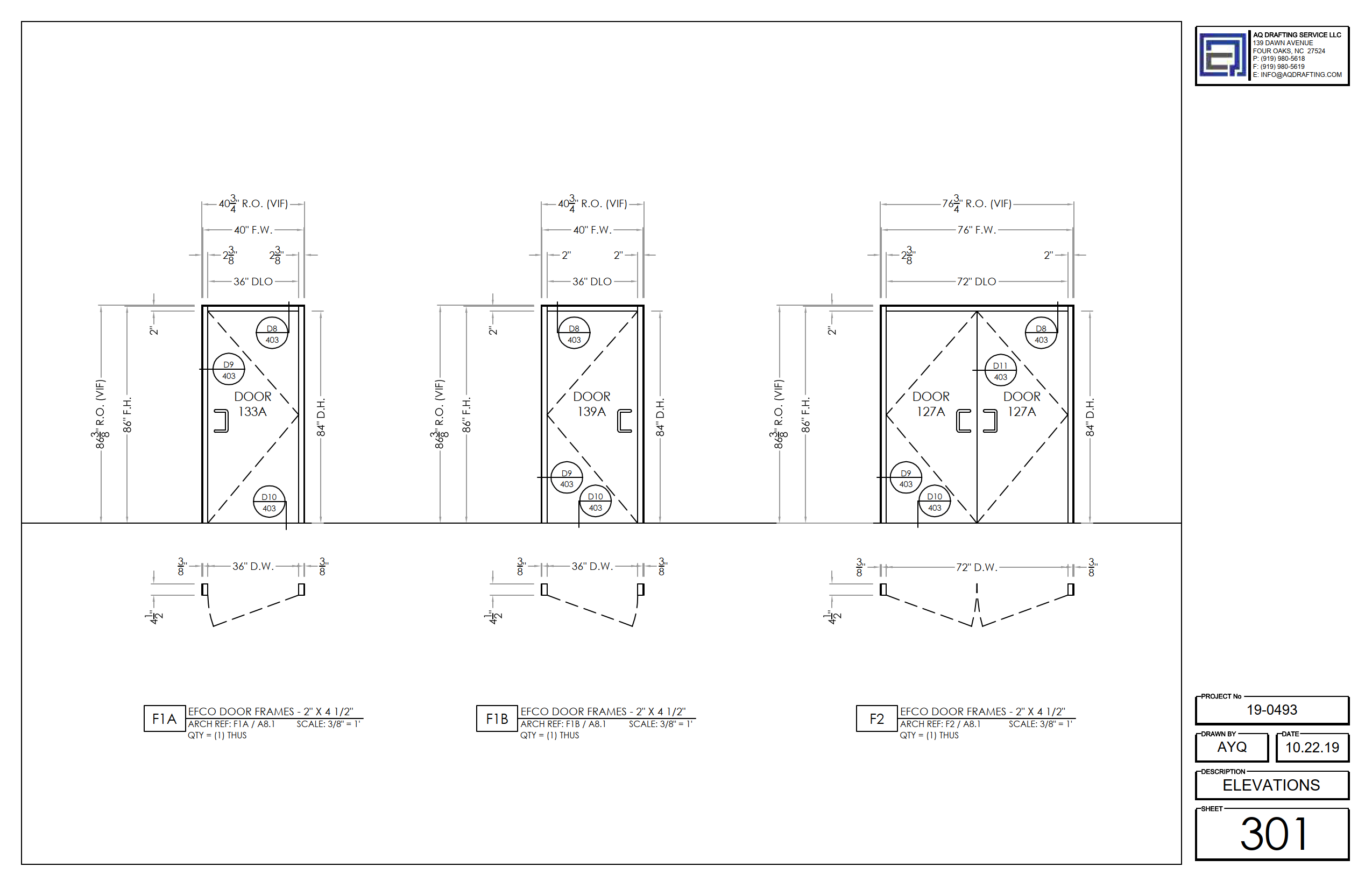

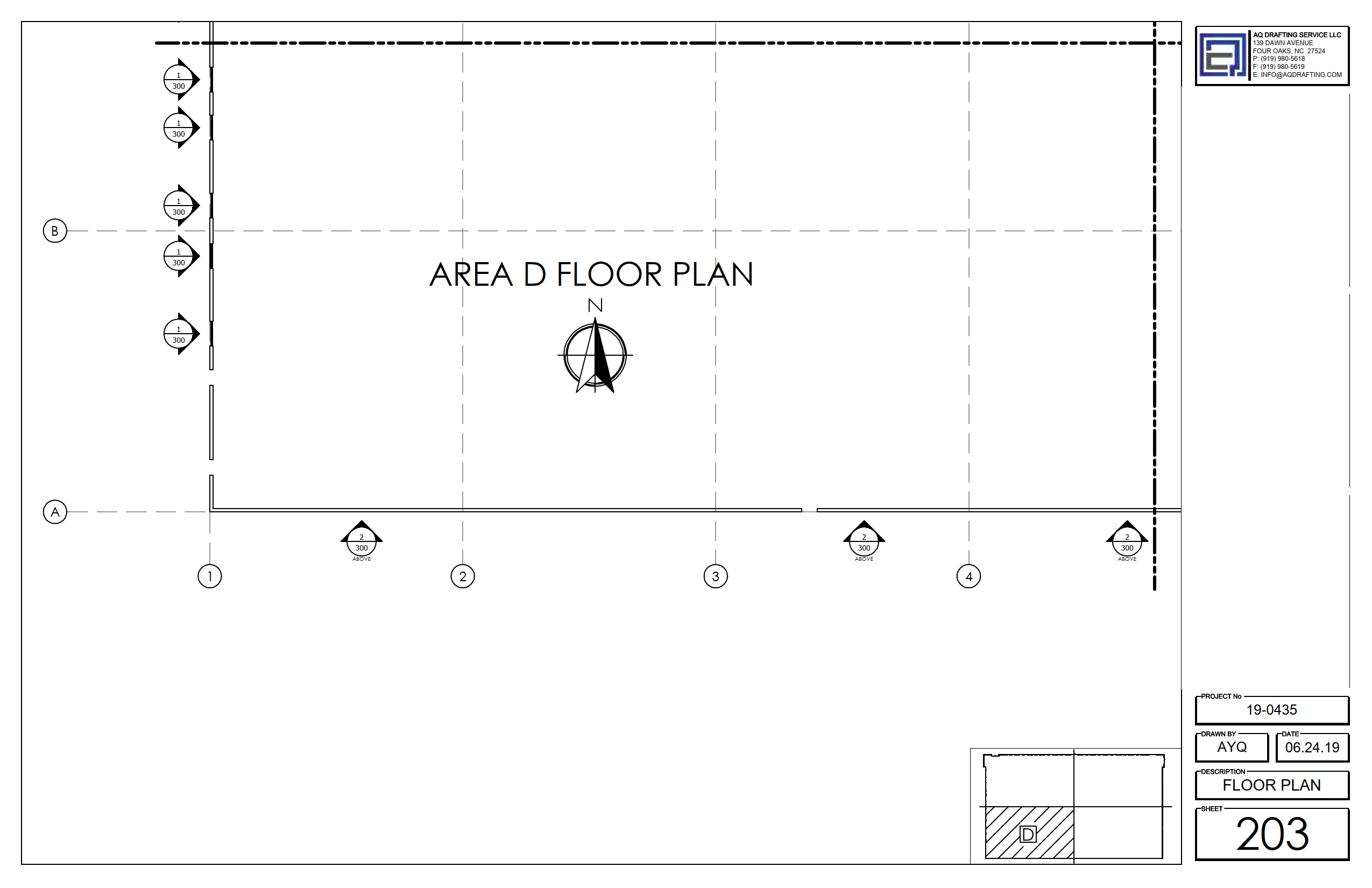

CAD Drawings

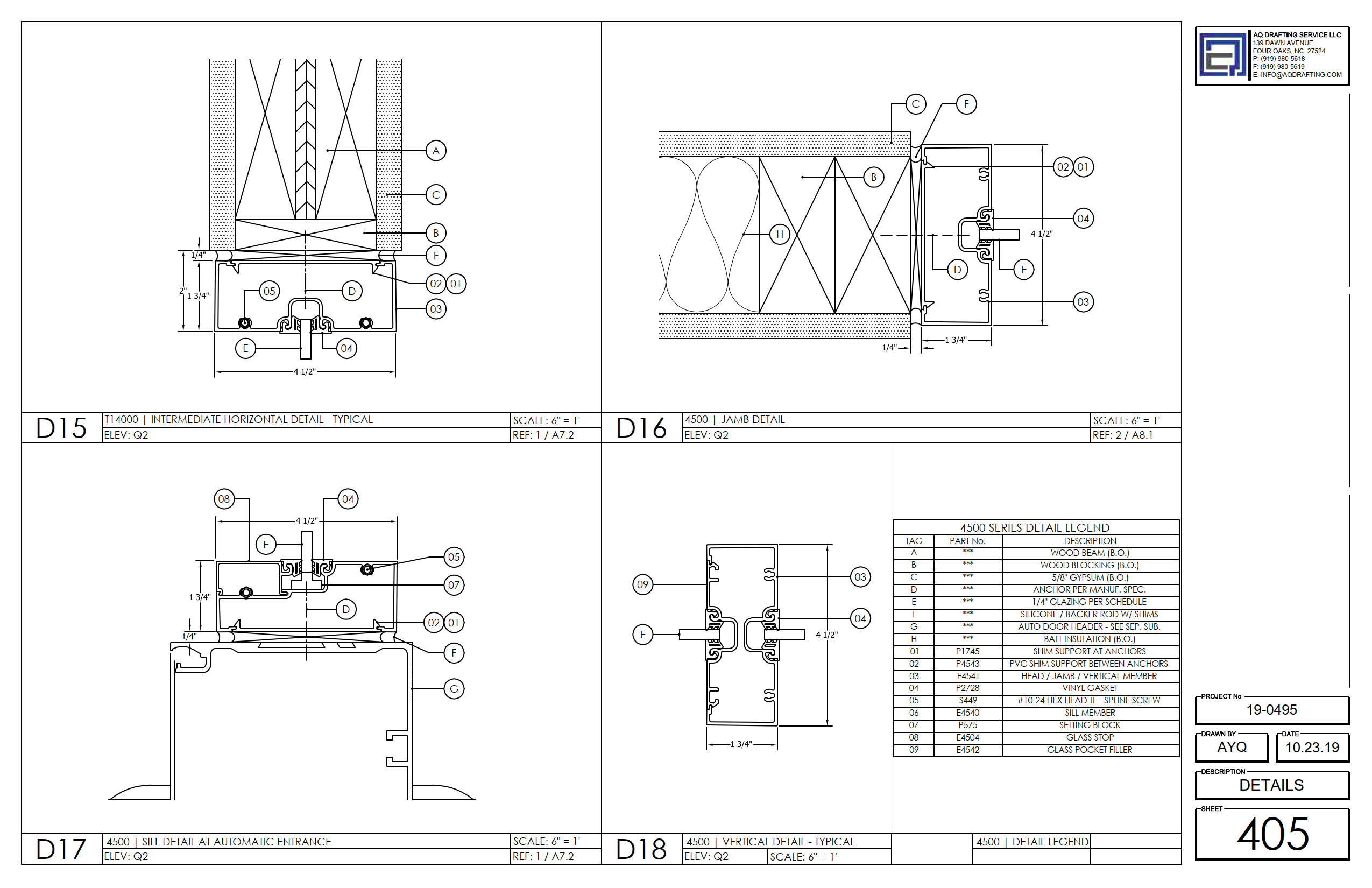

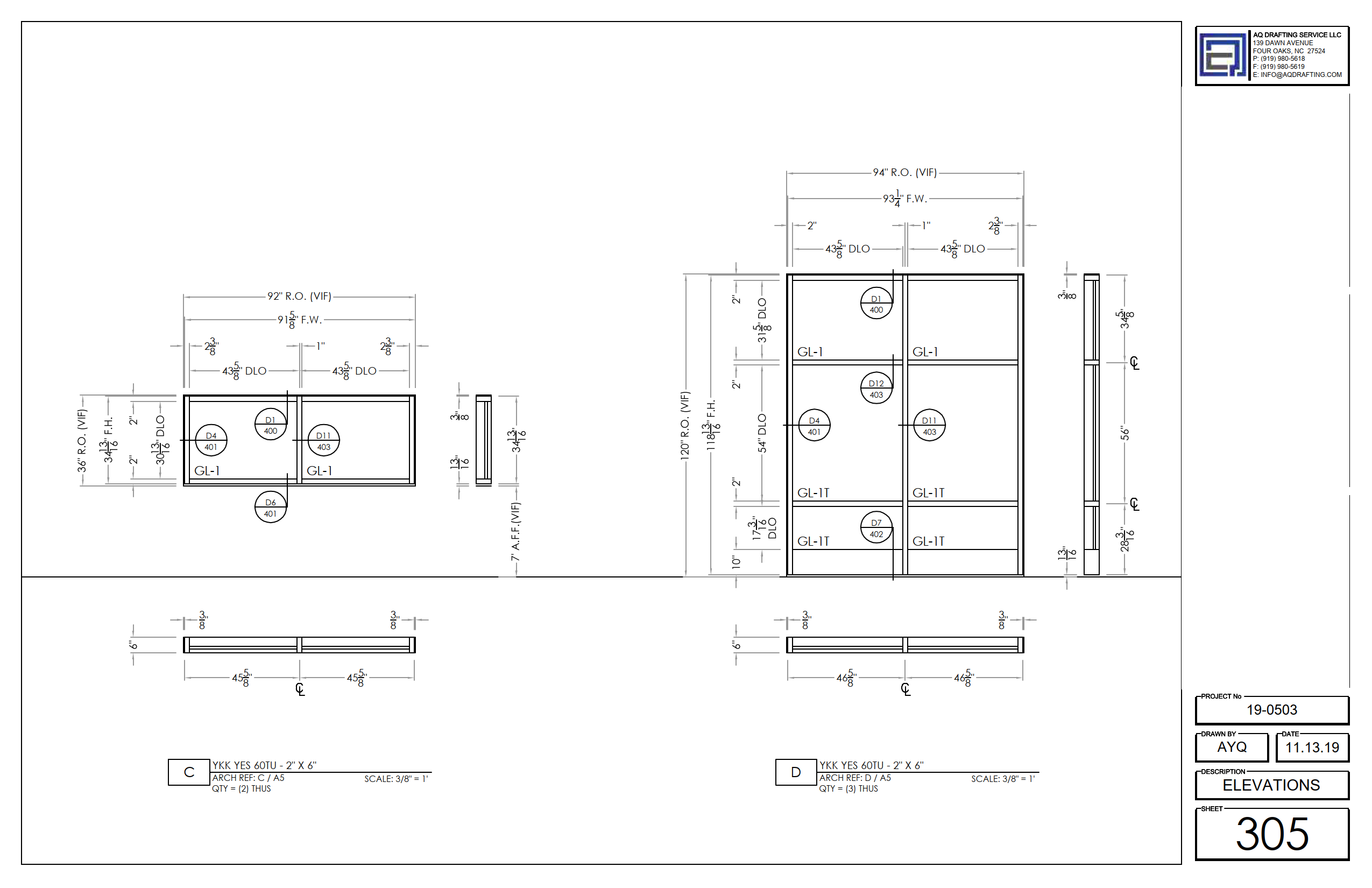

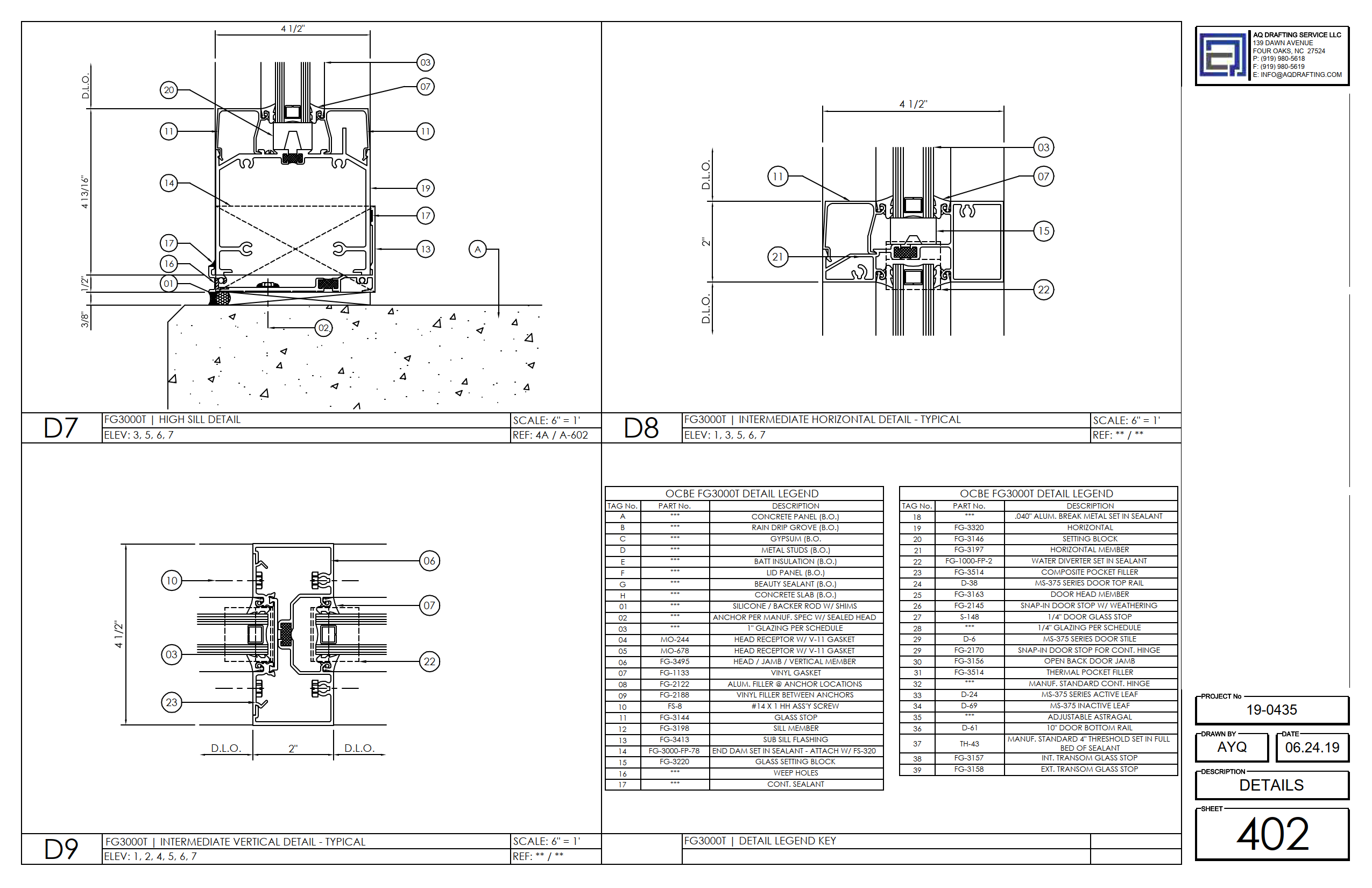

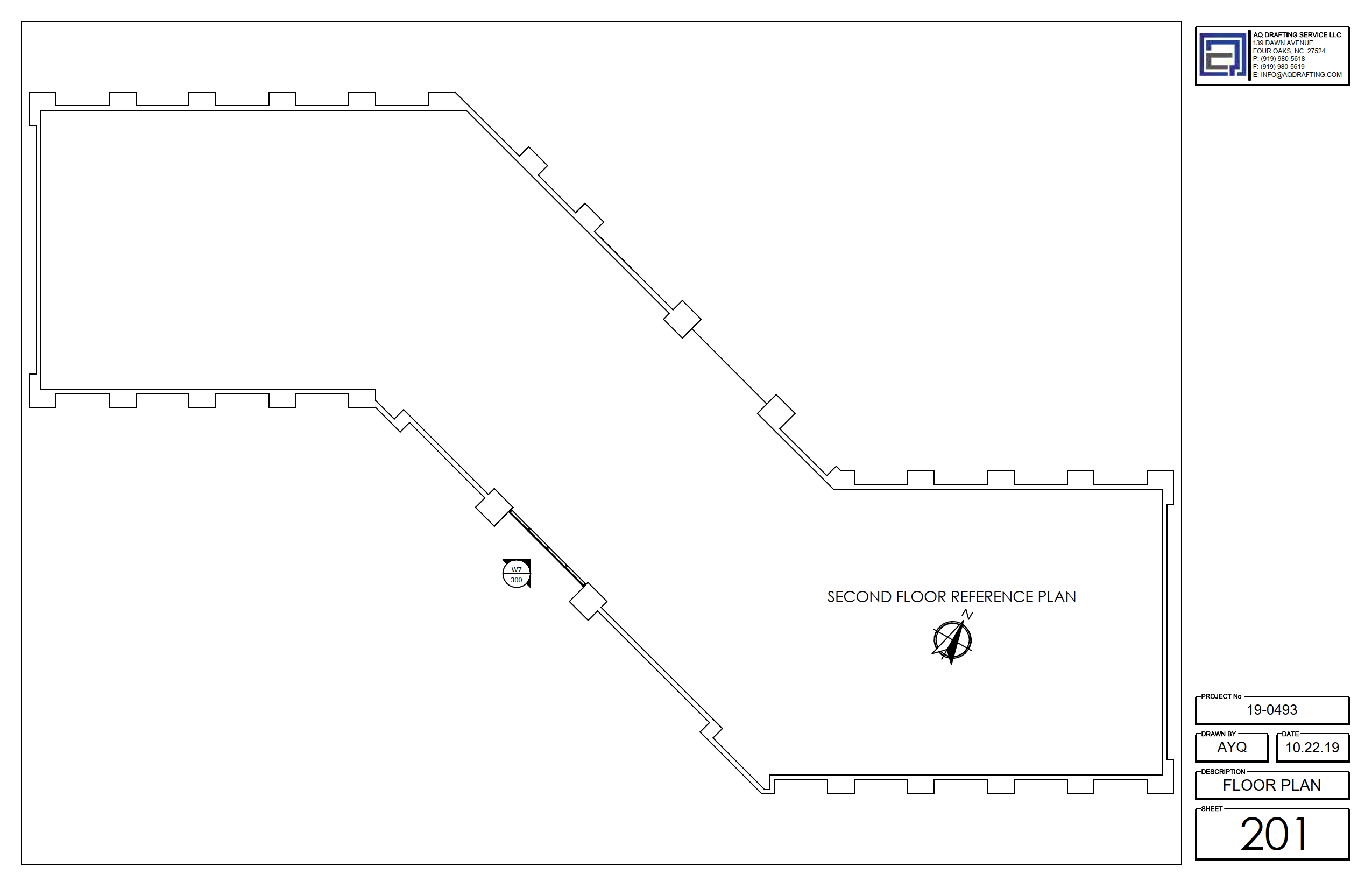

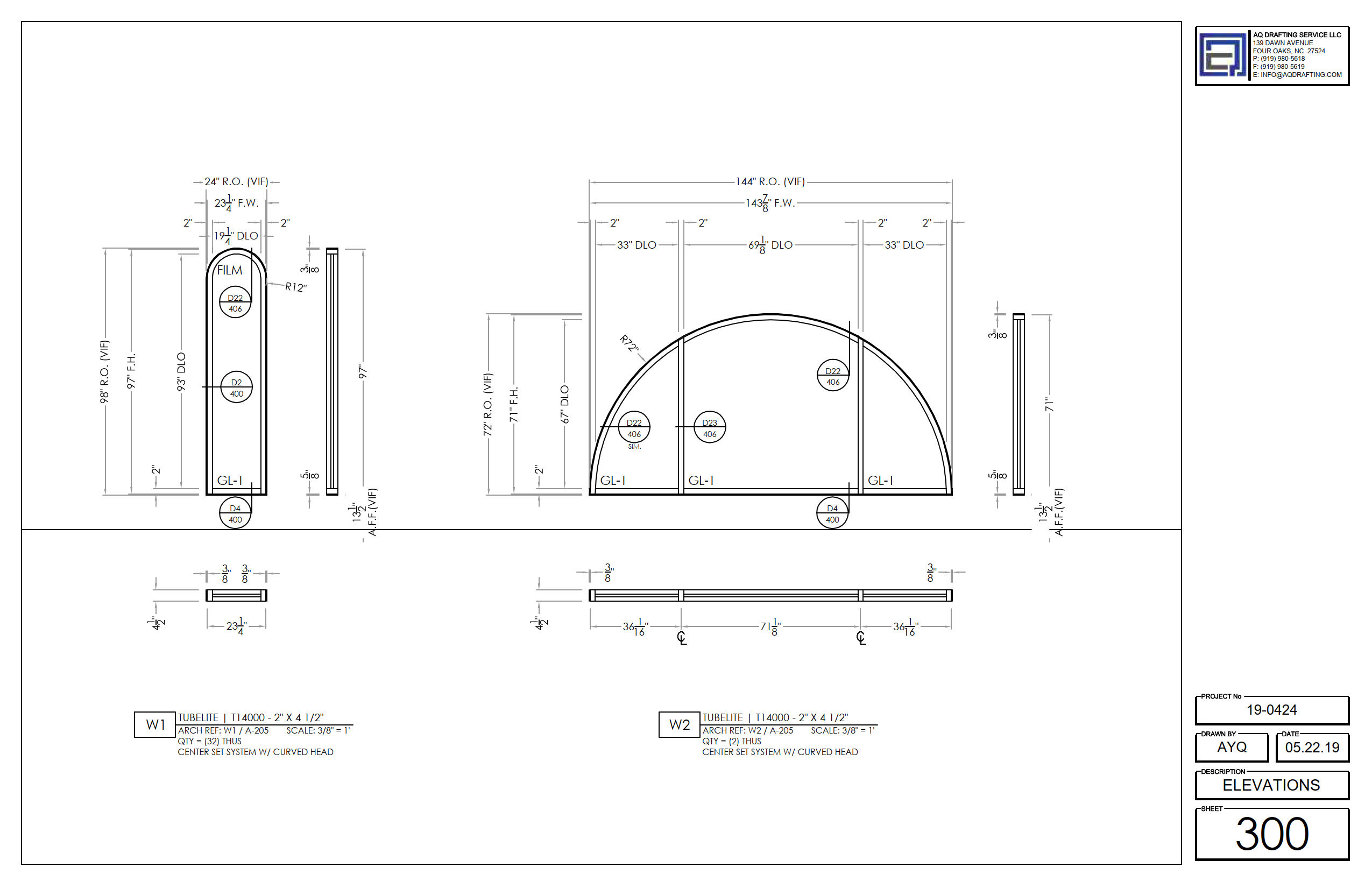

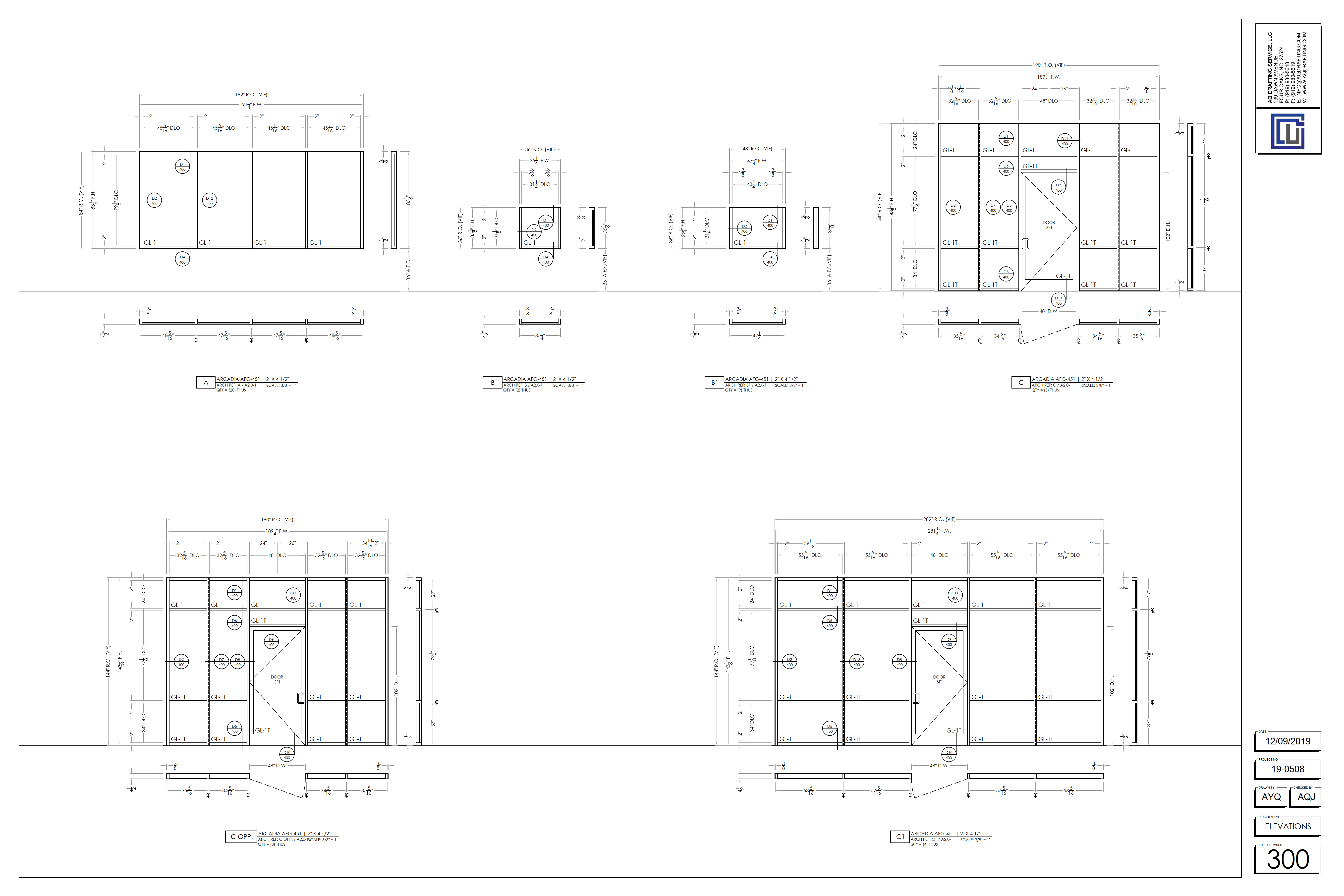

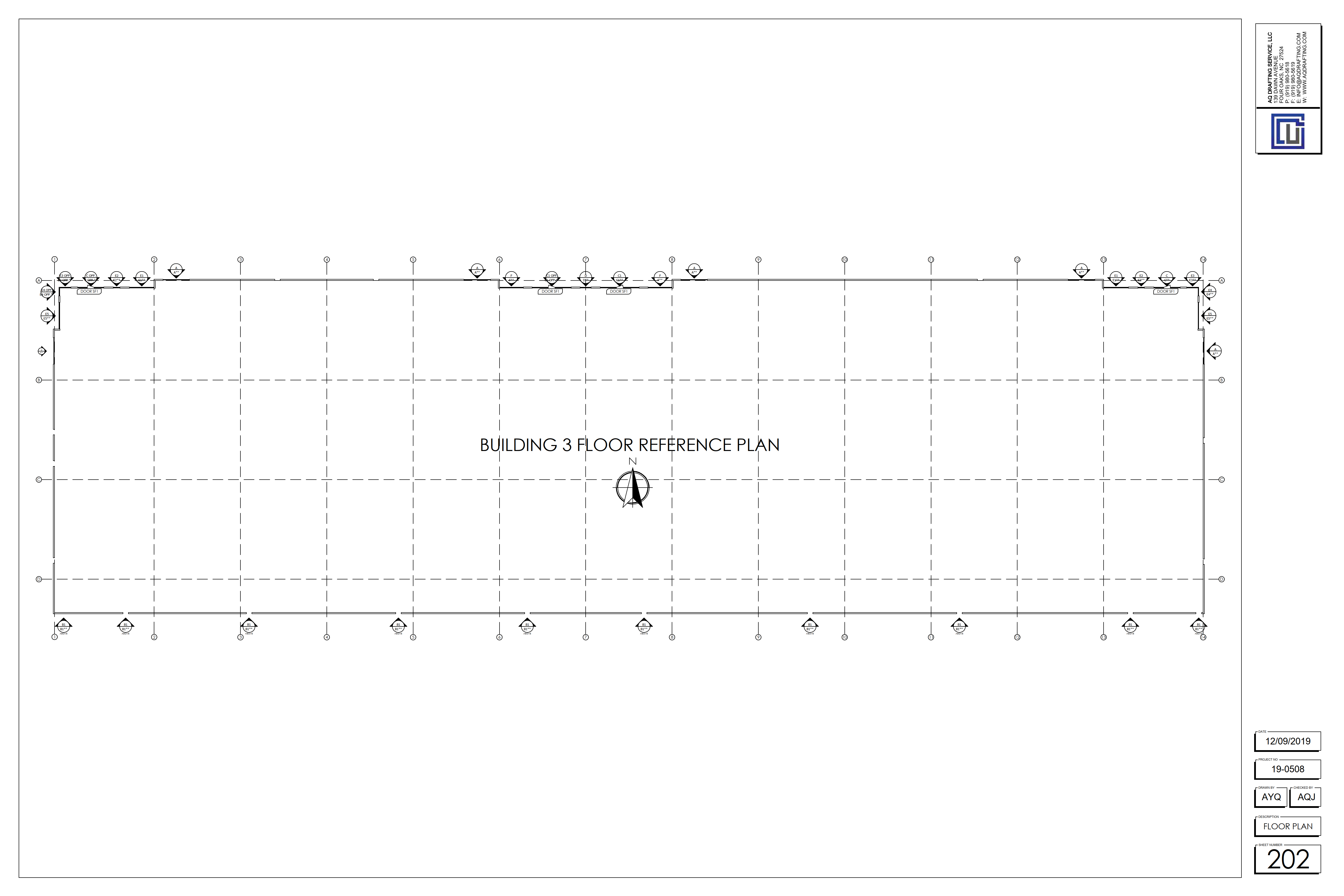

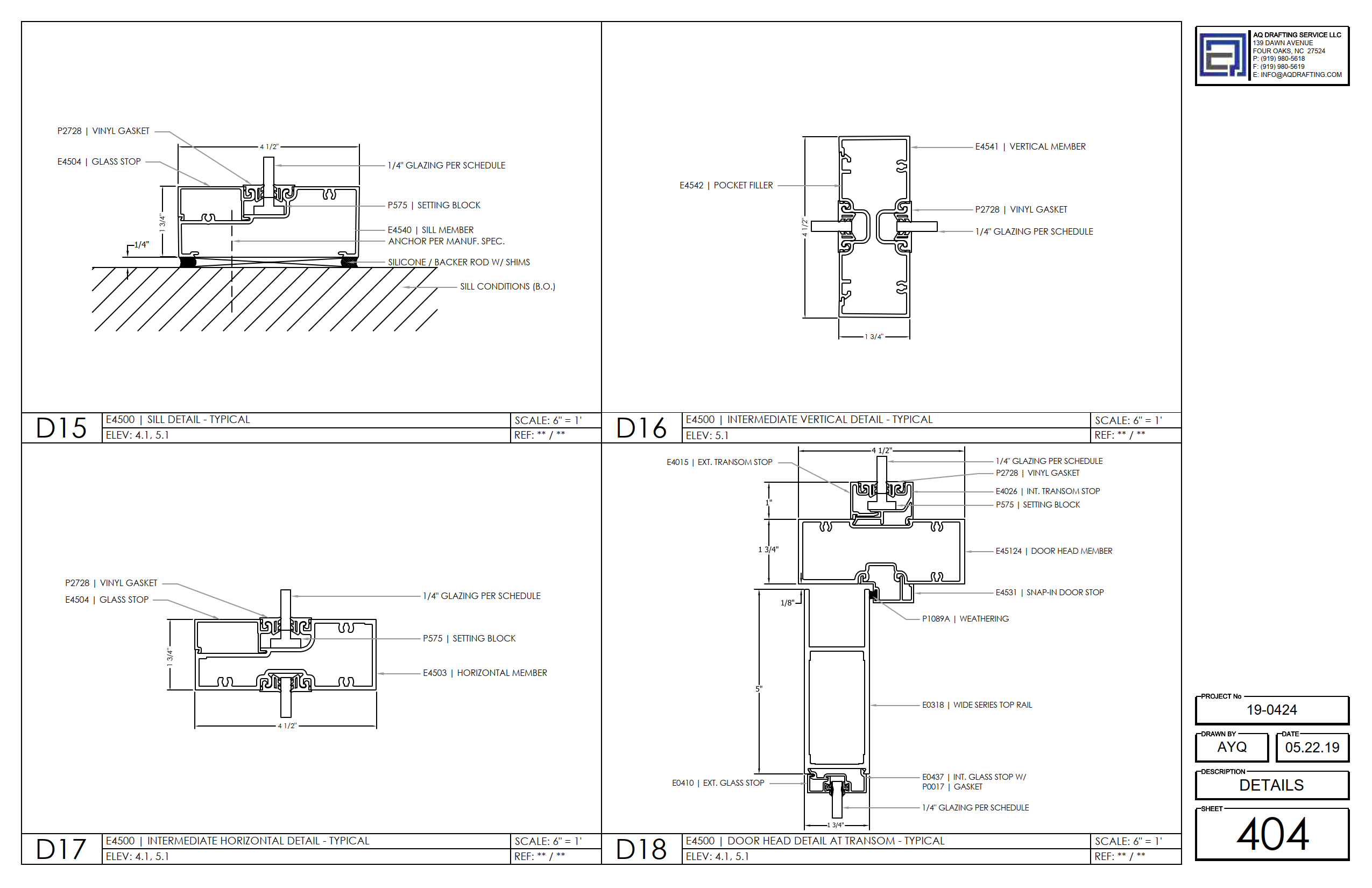

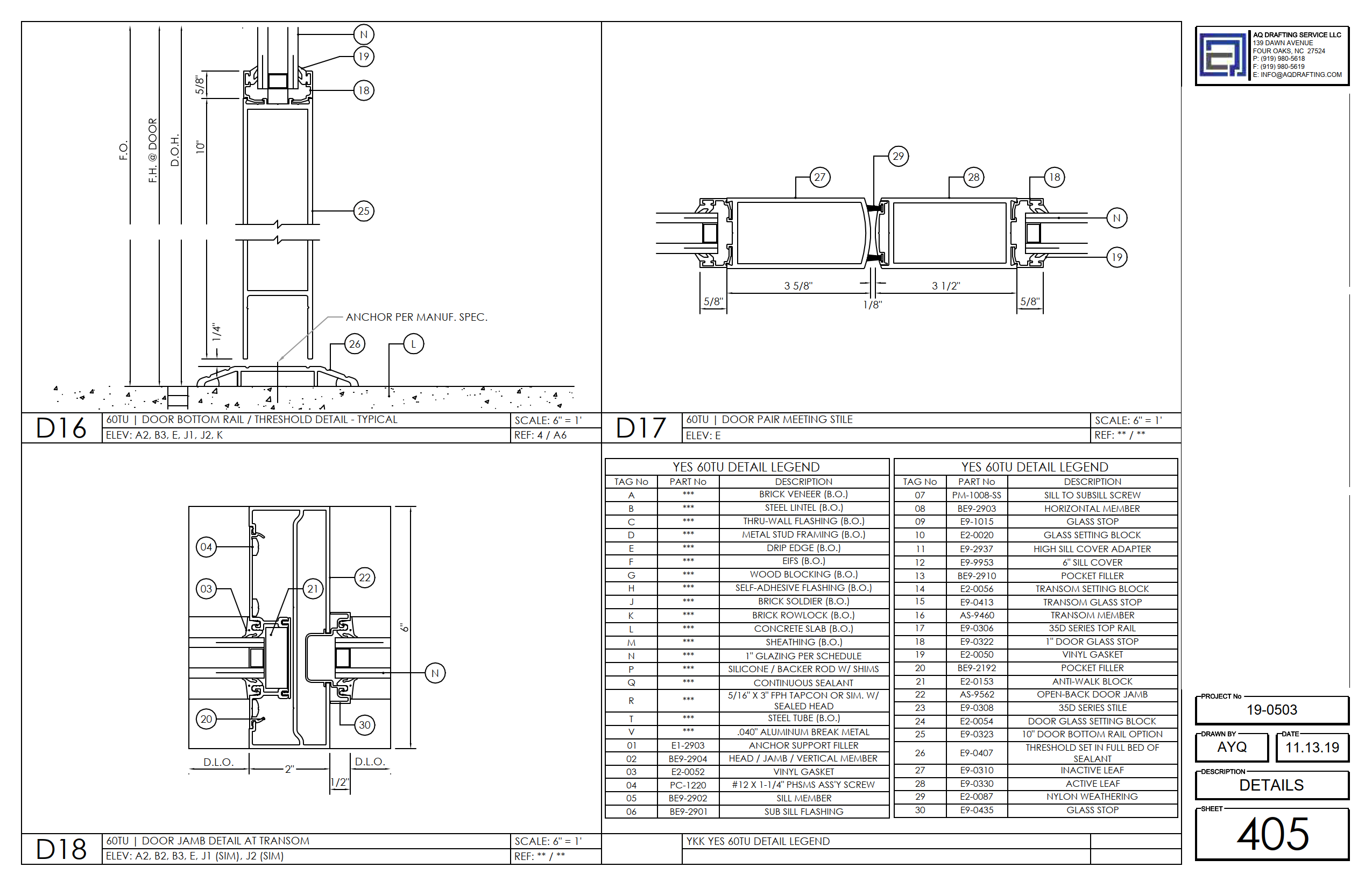

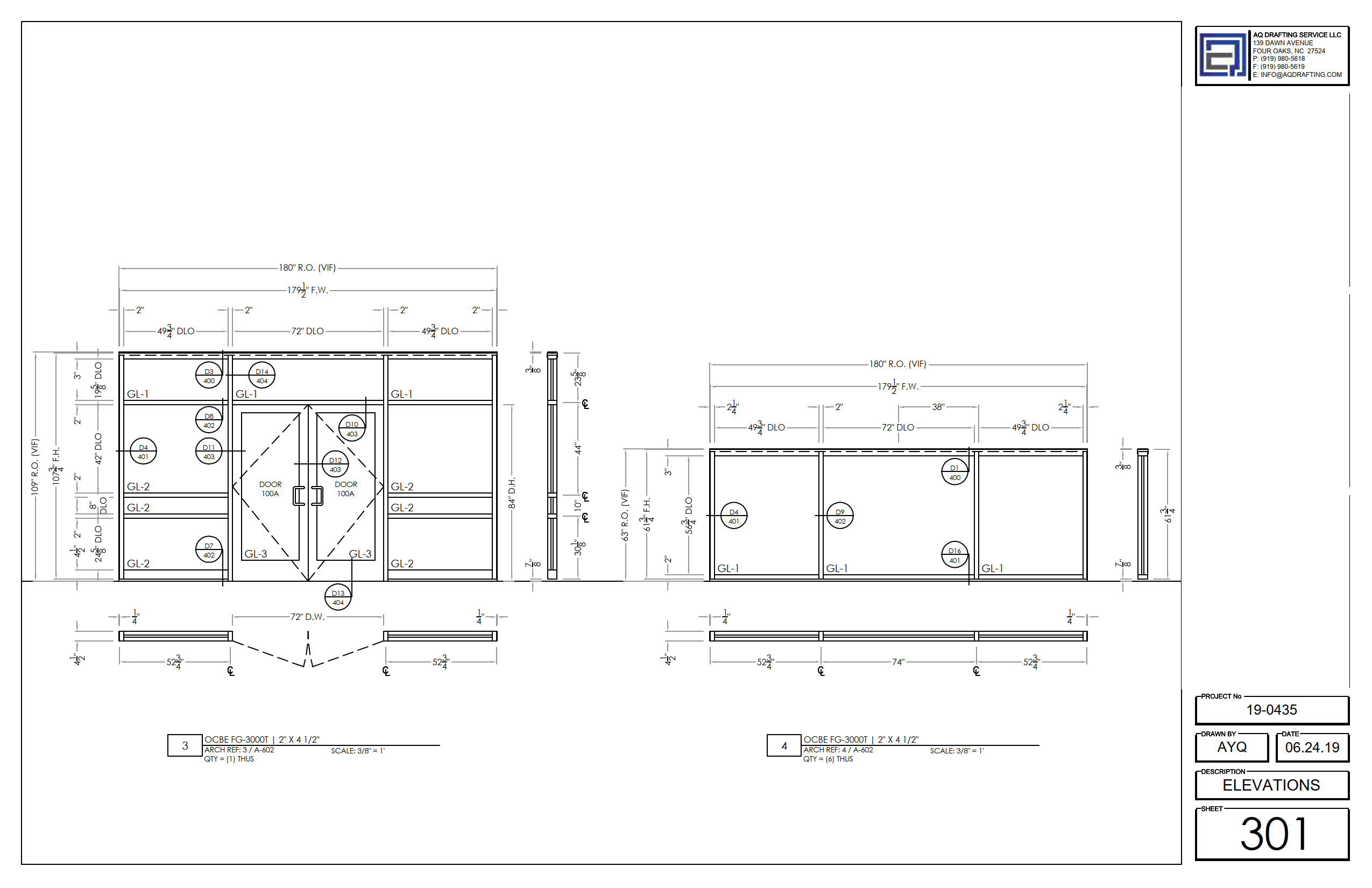

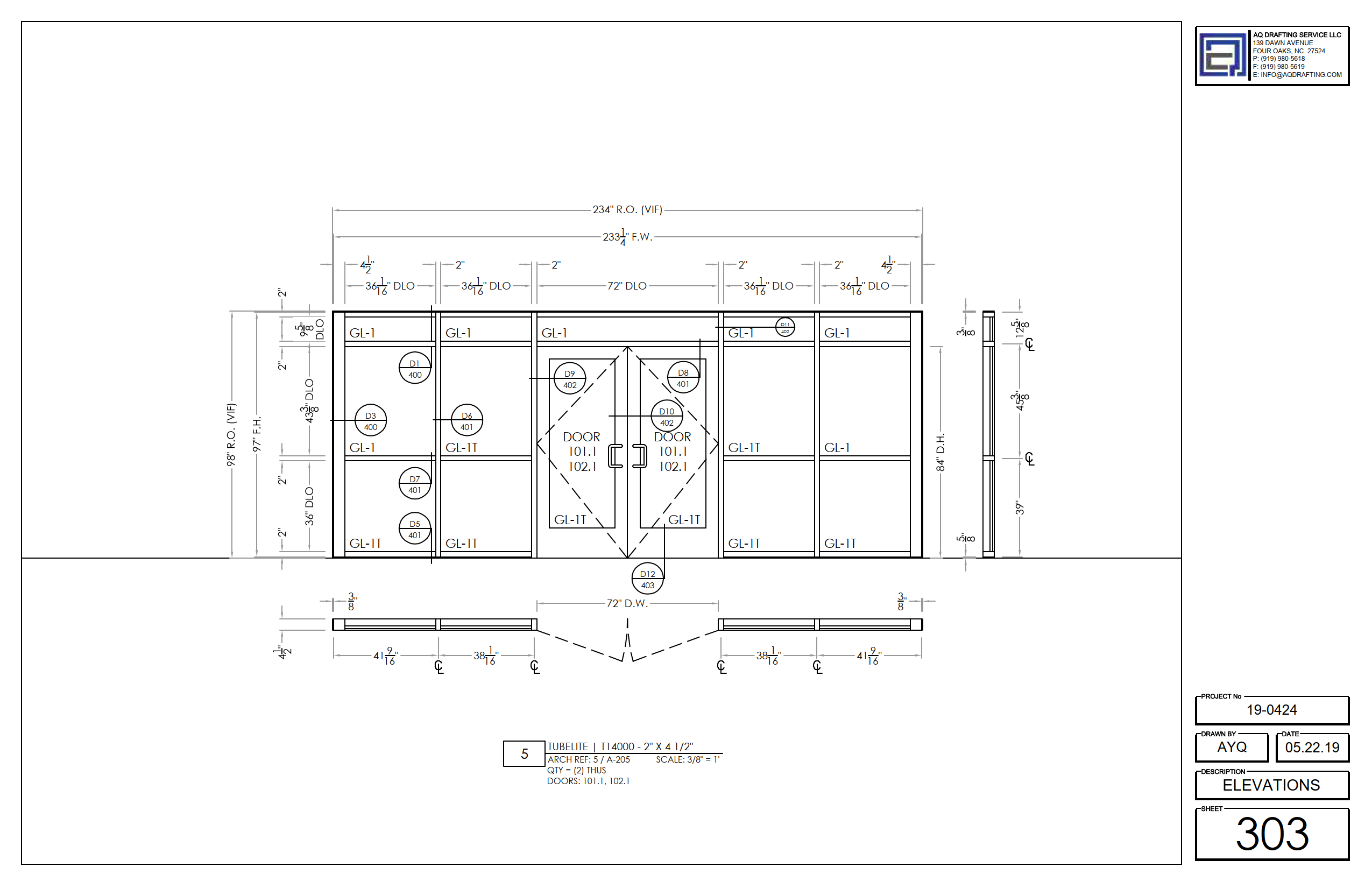

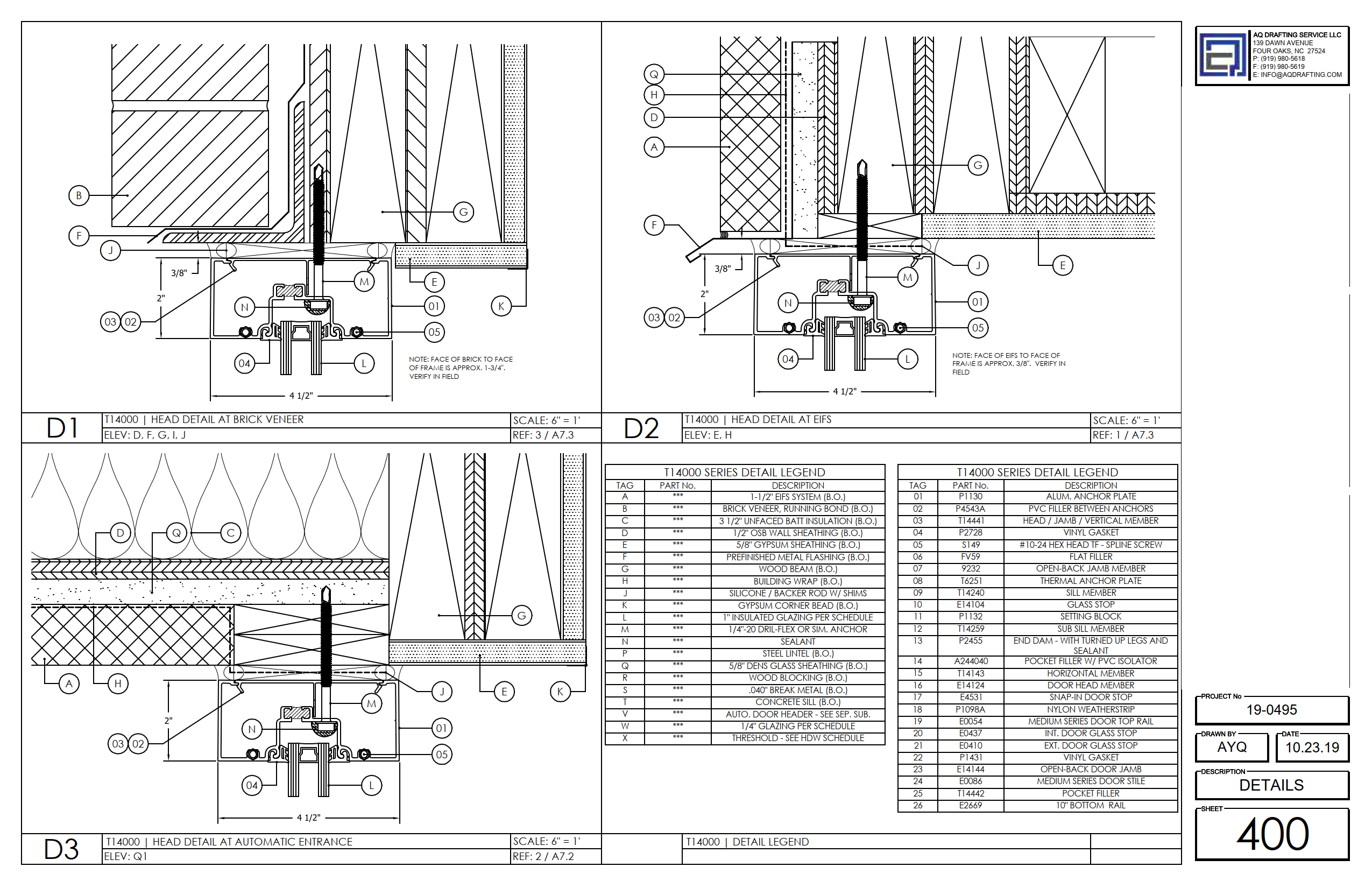

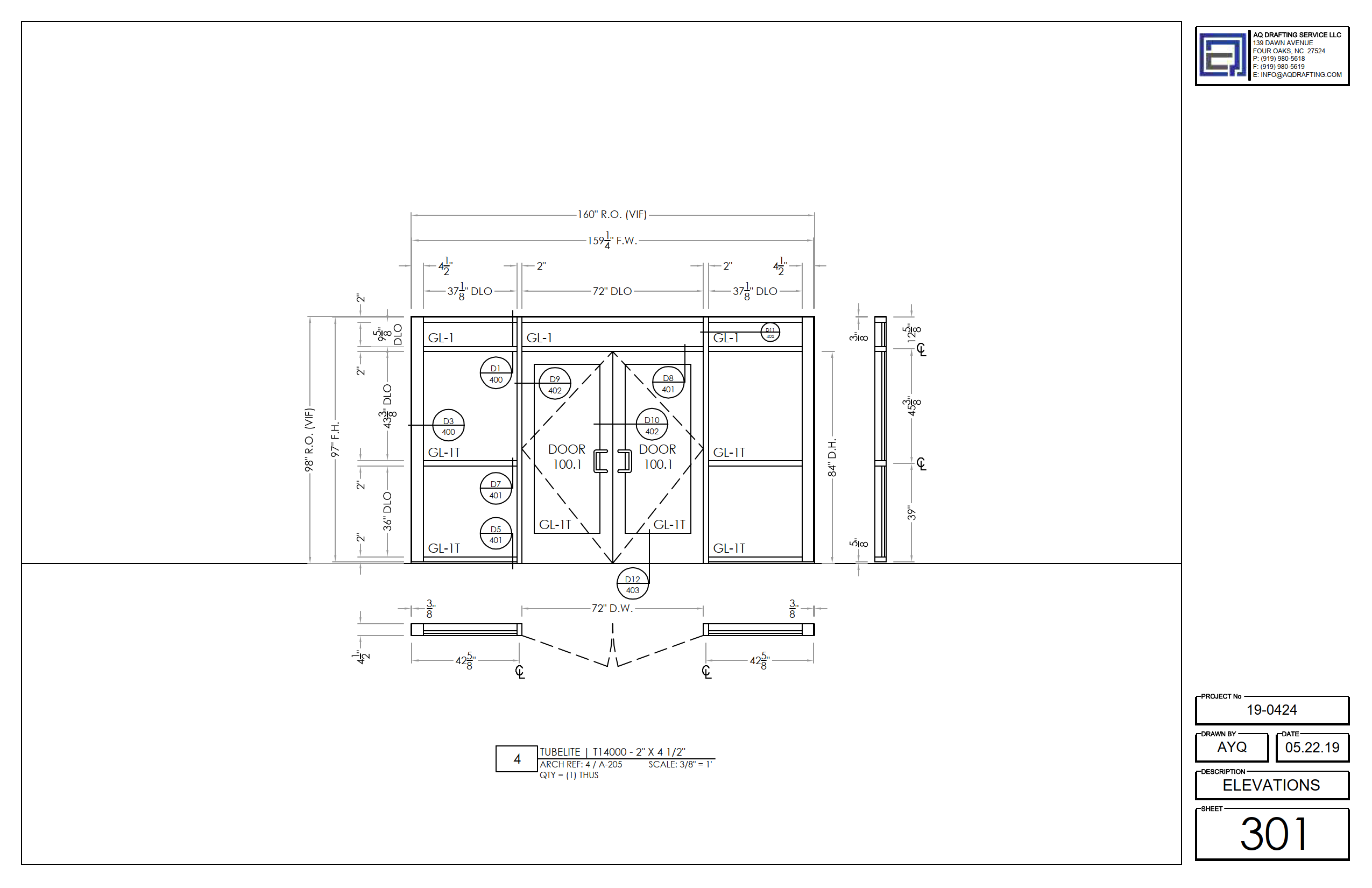

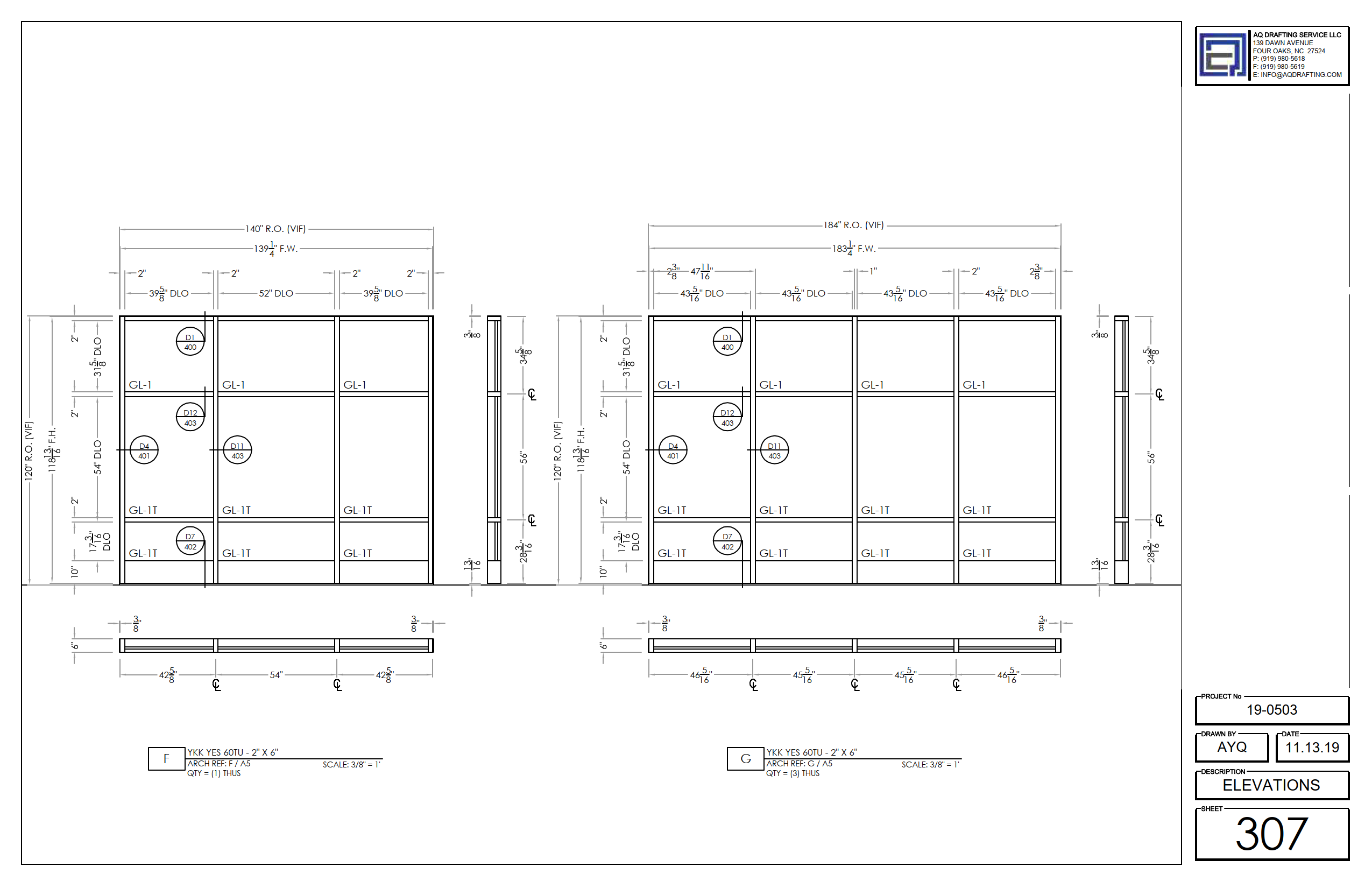

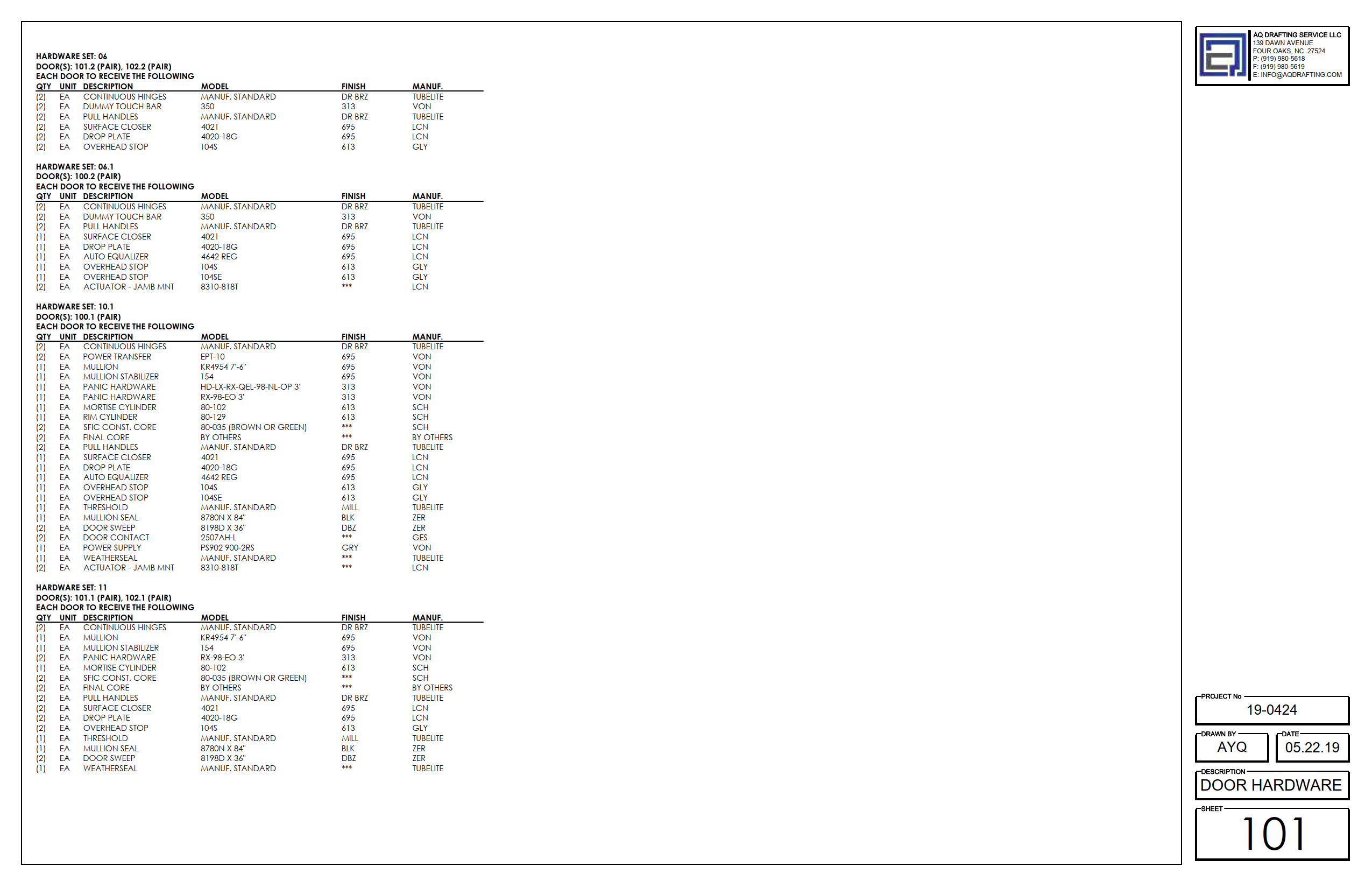

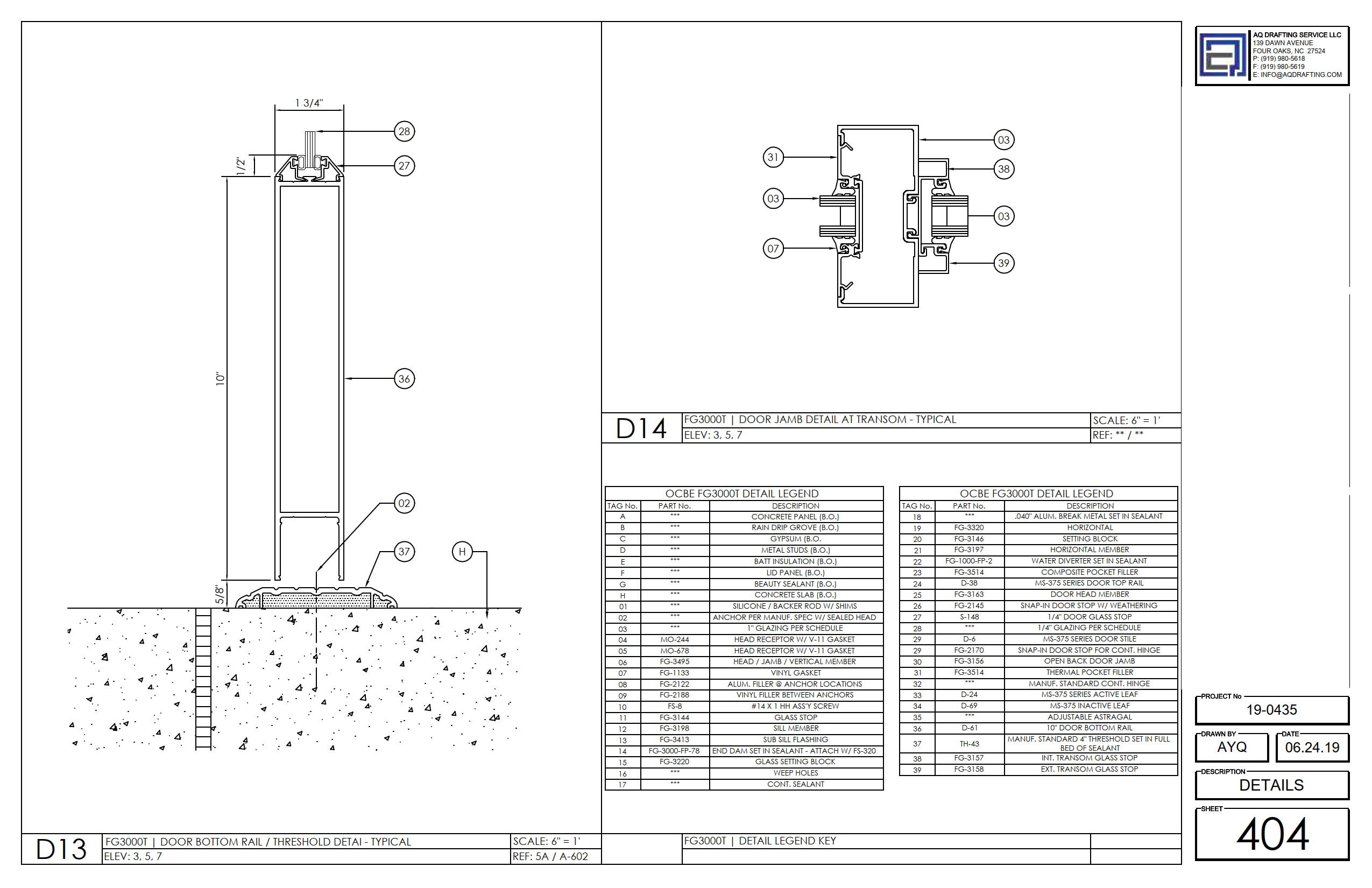

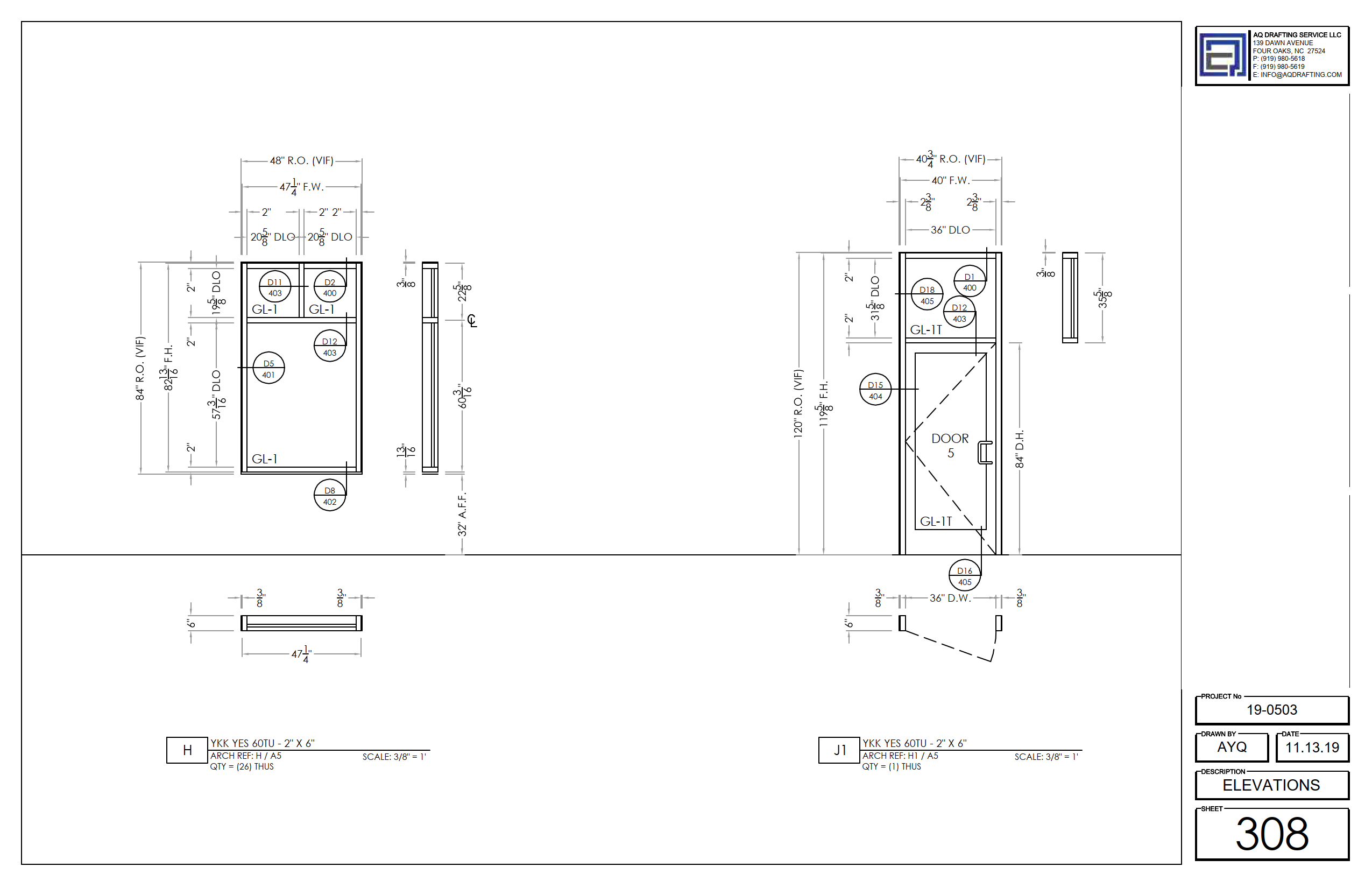

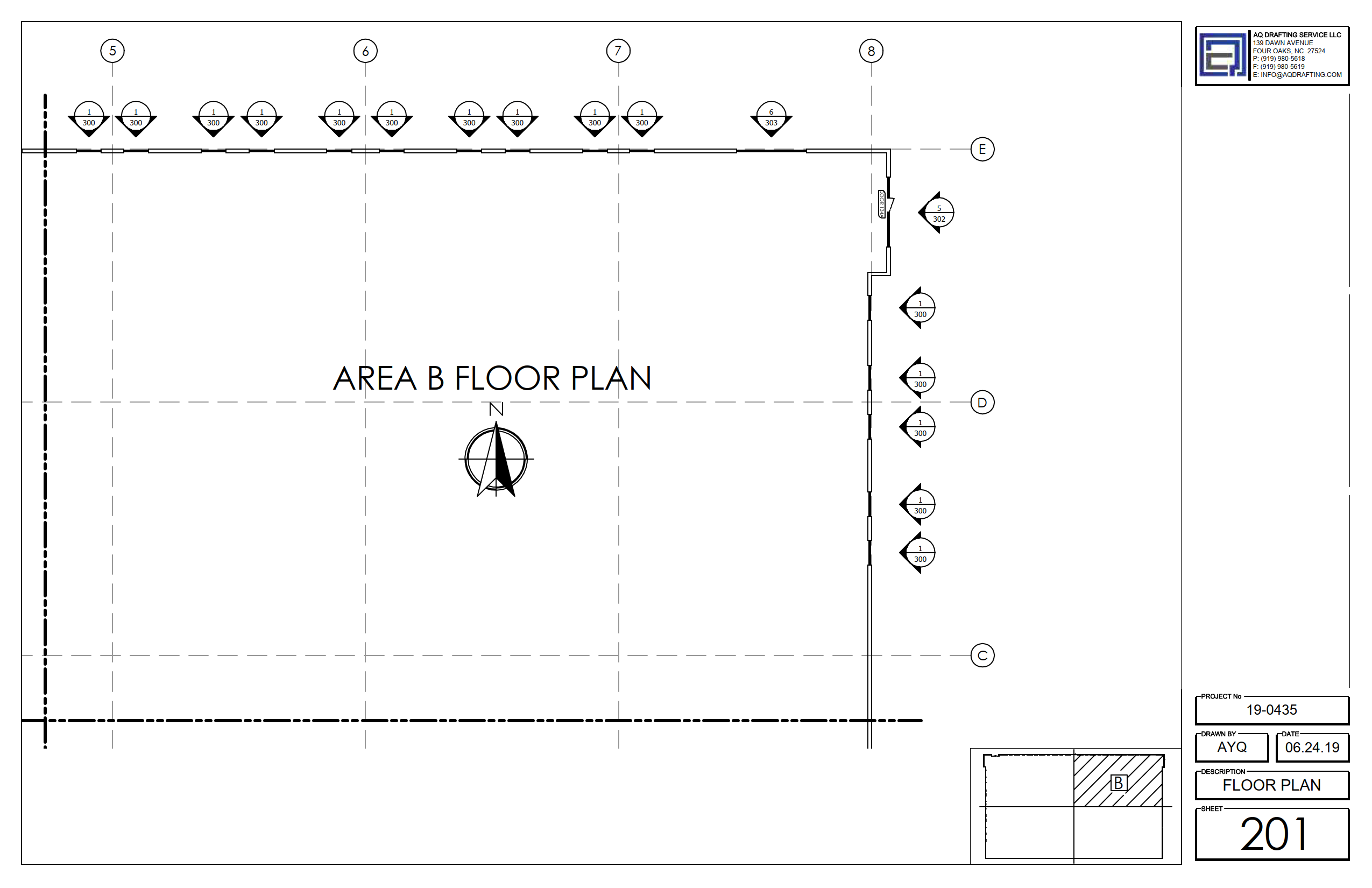

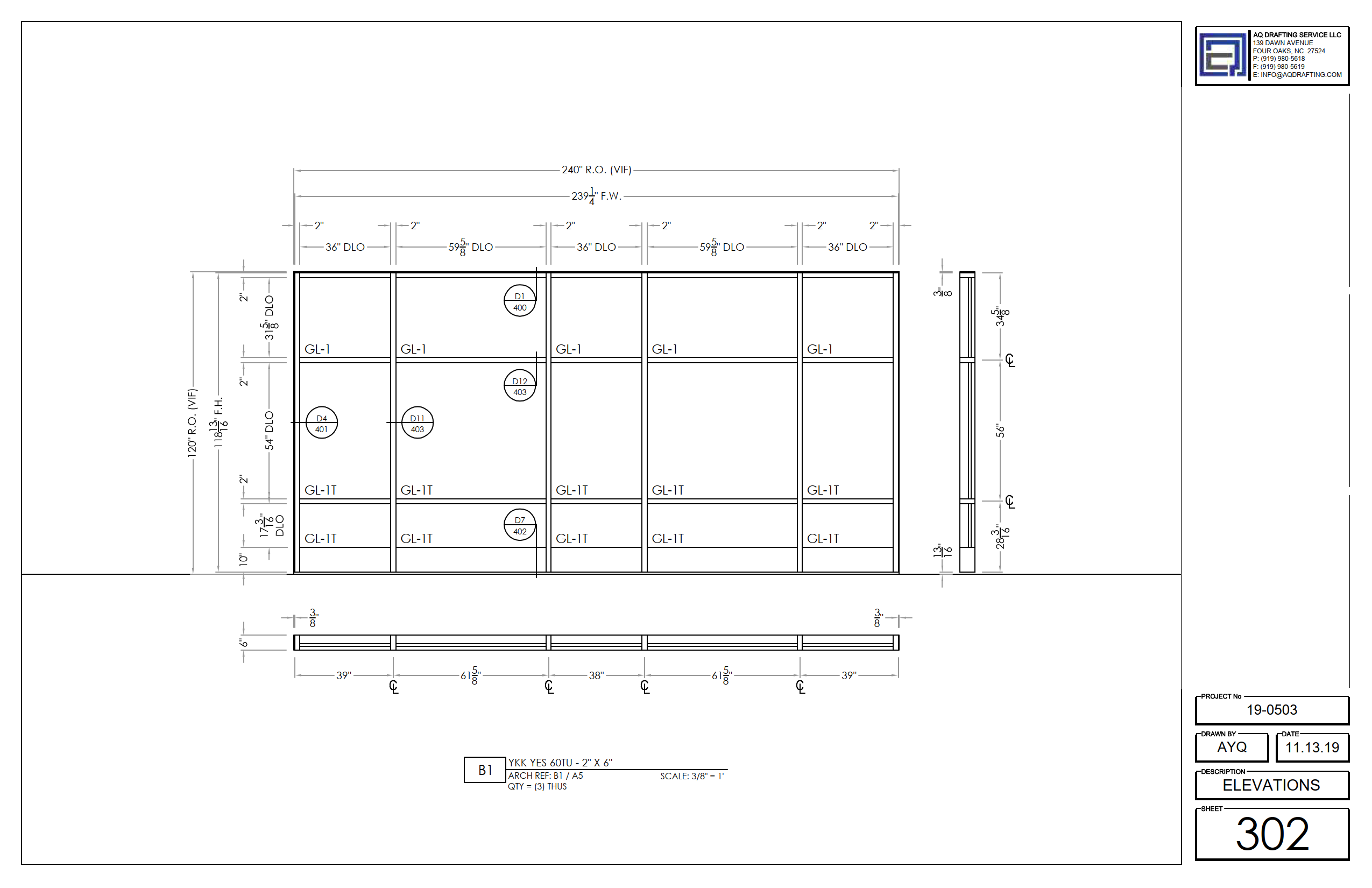

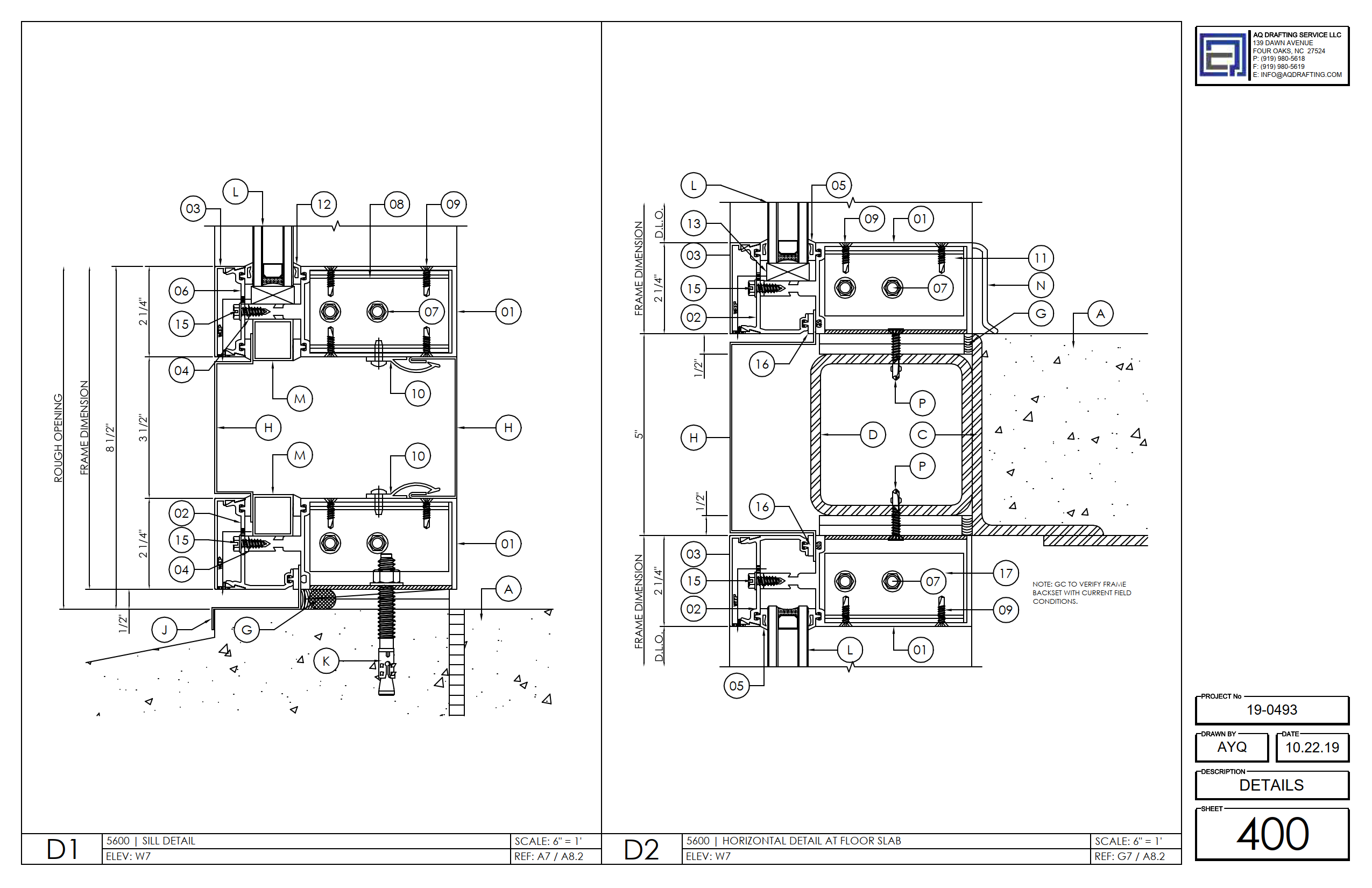

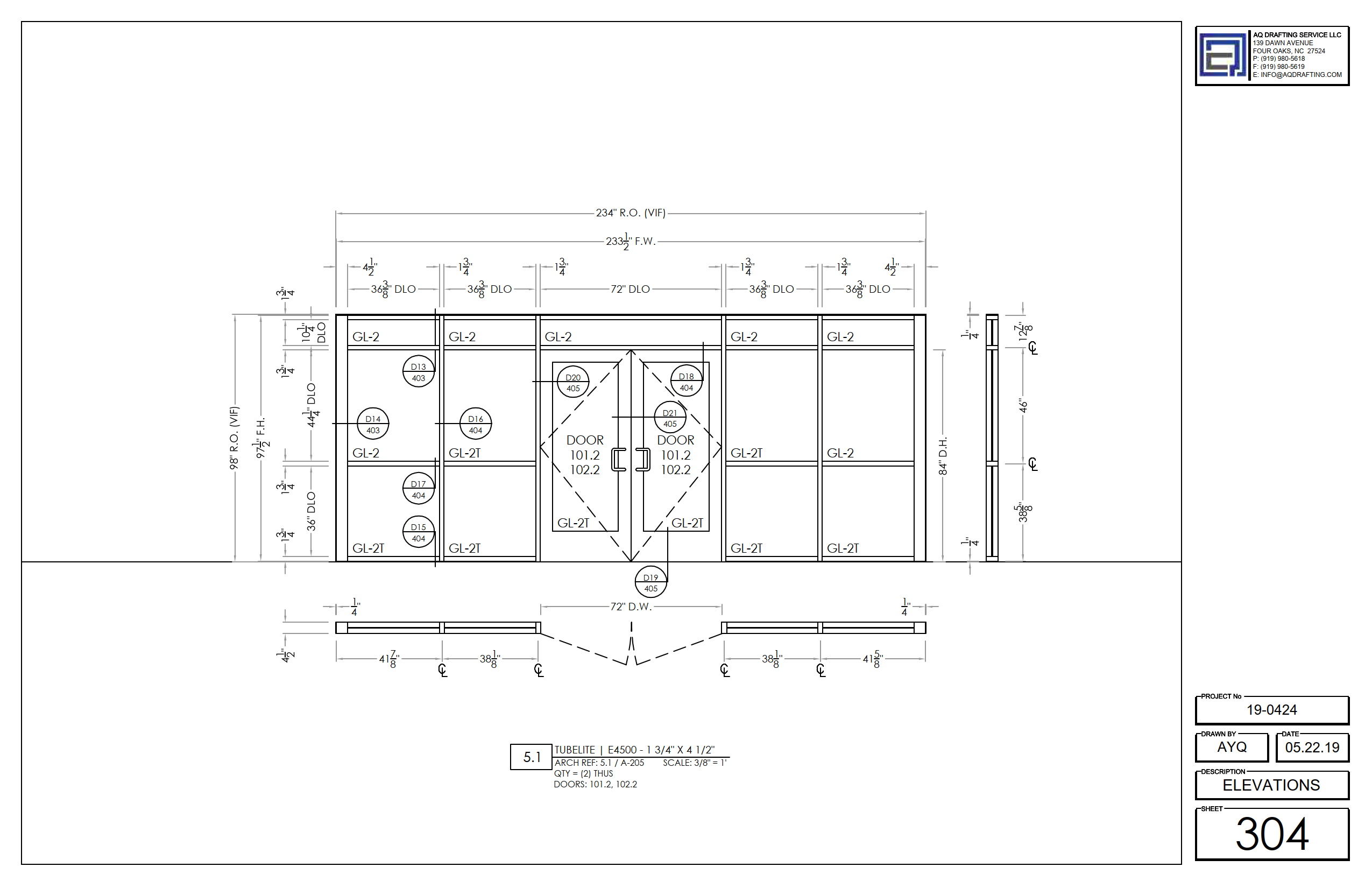

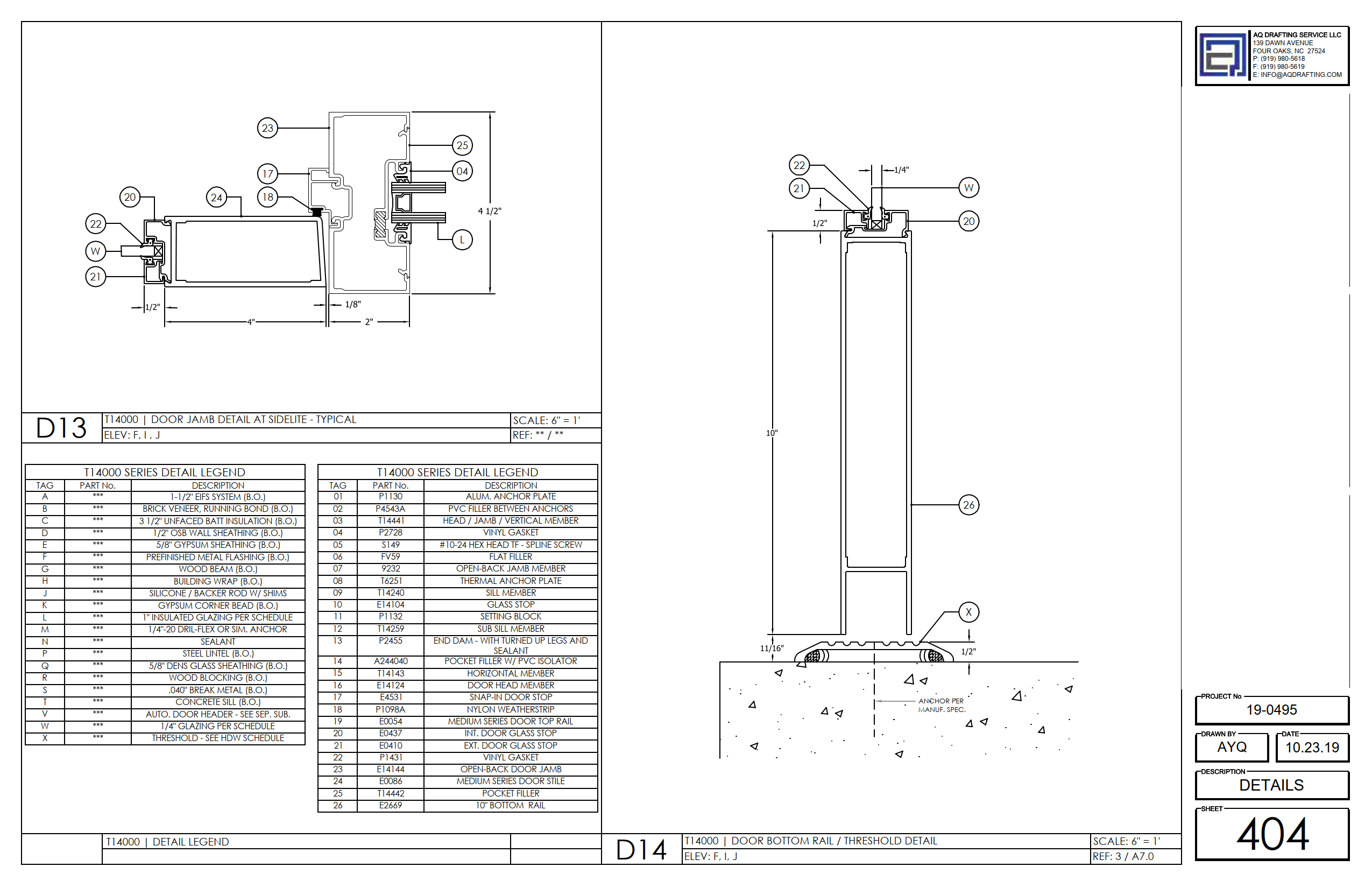

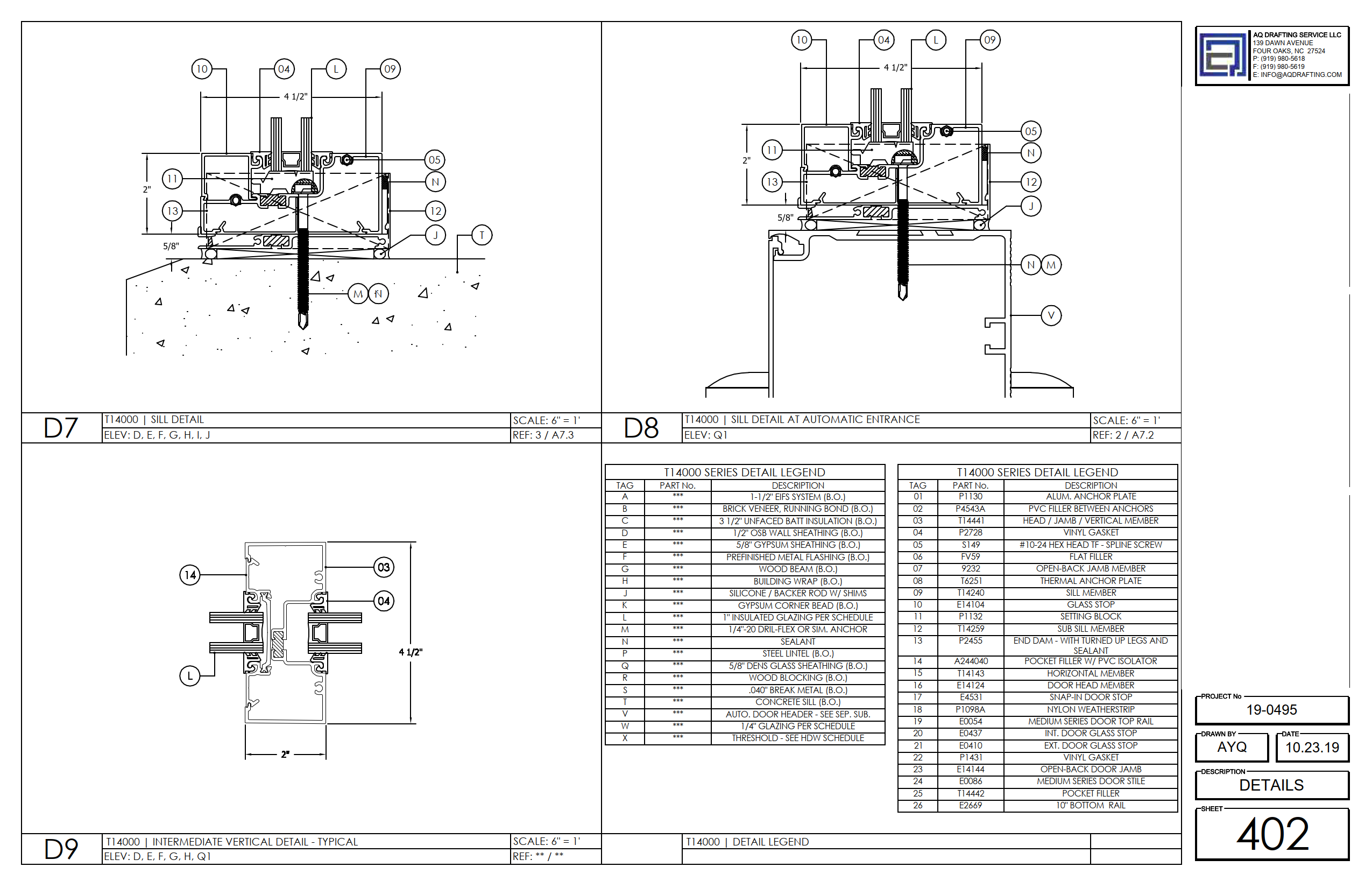

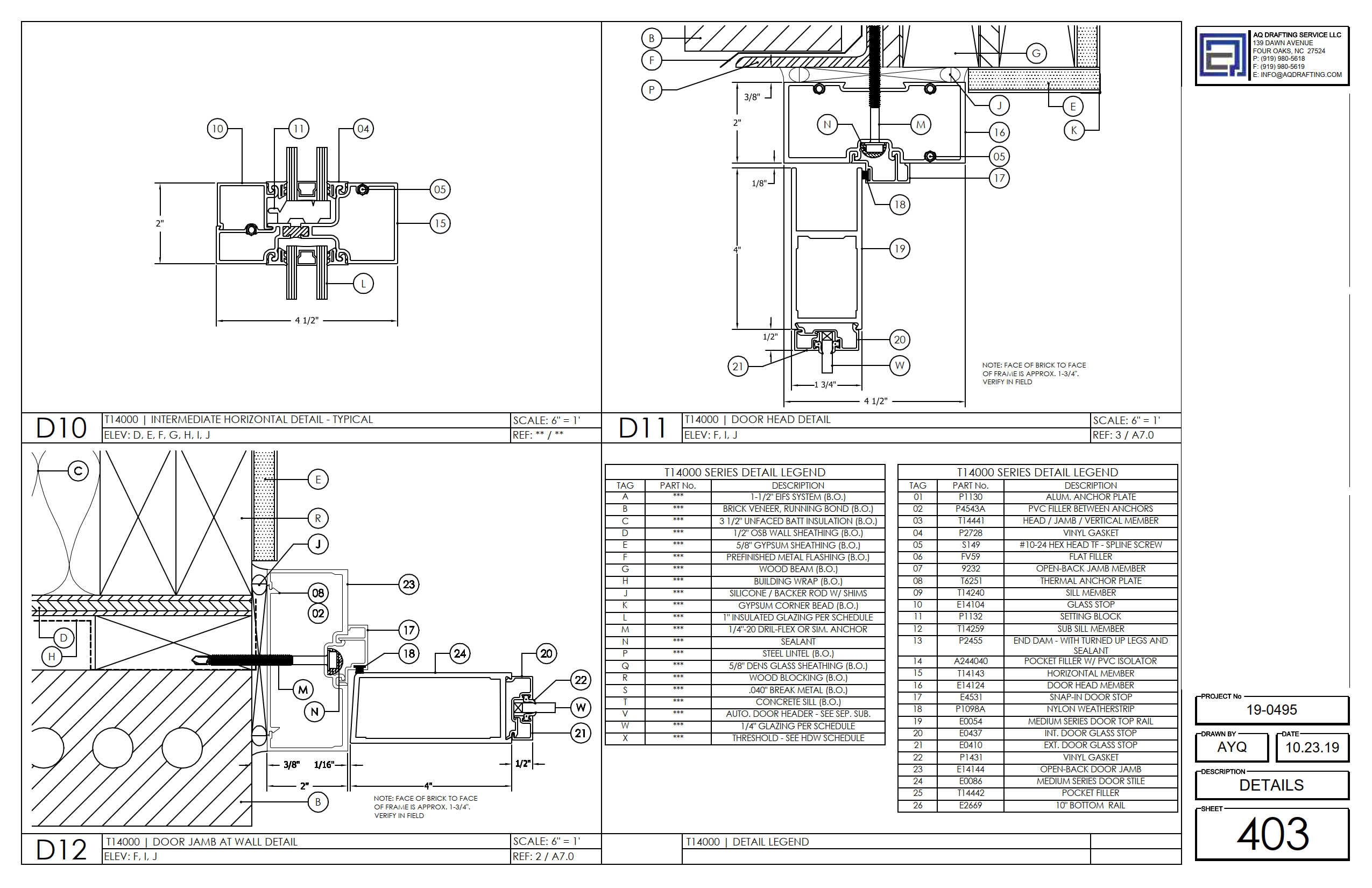

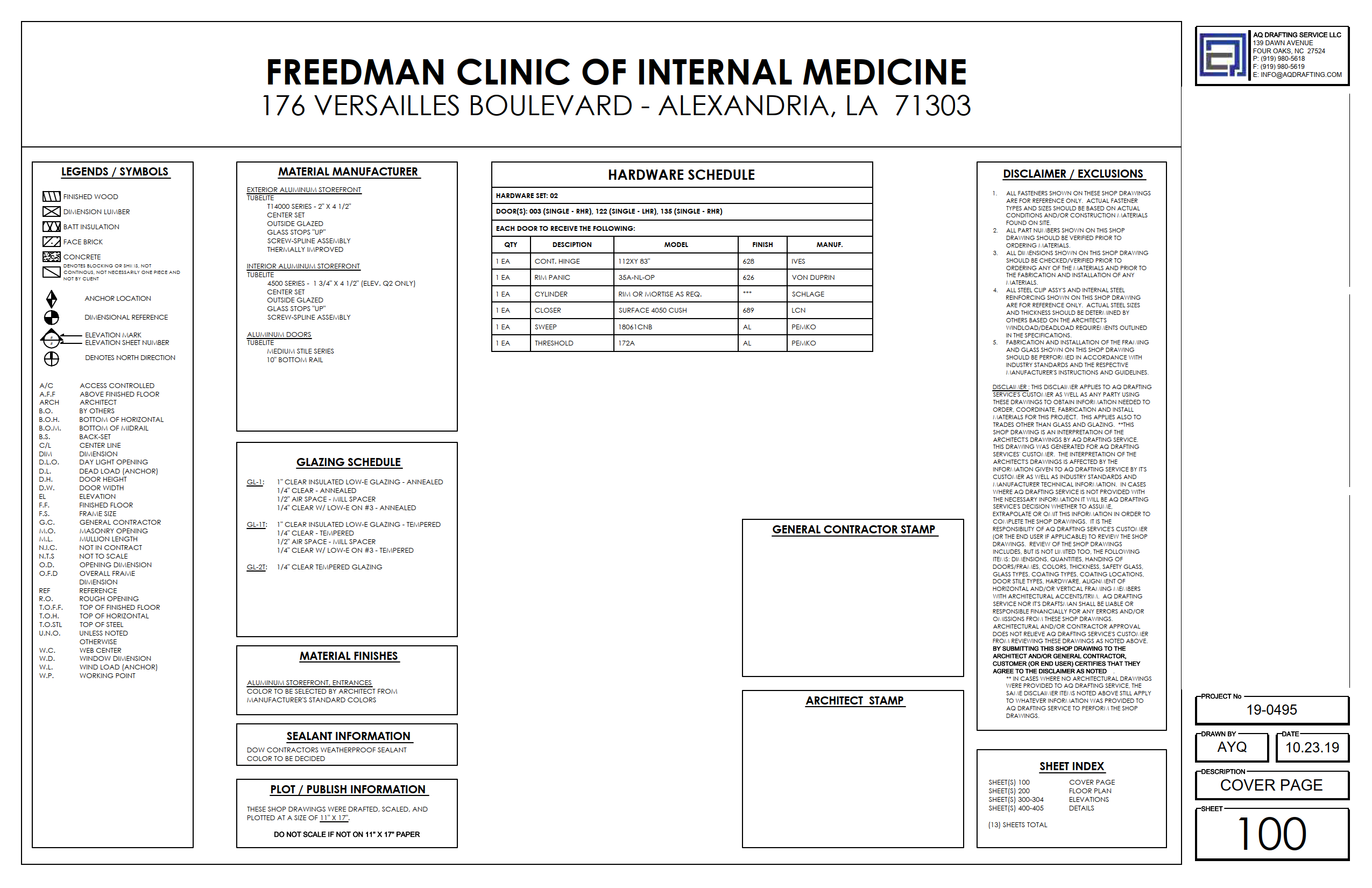

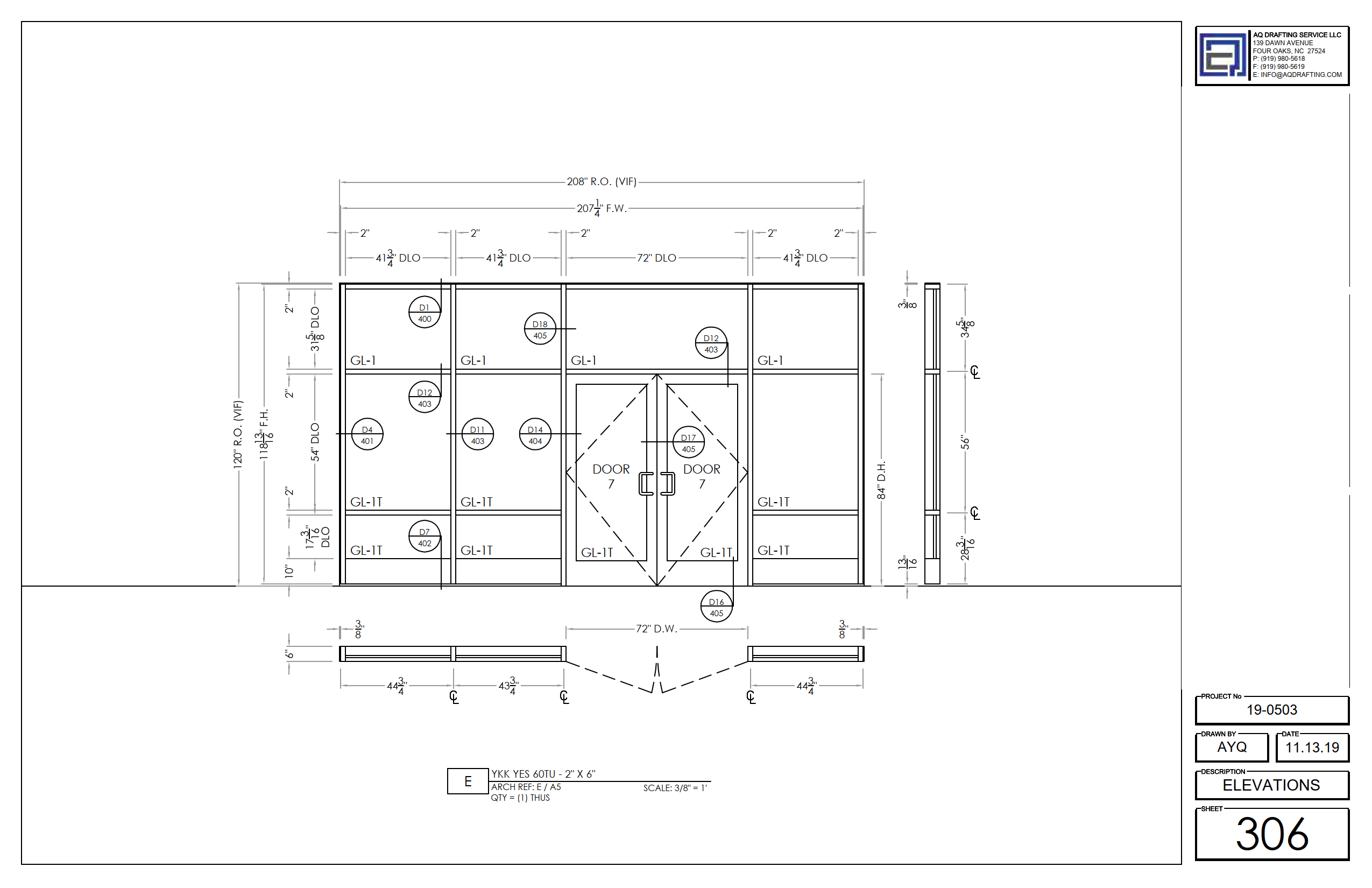

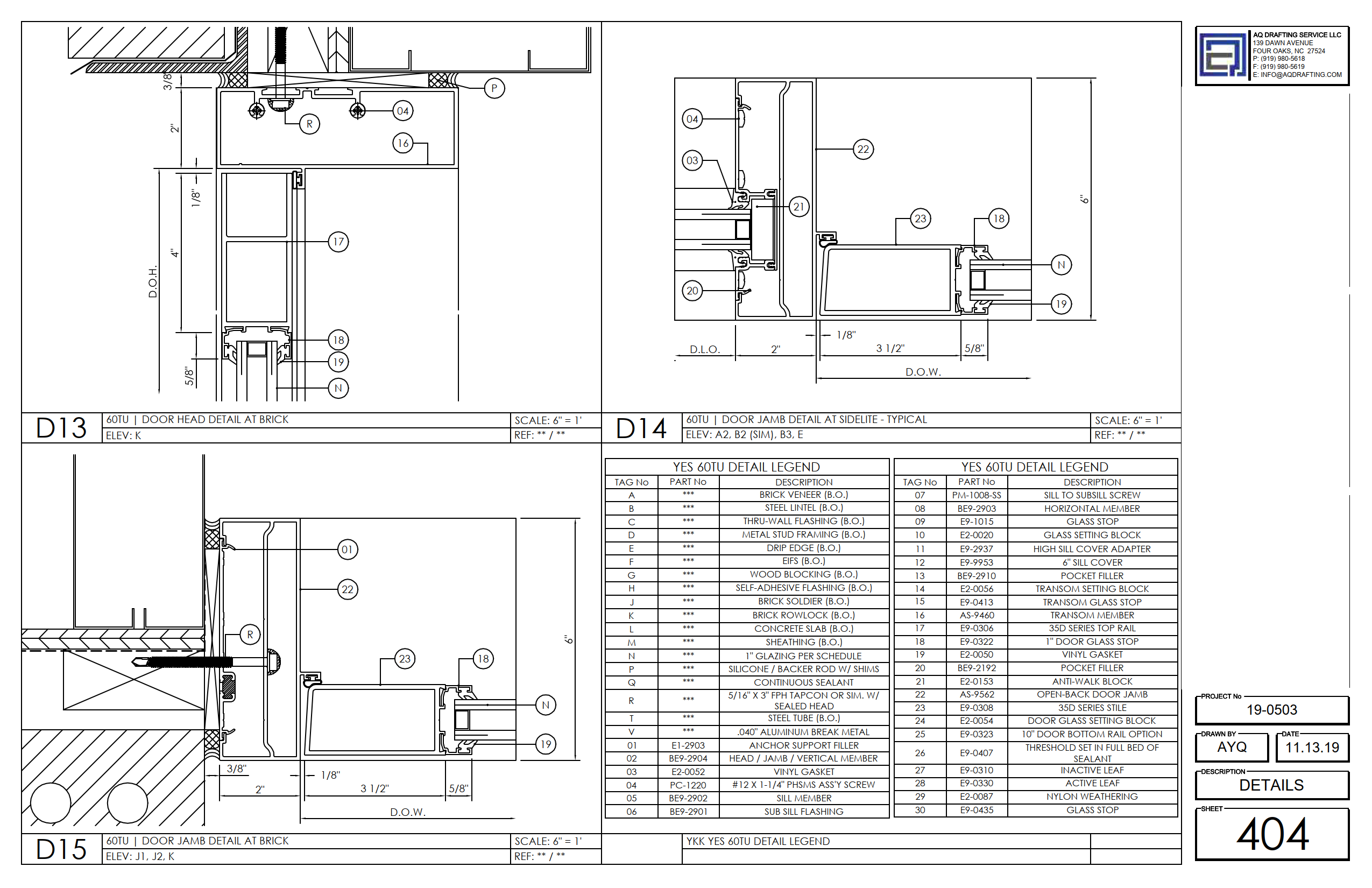

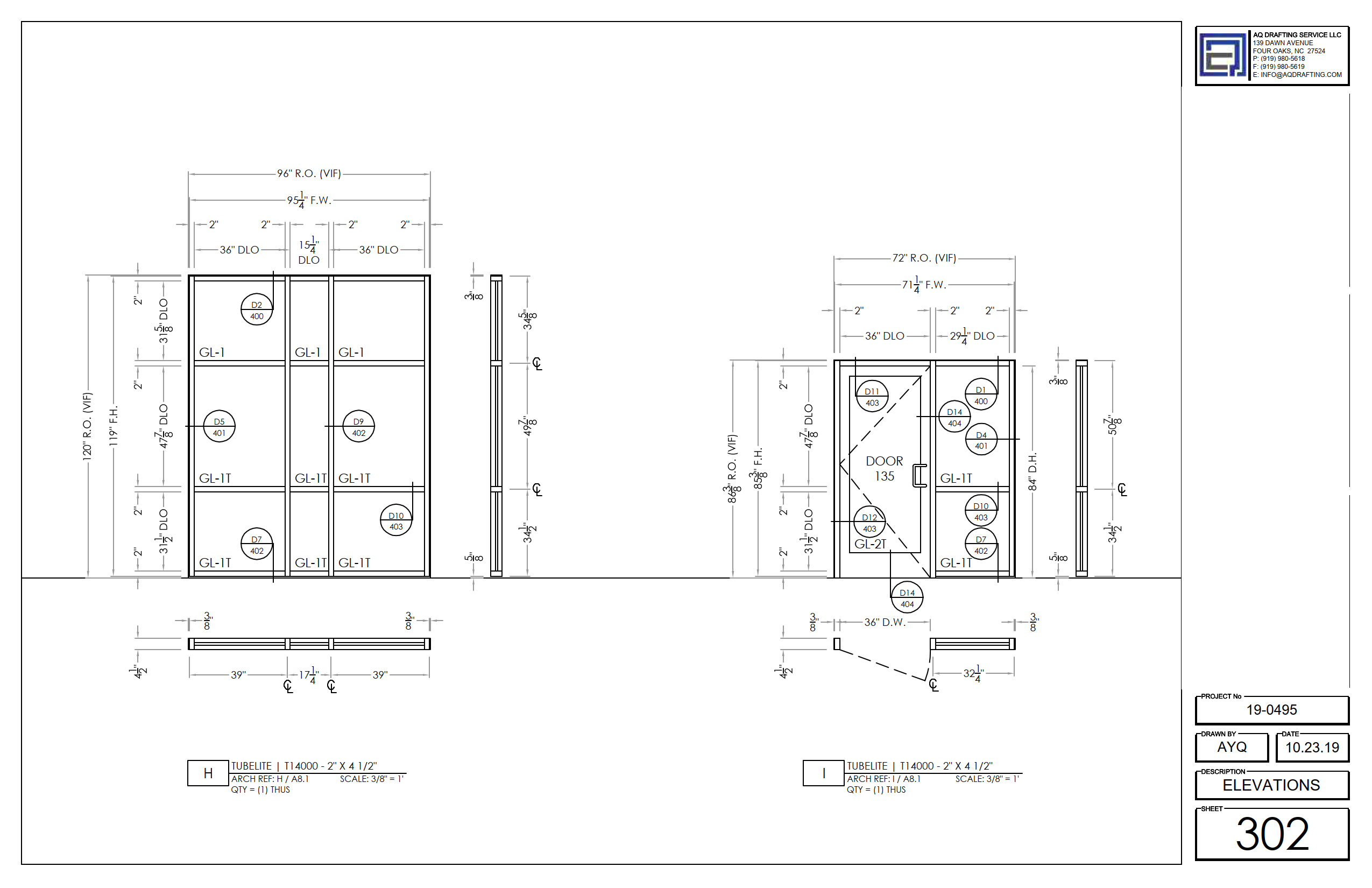

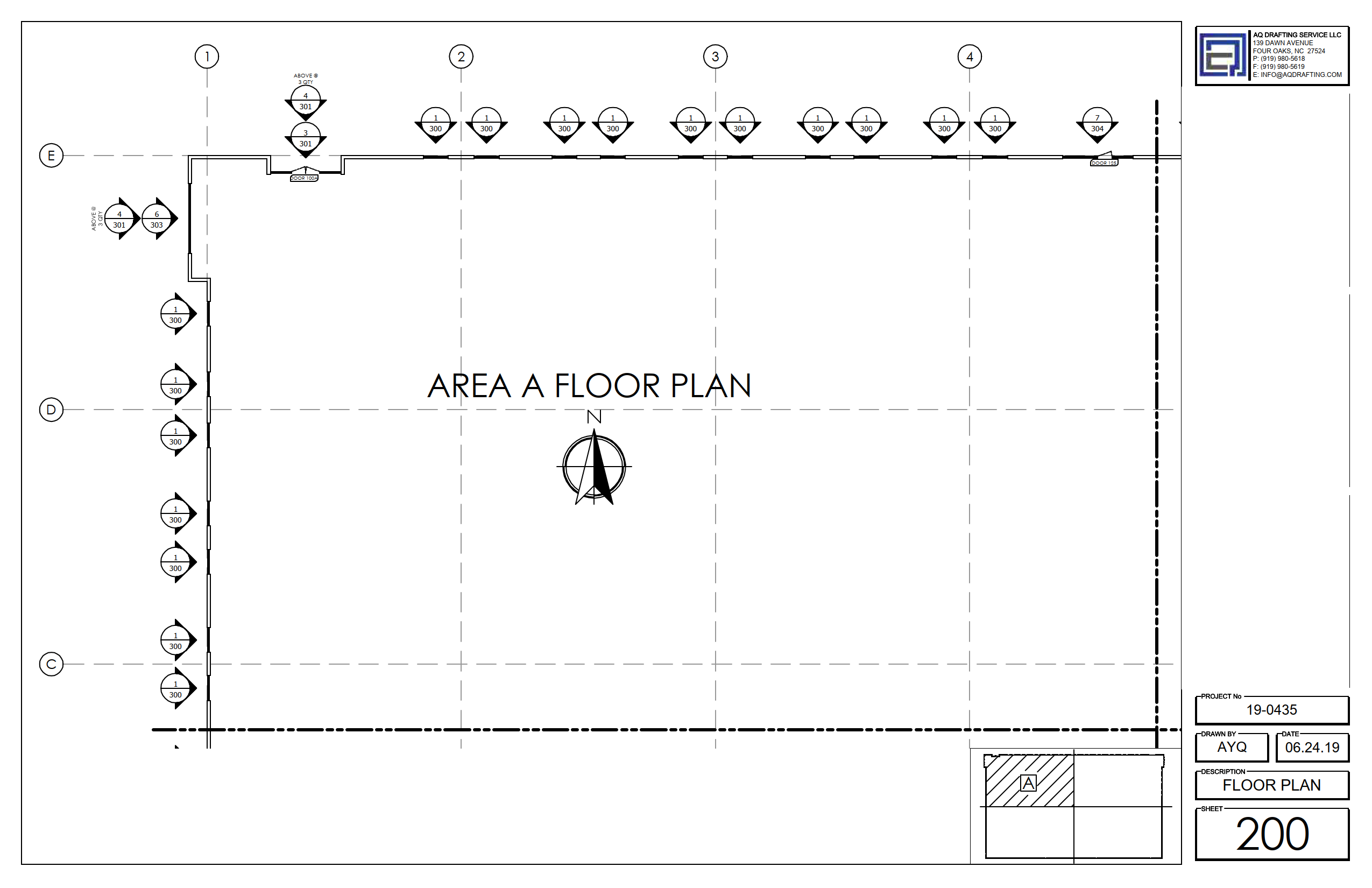

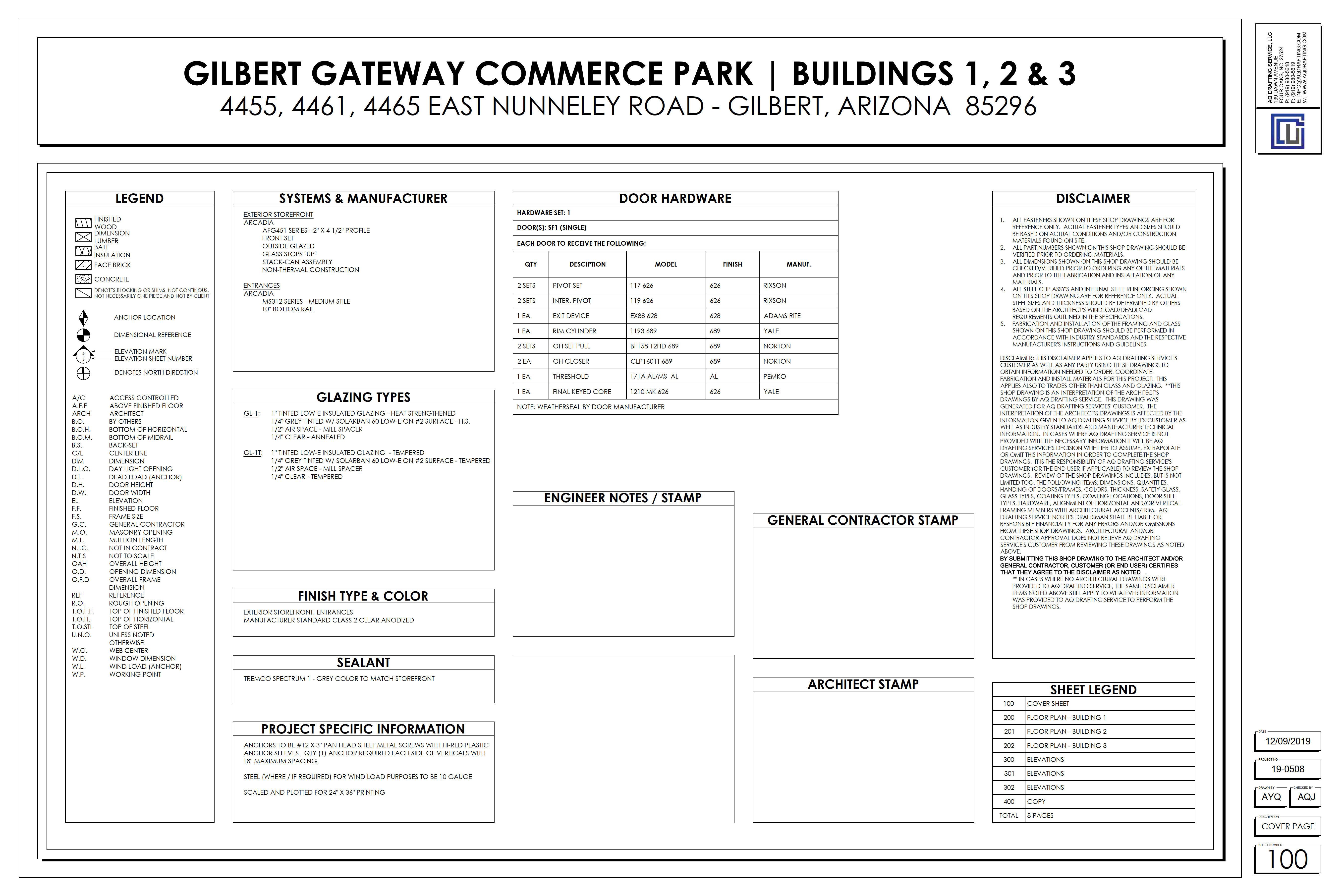

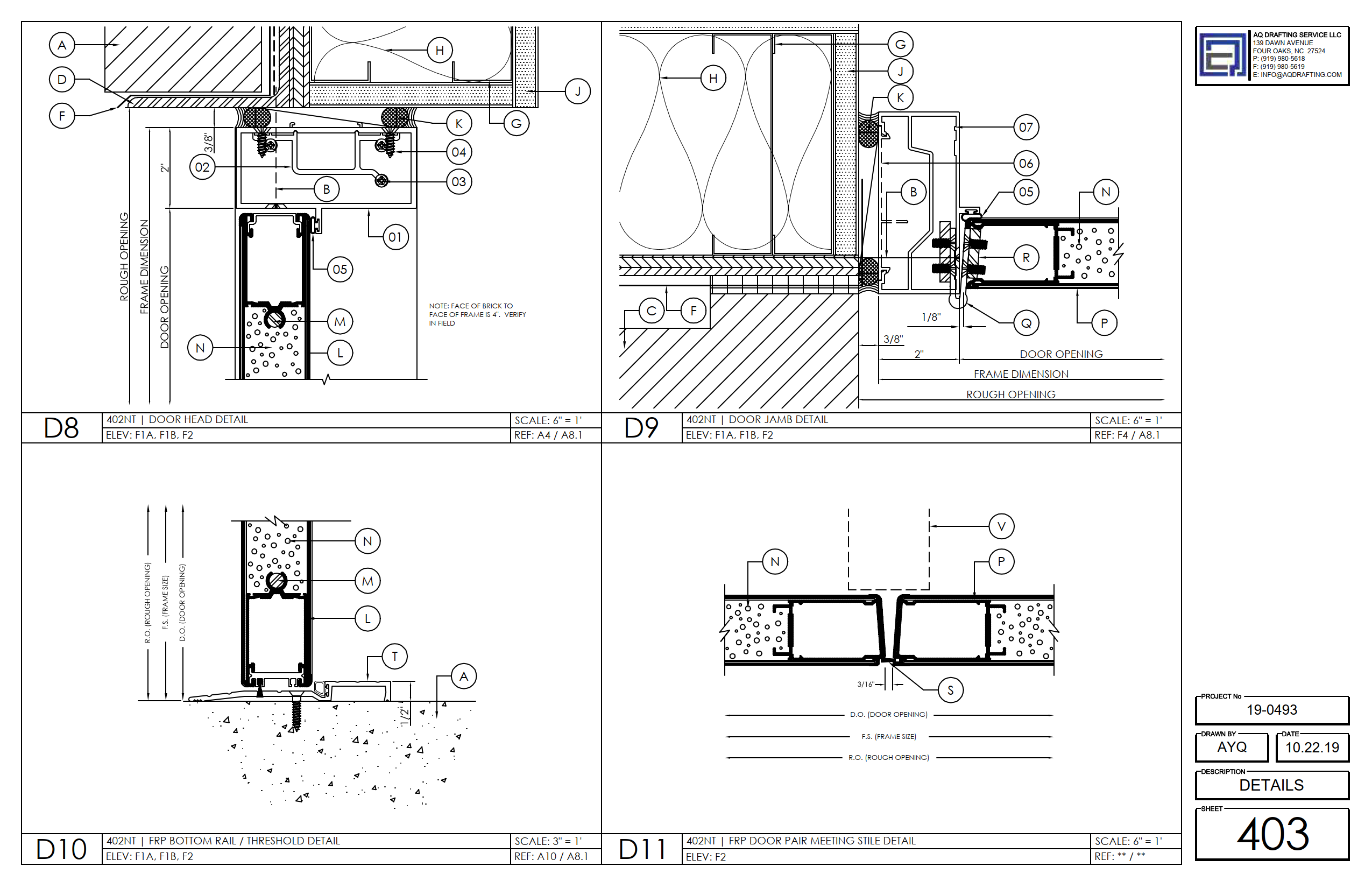

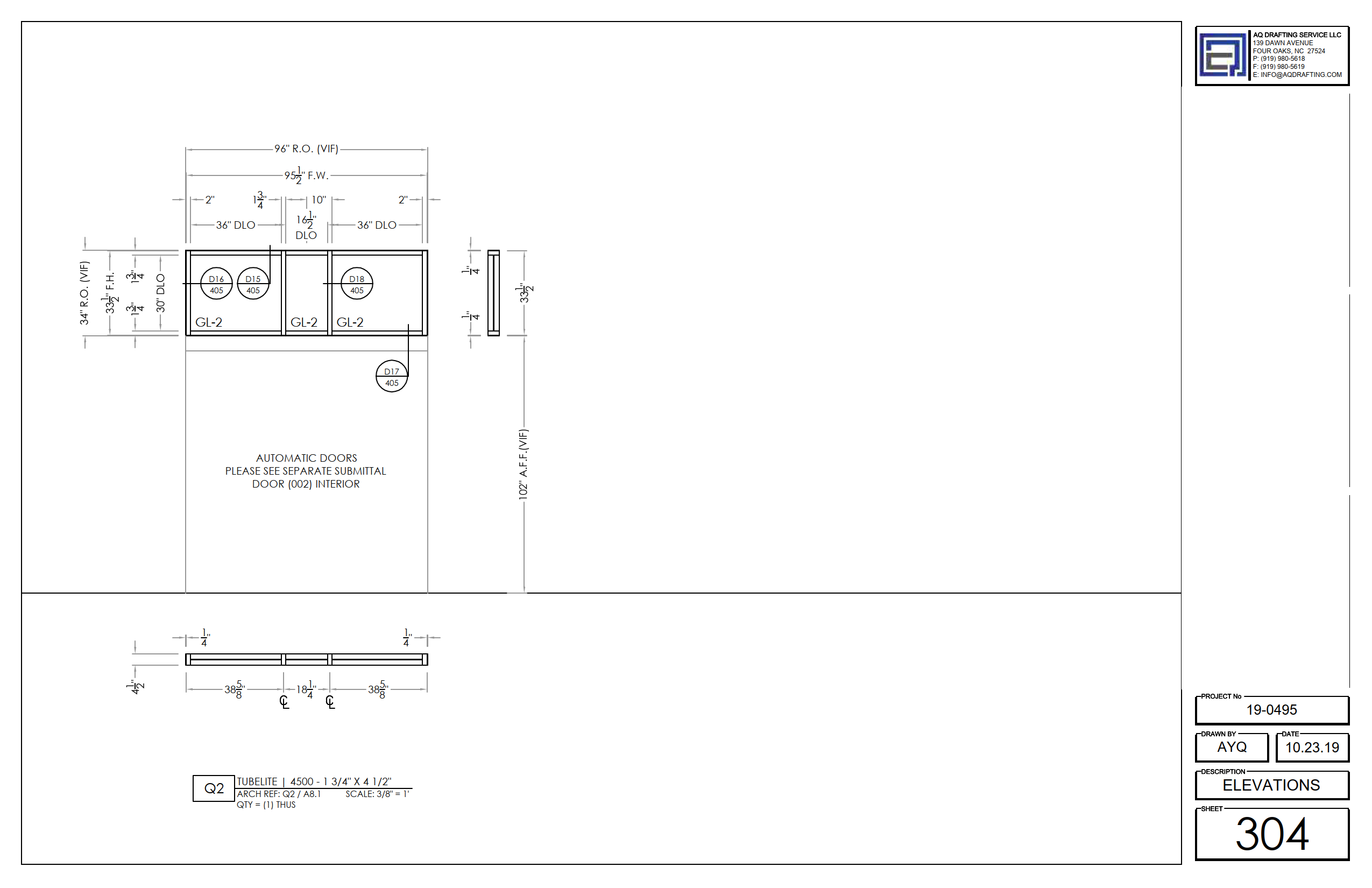

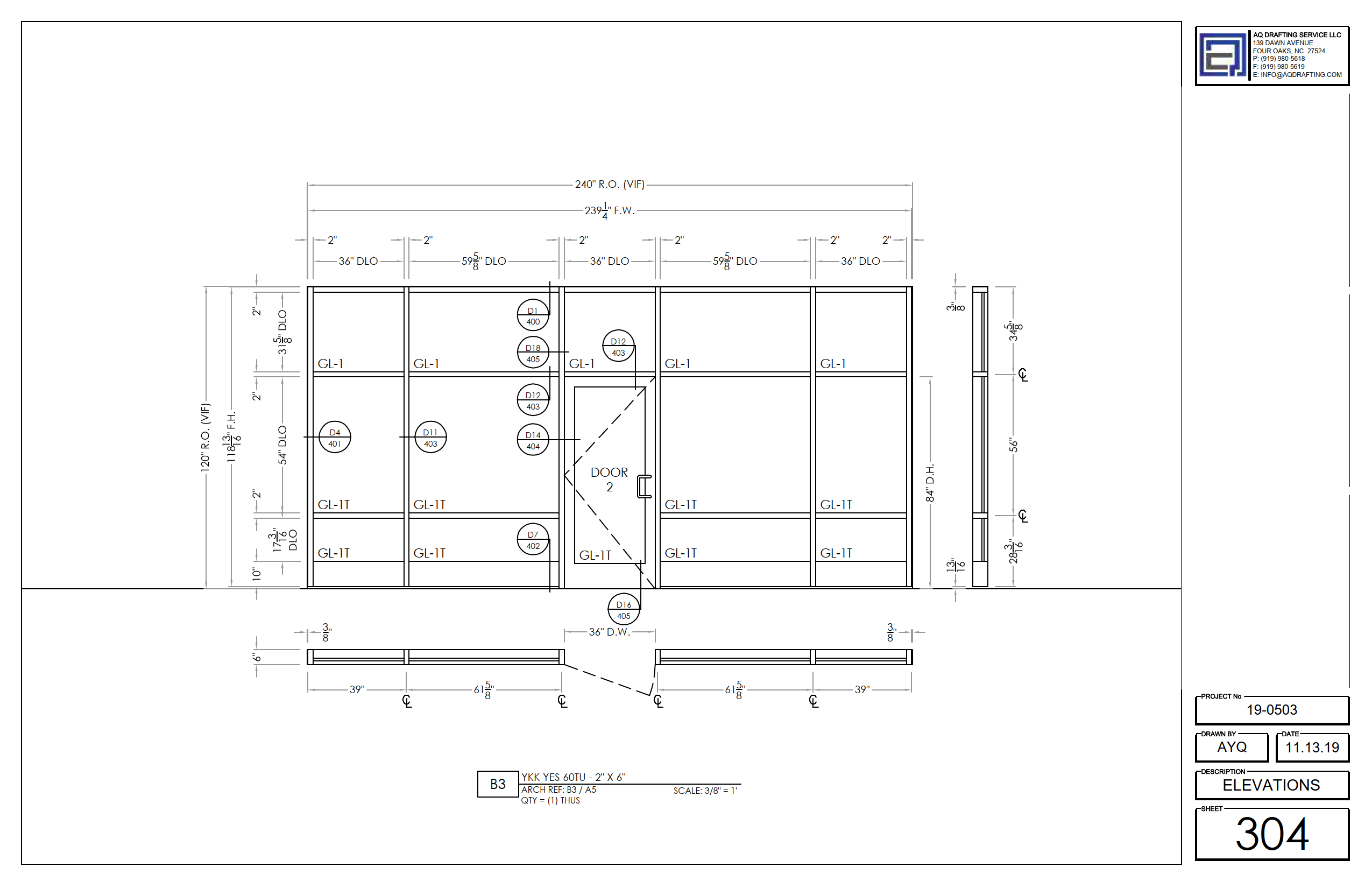

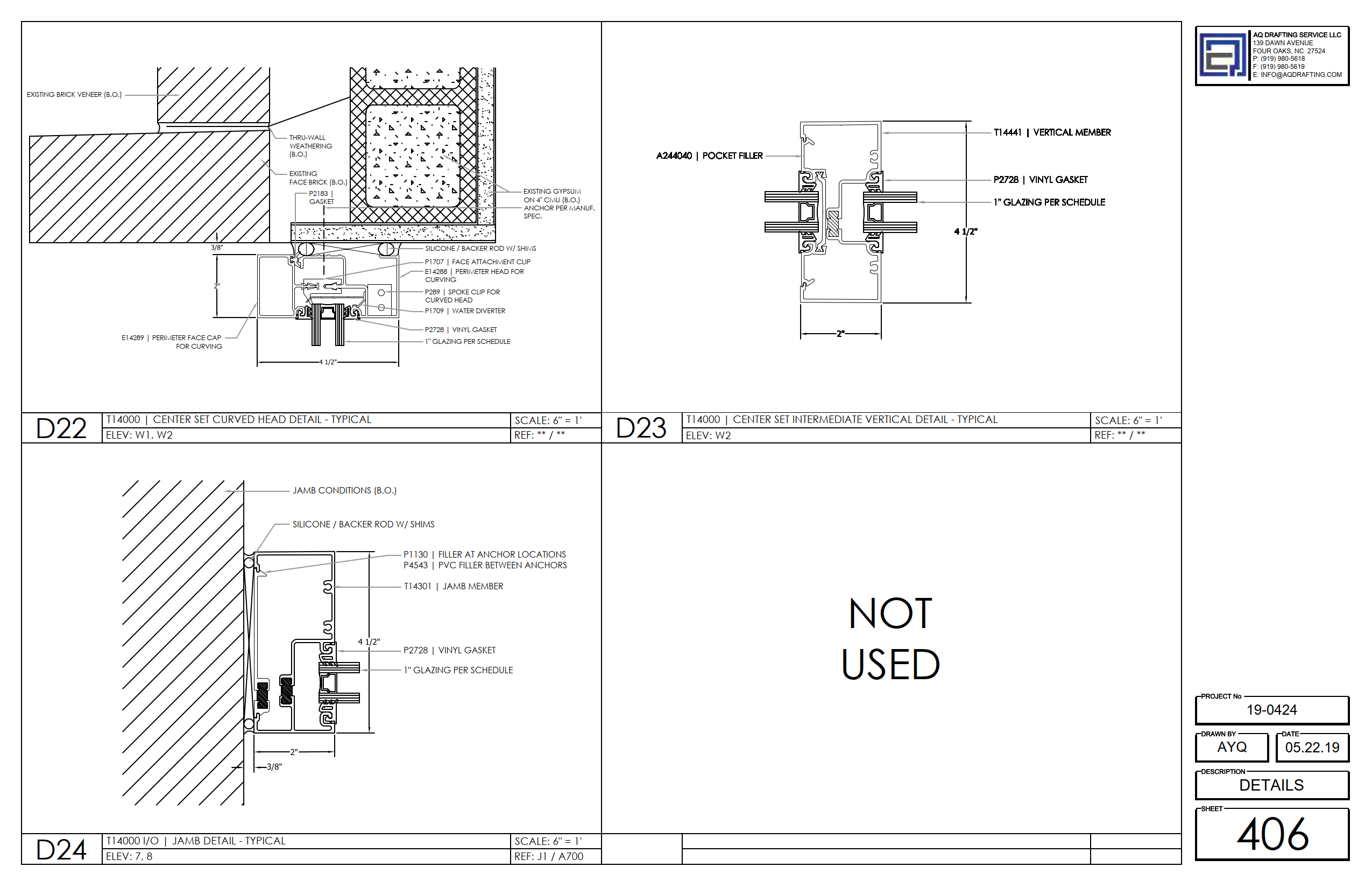

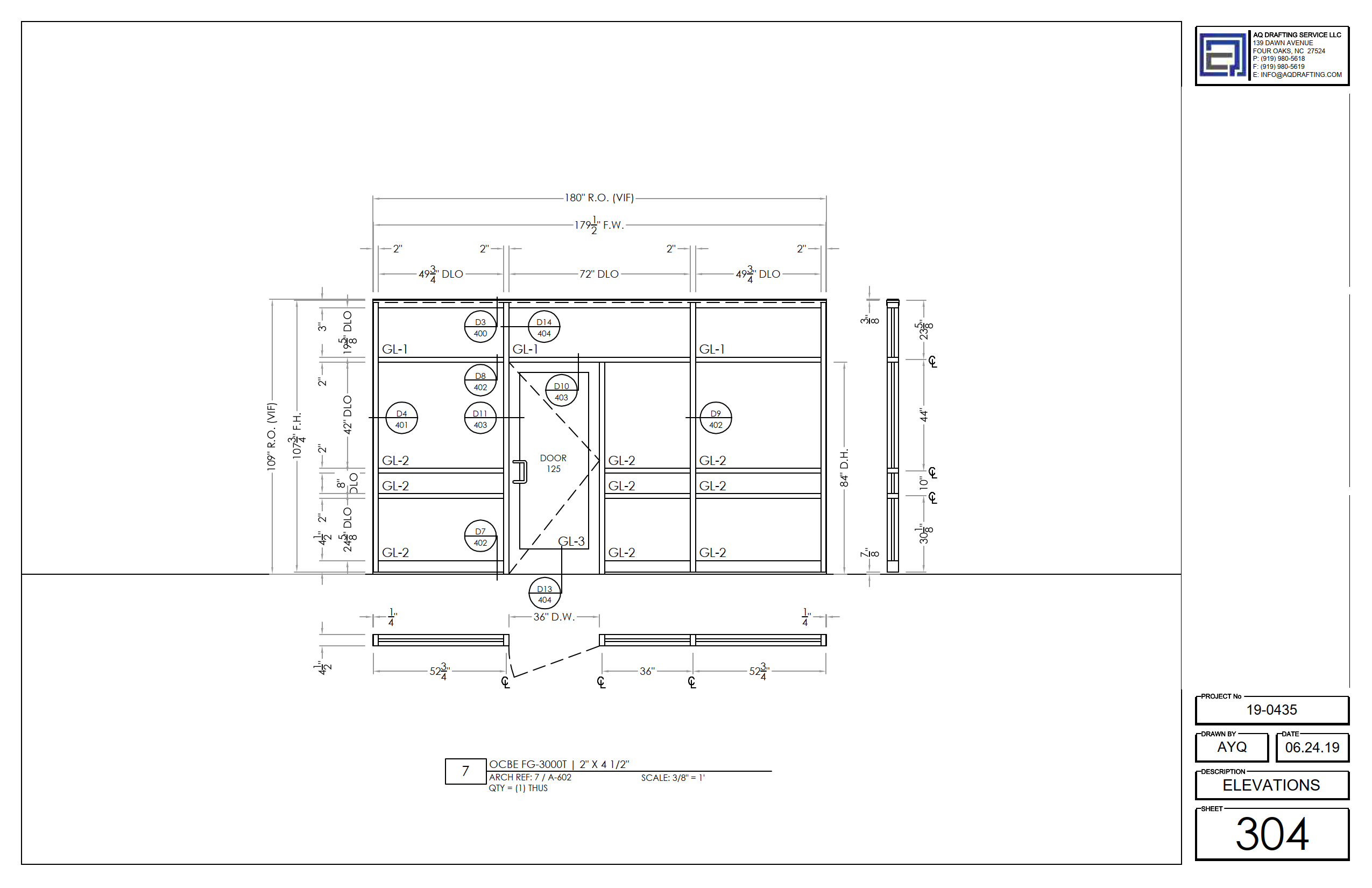

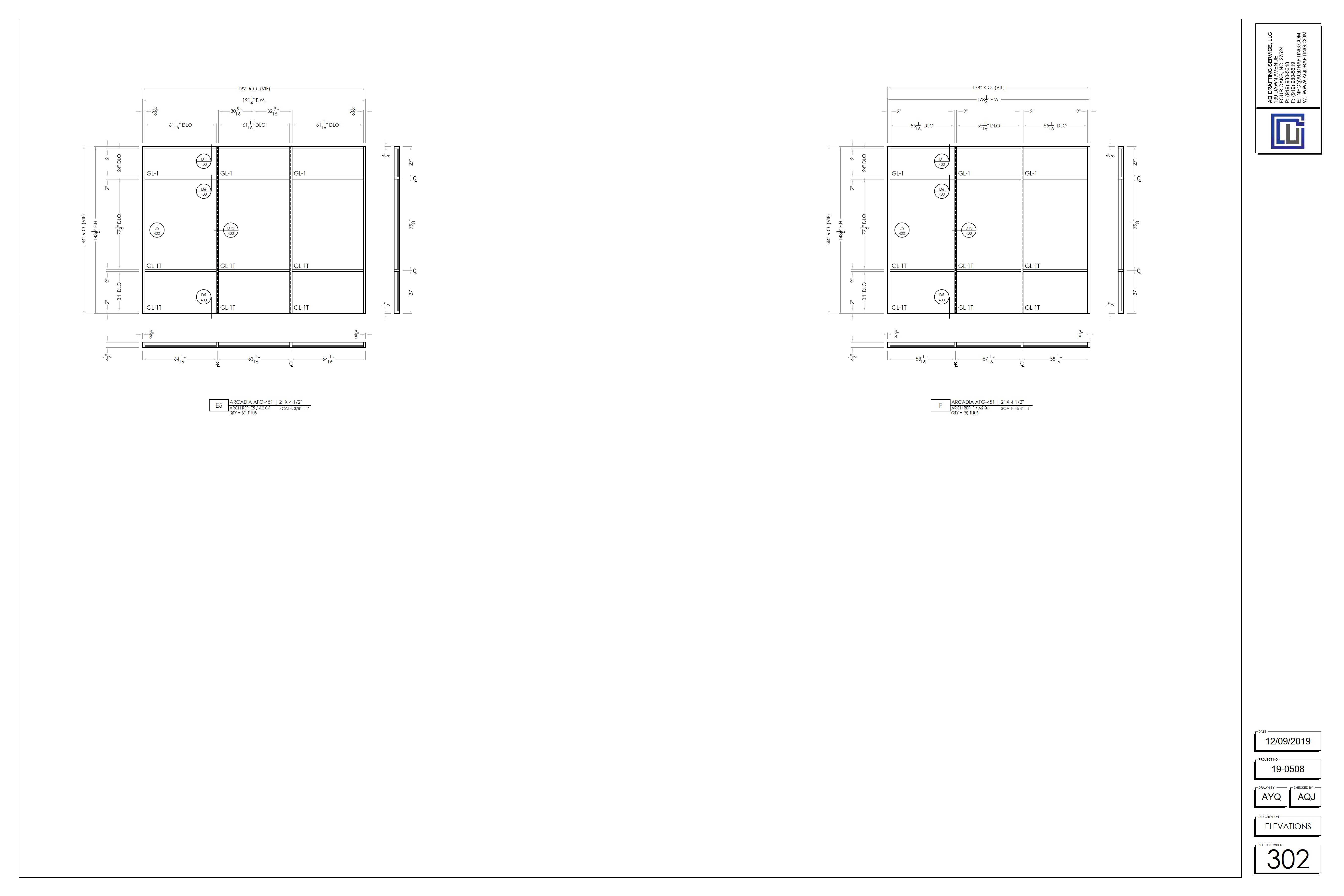

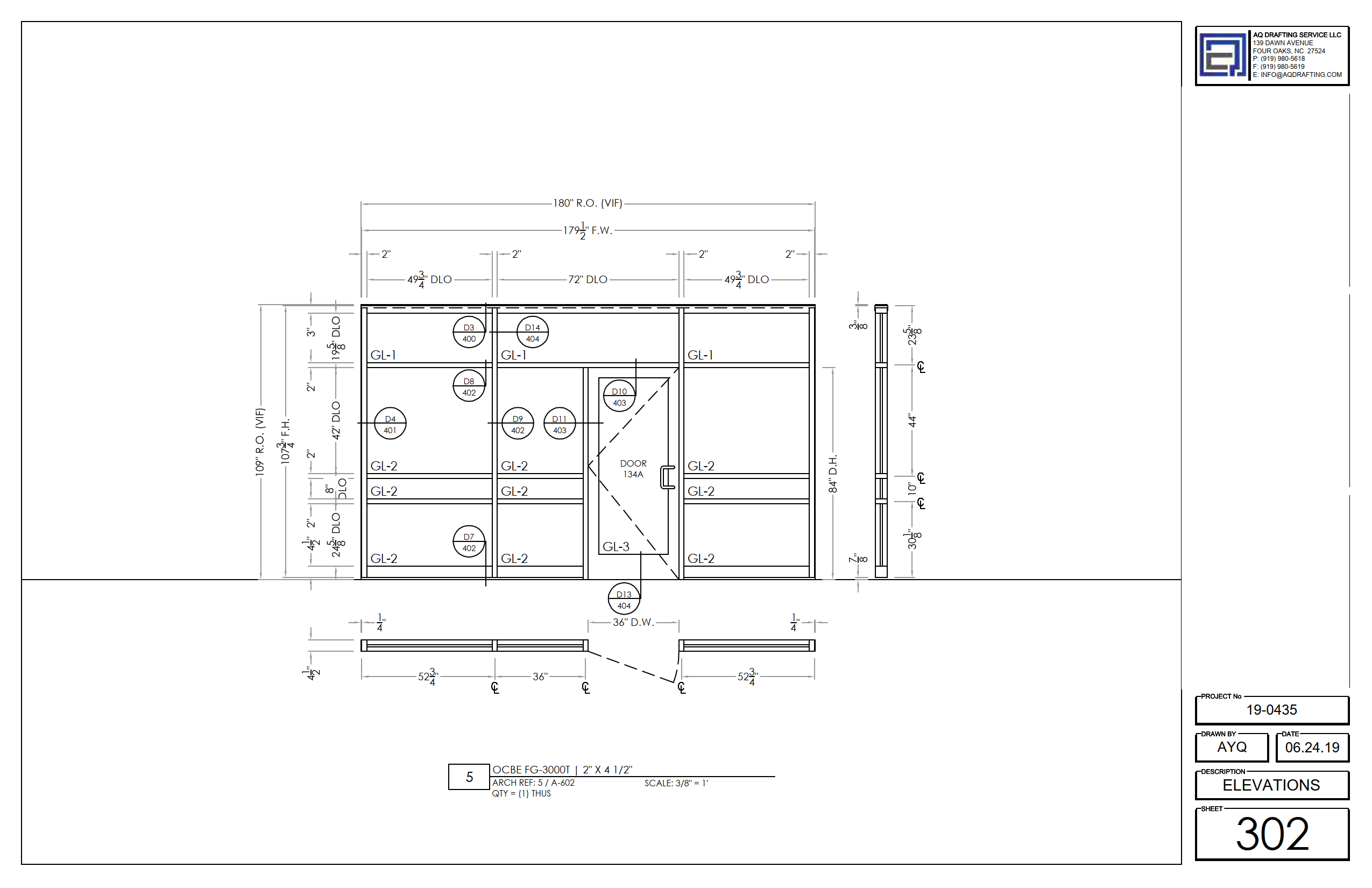

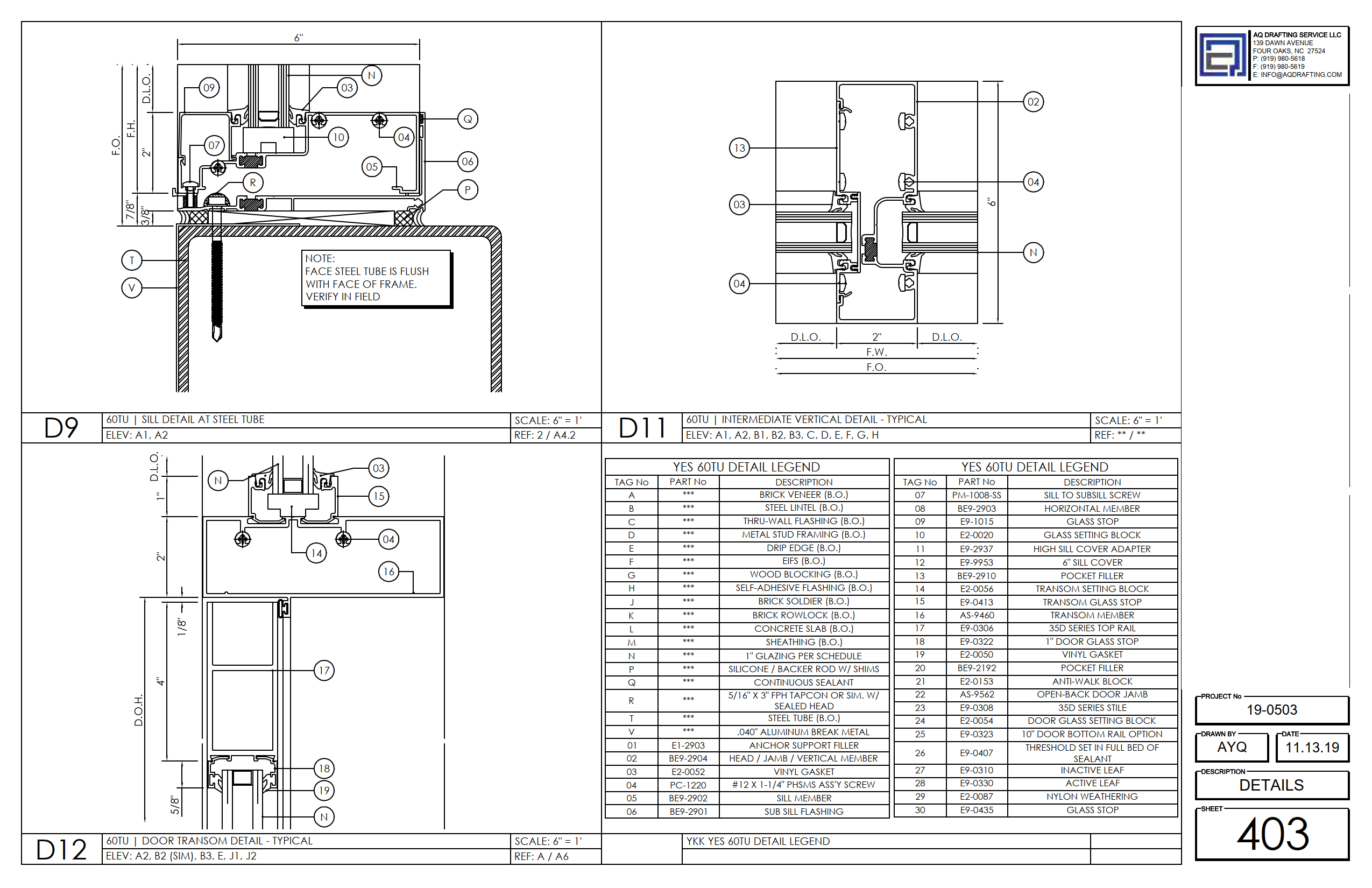

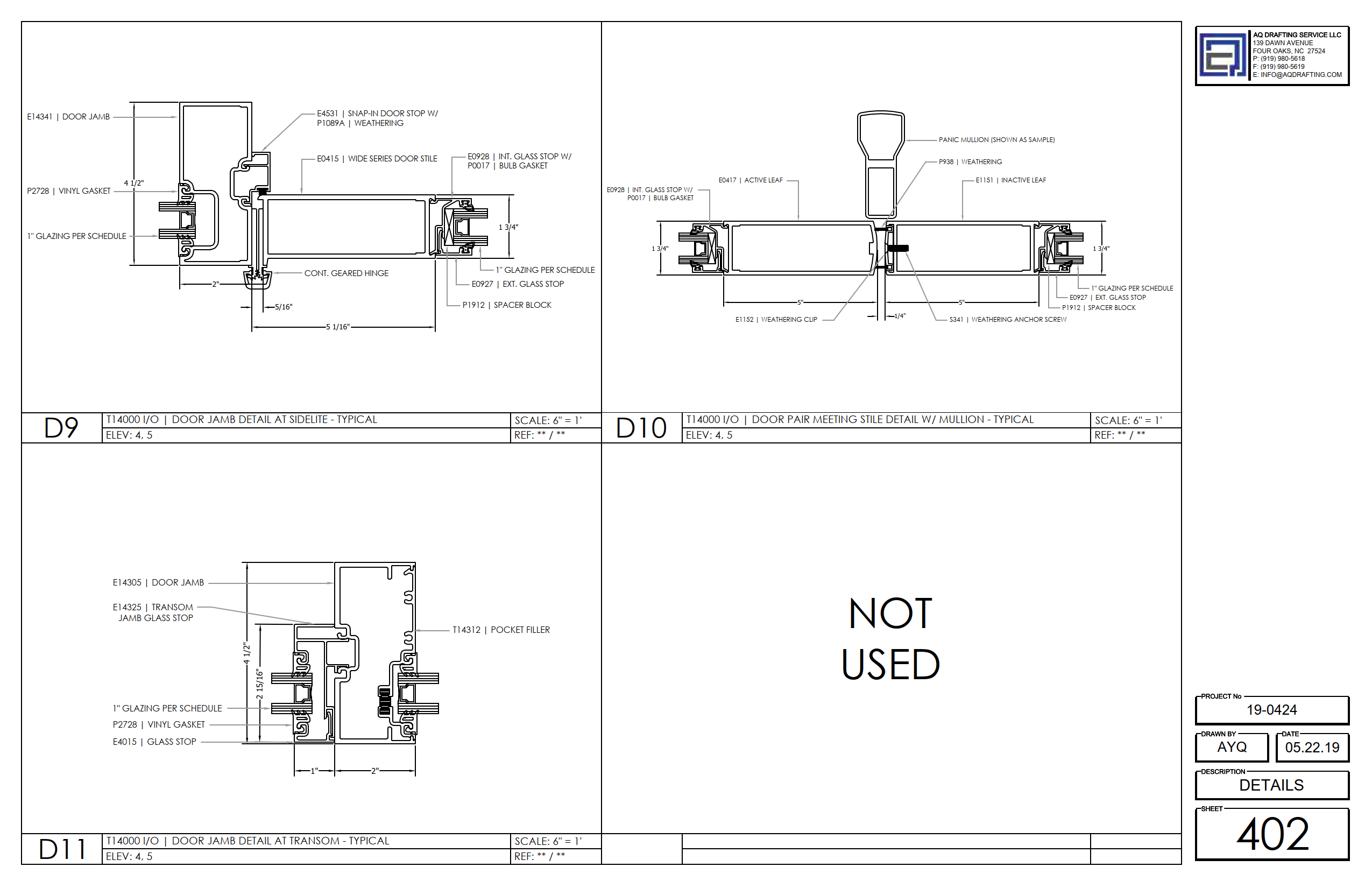

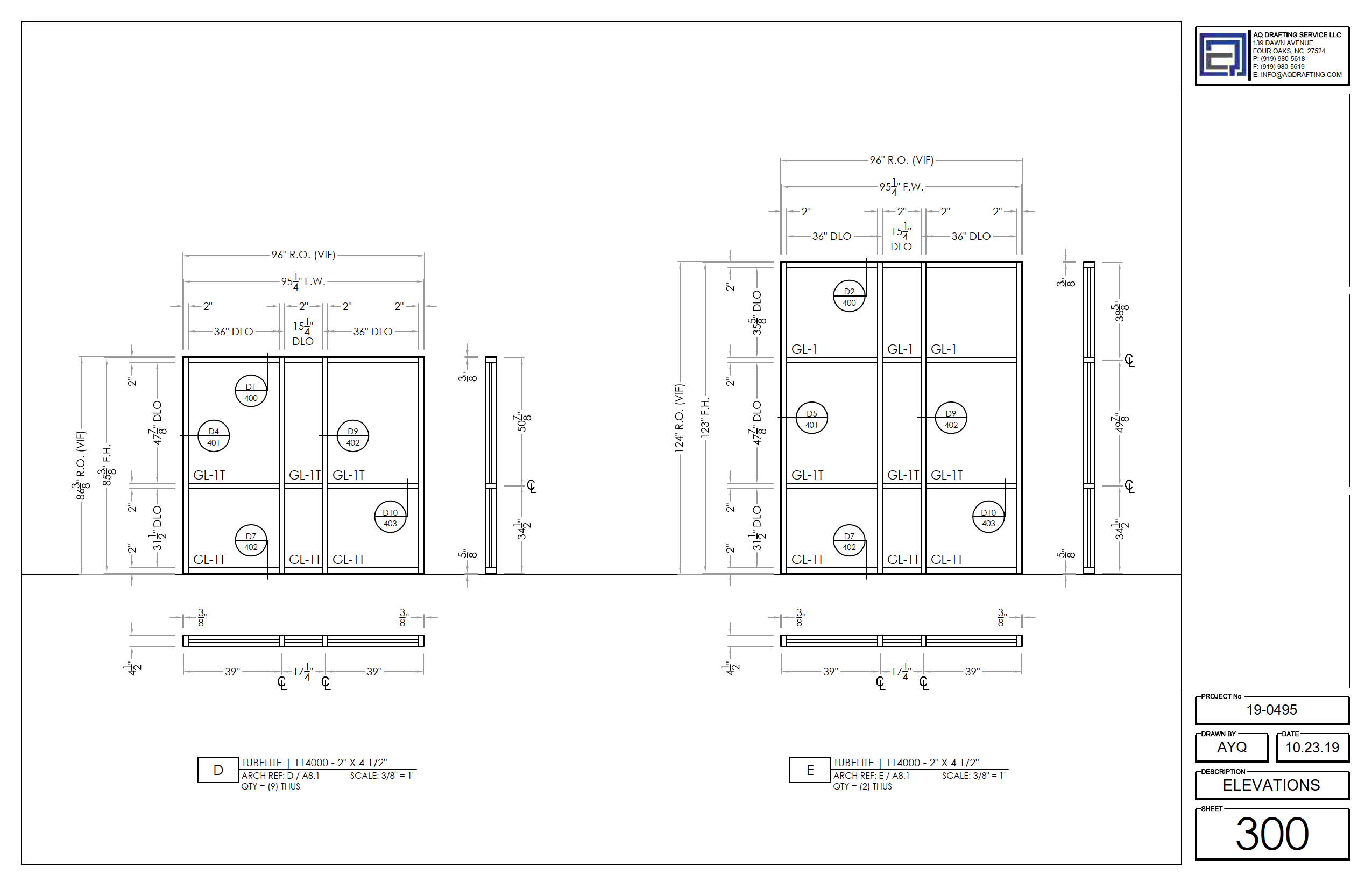

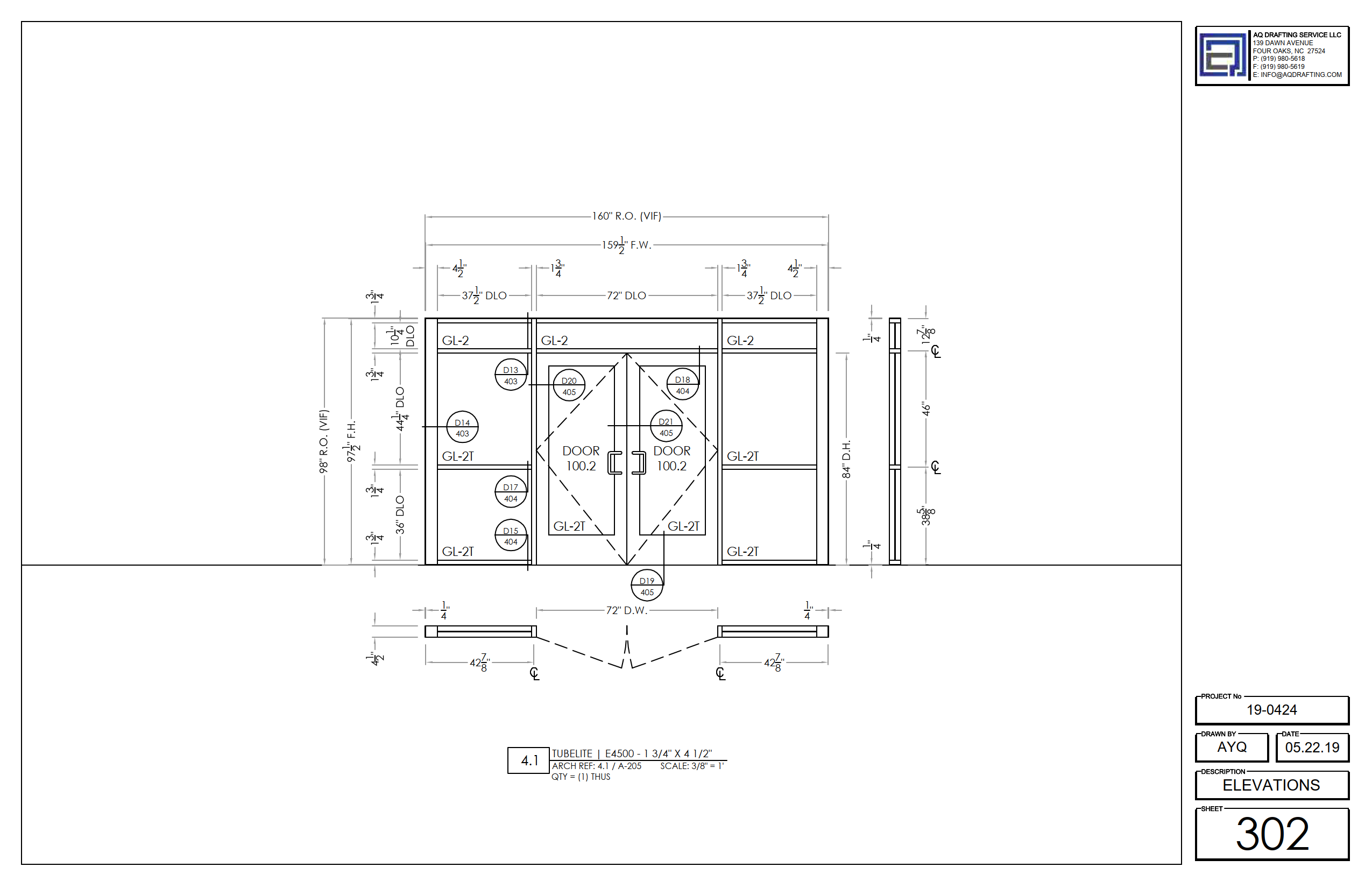

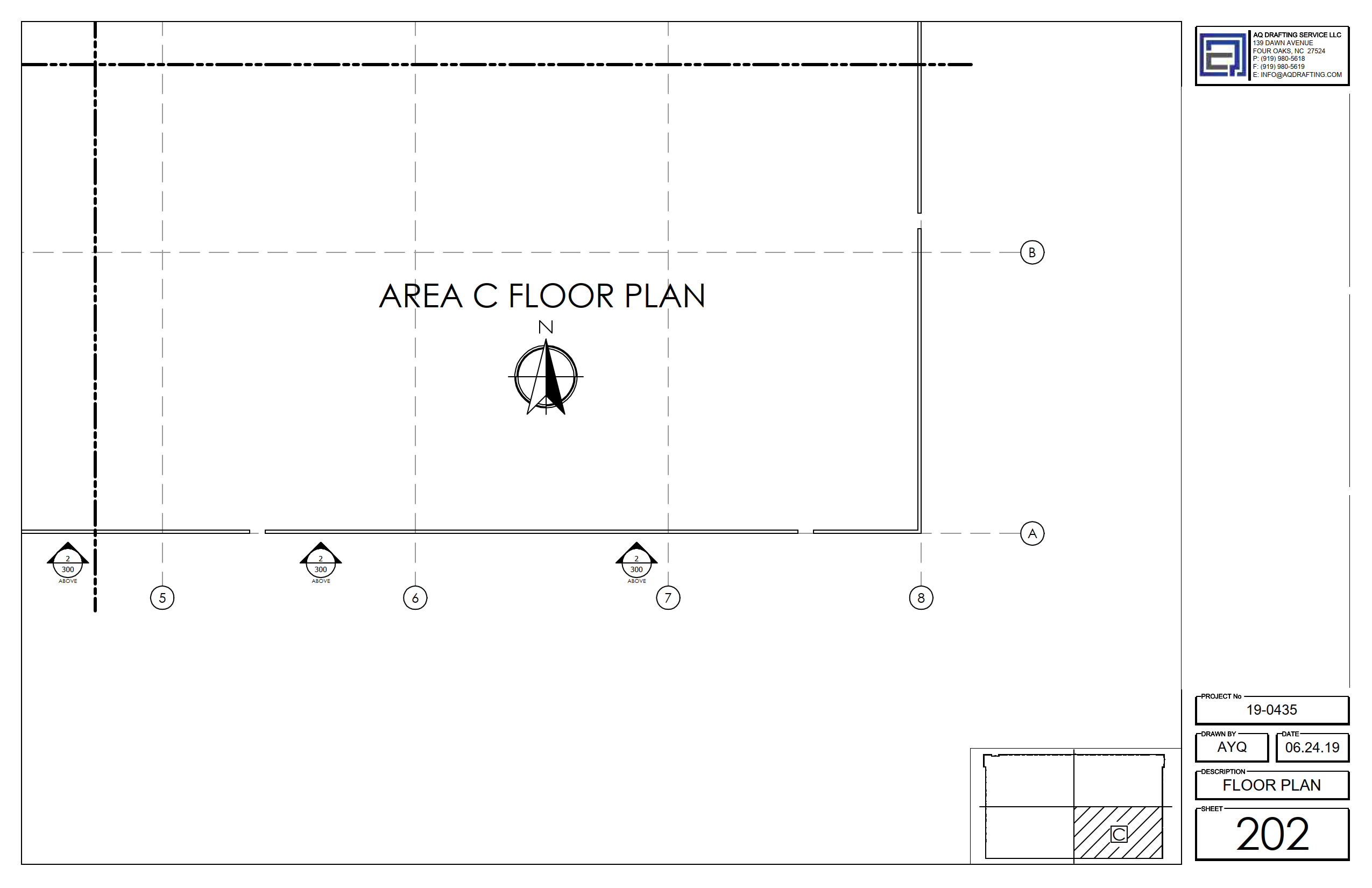

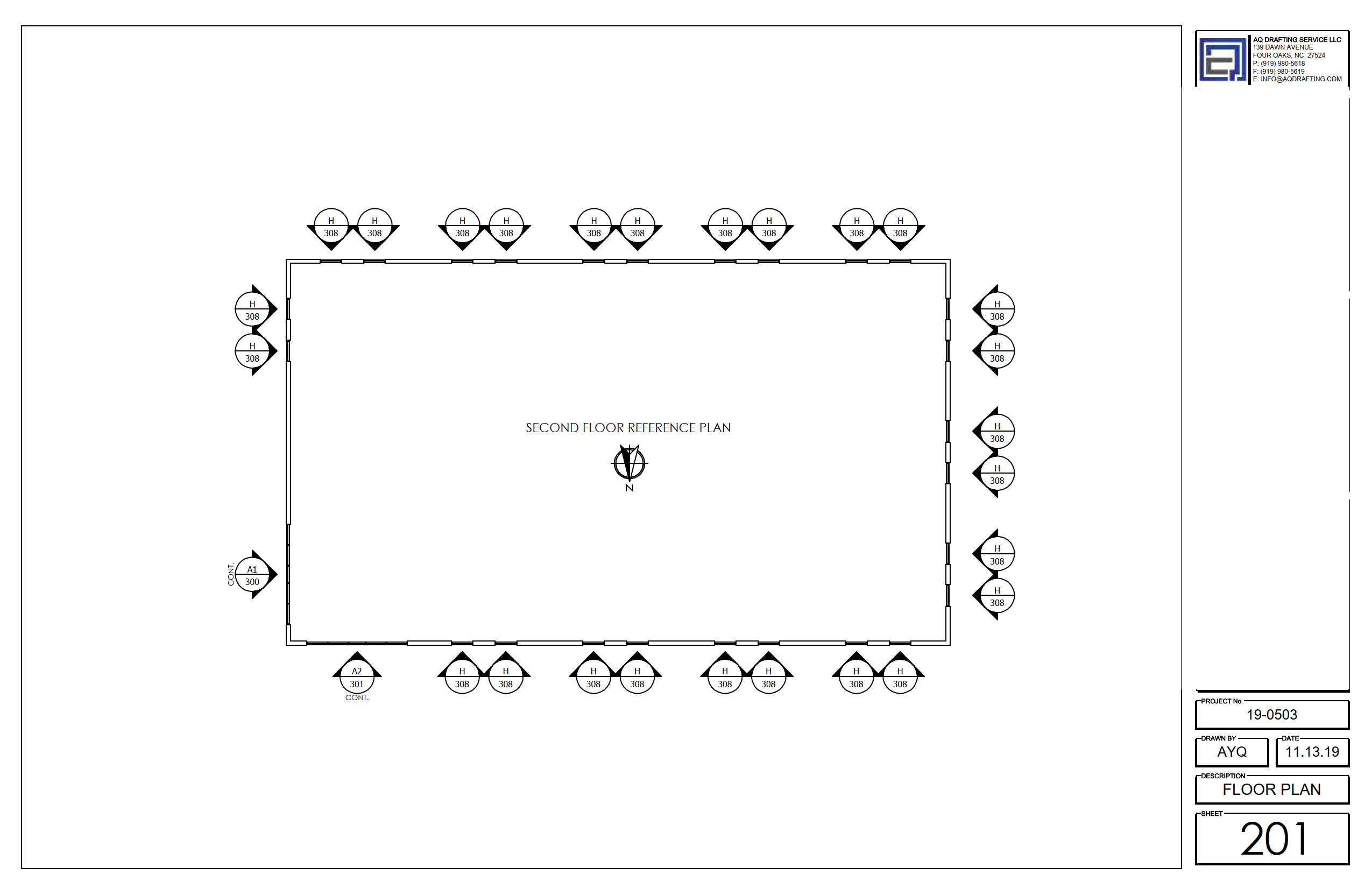

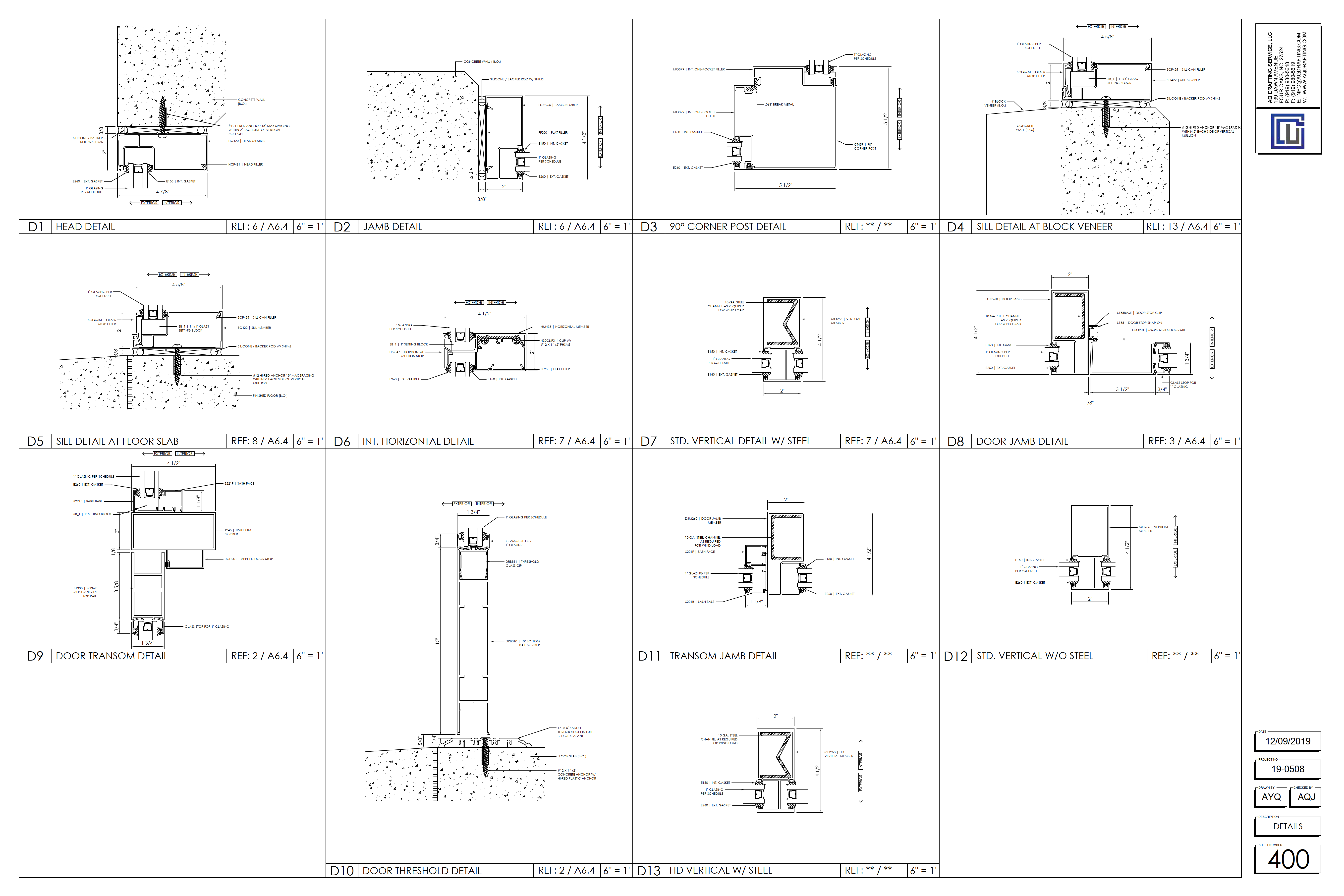

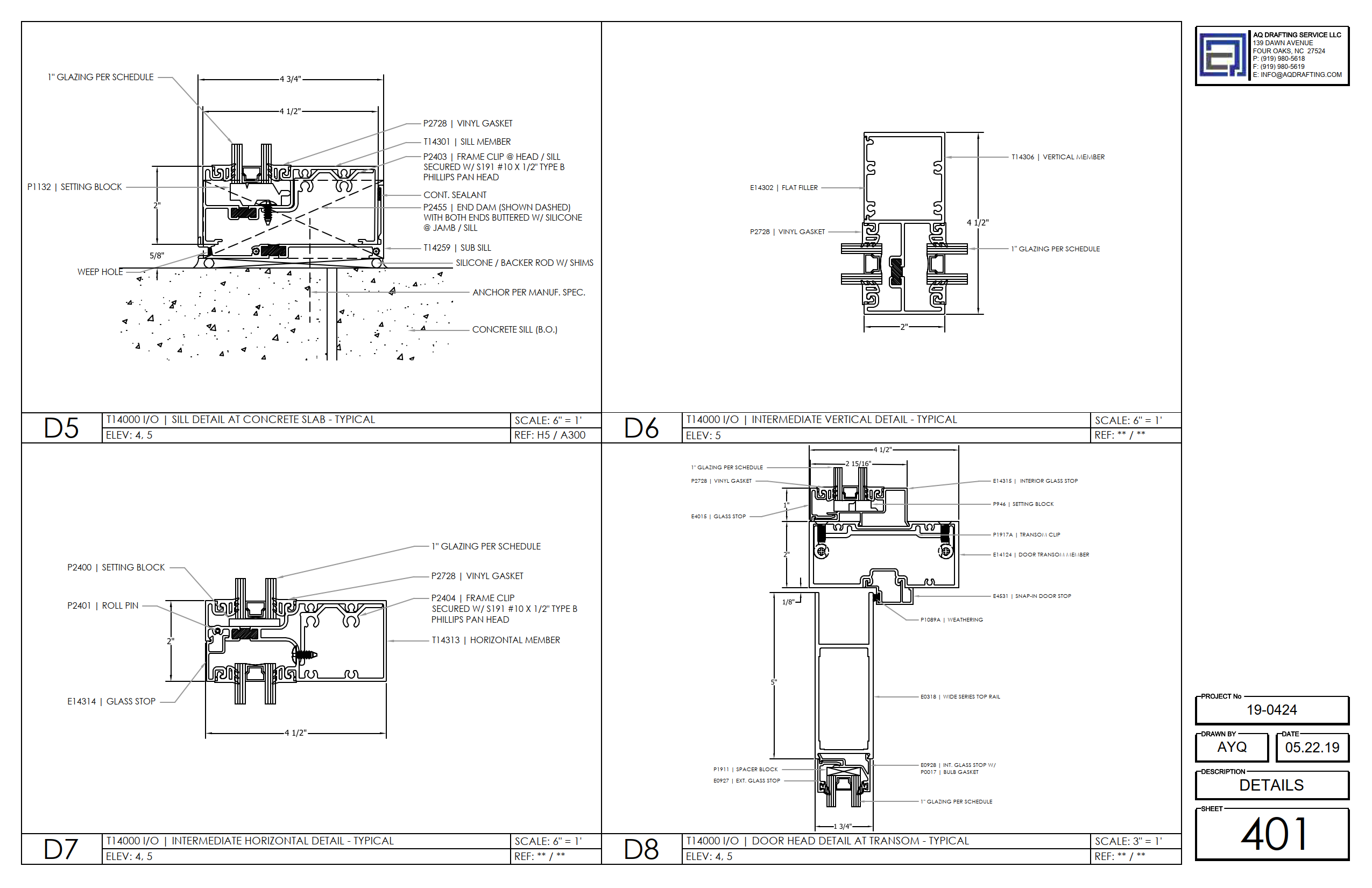

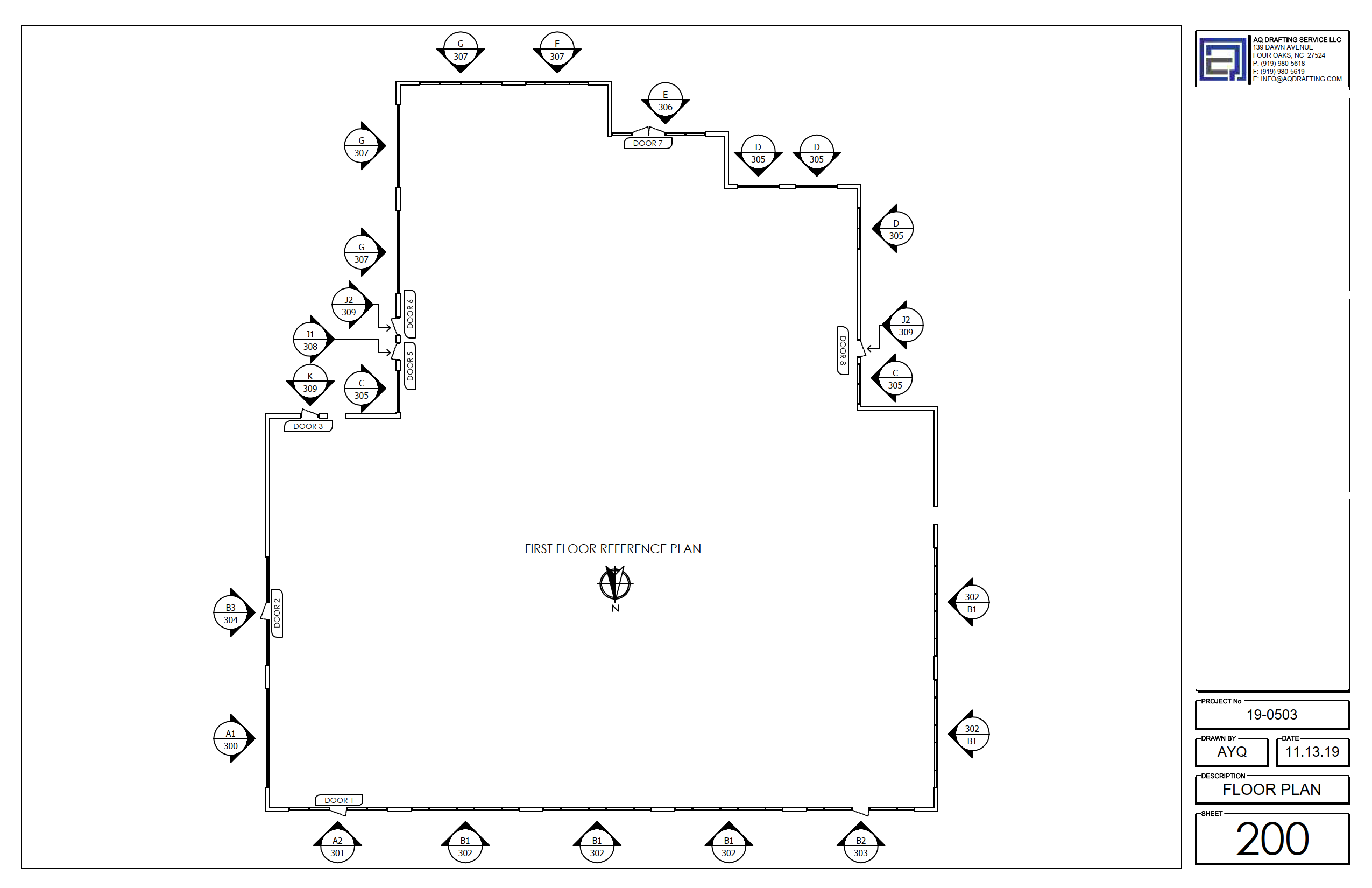

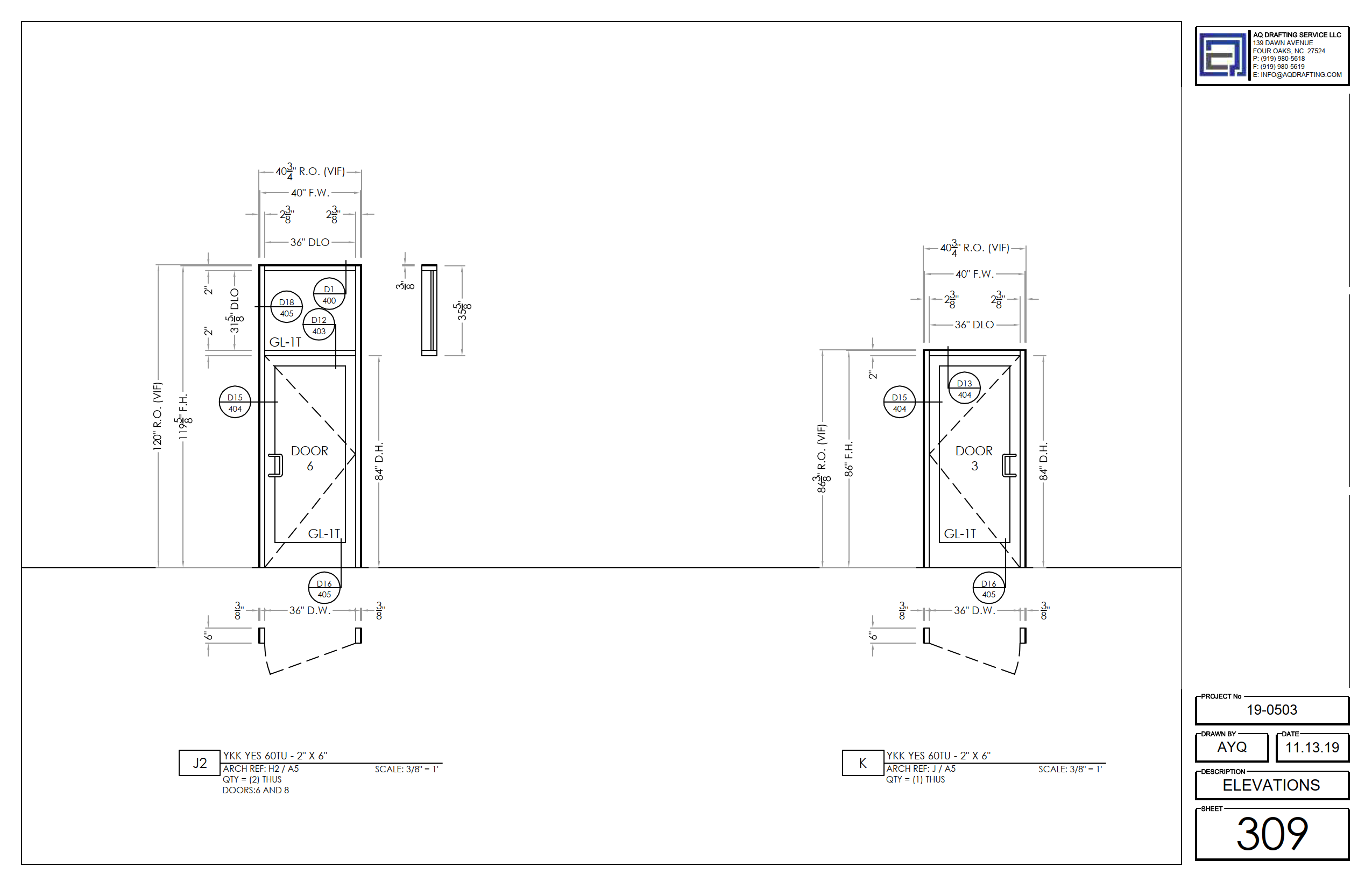

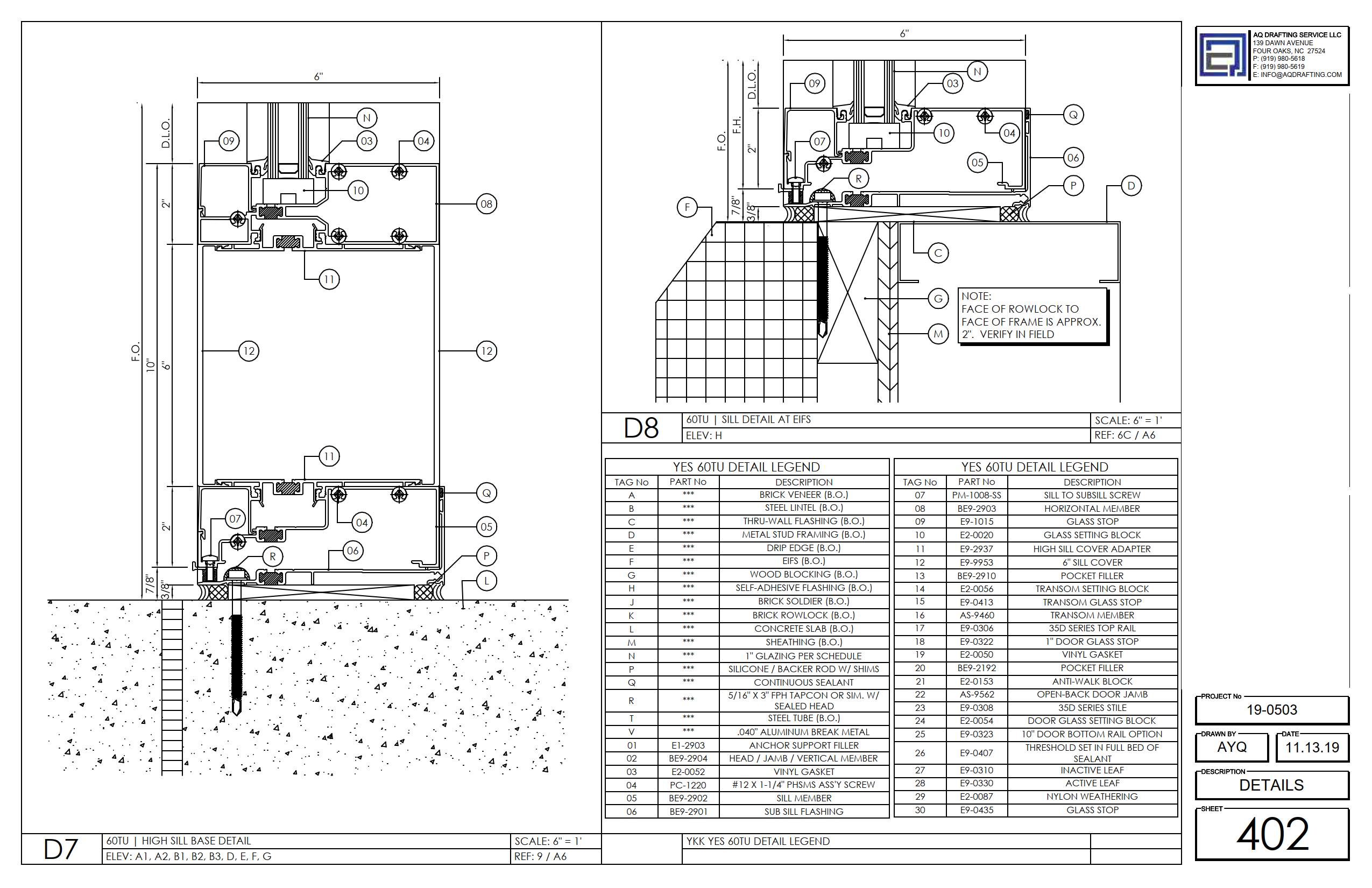

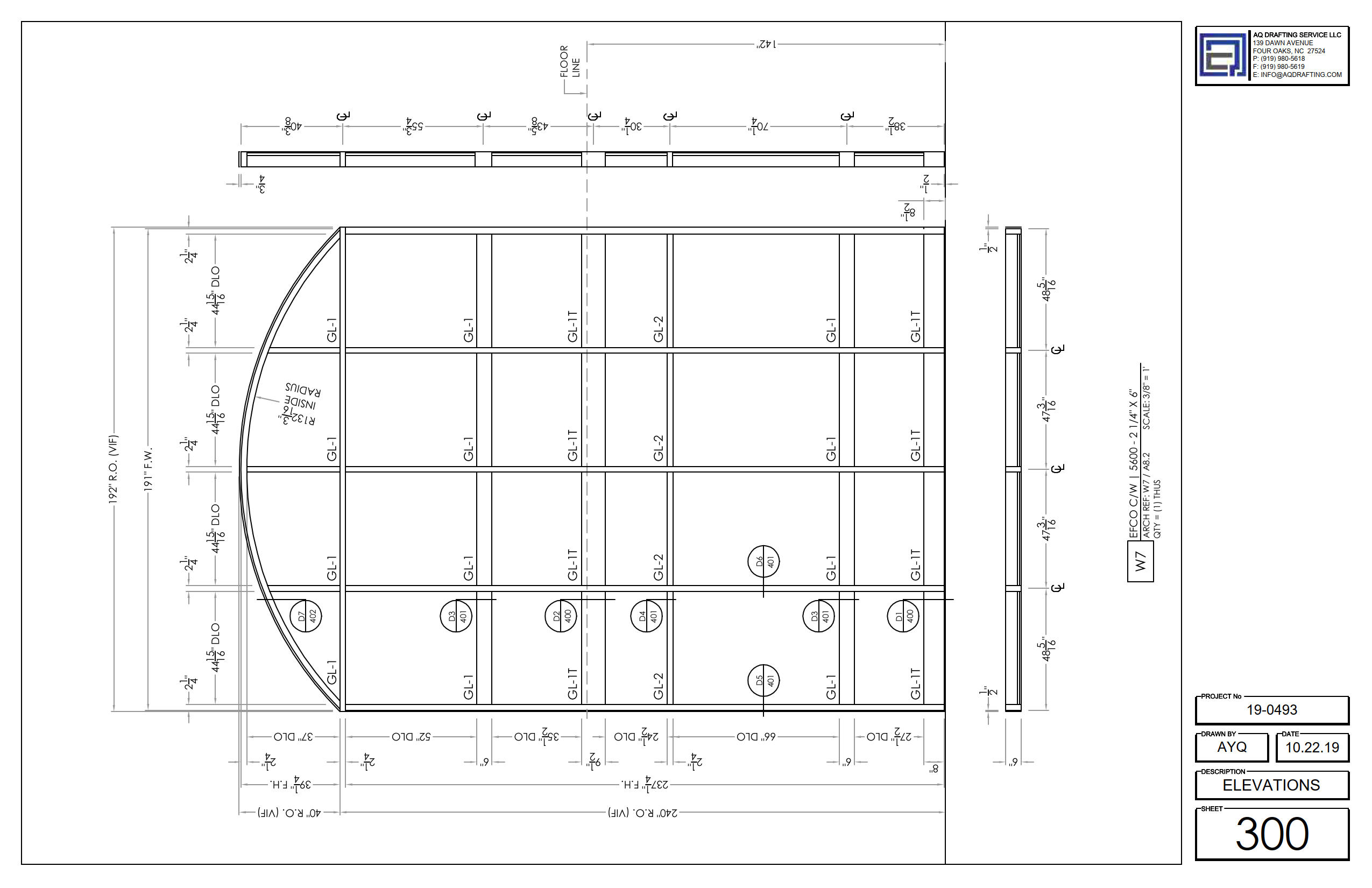

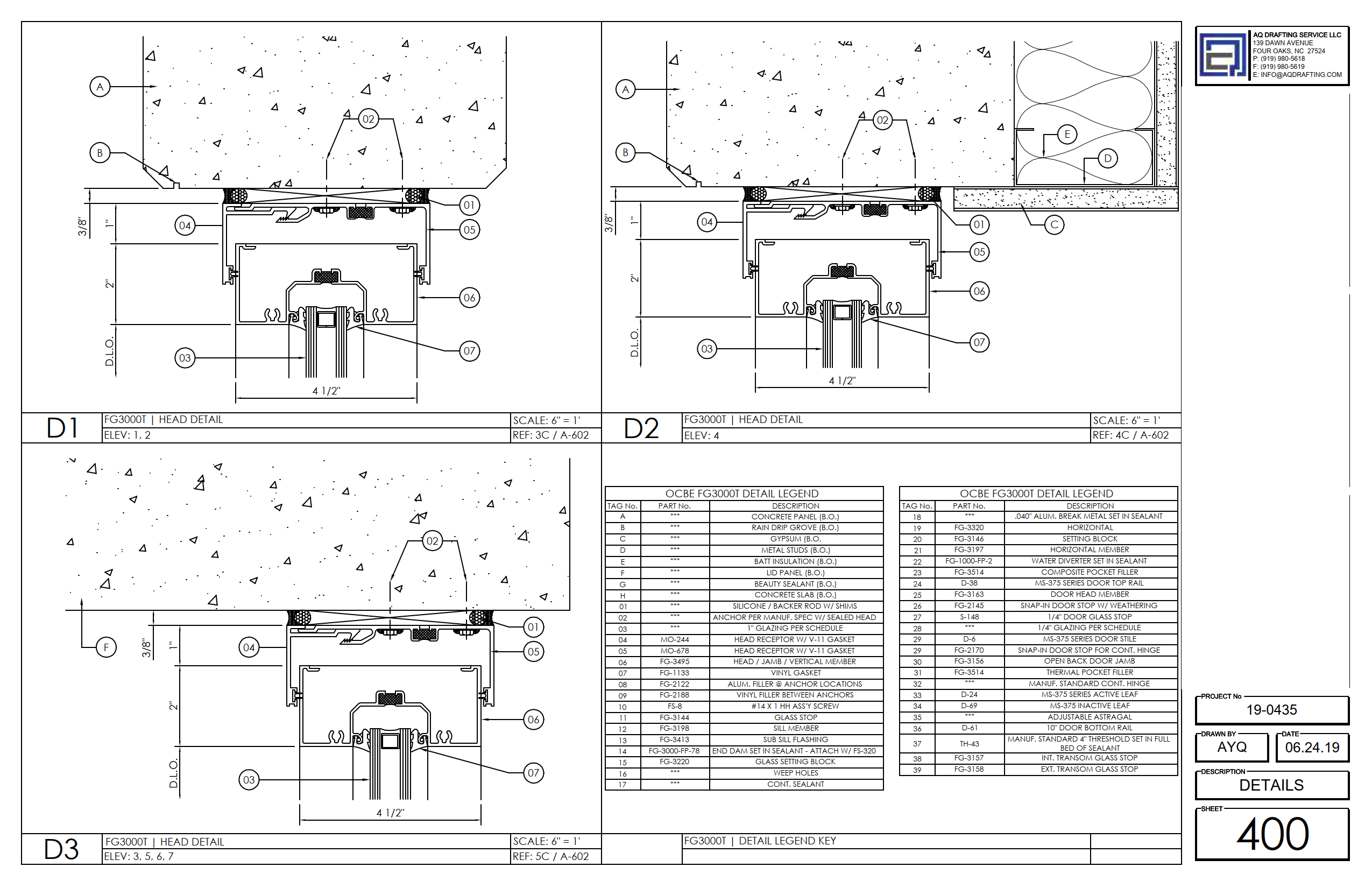

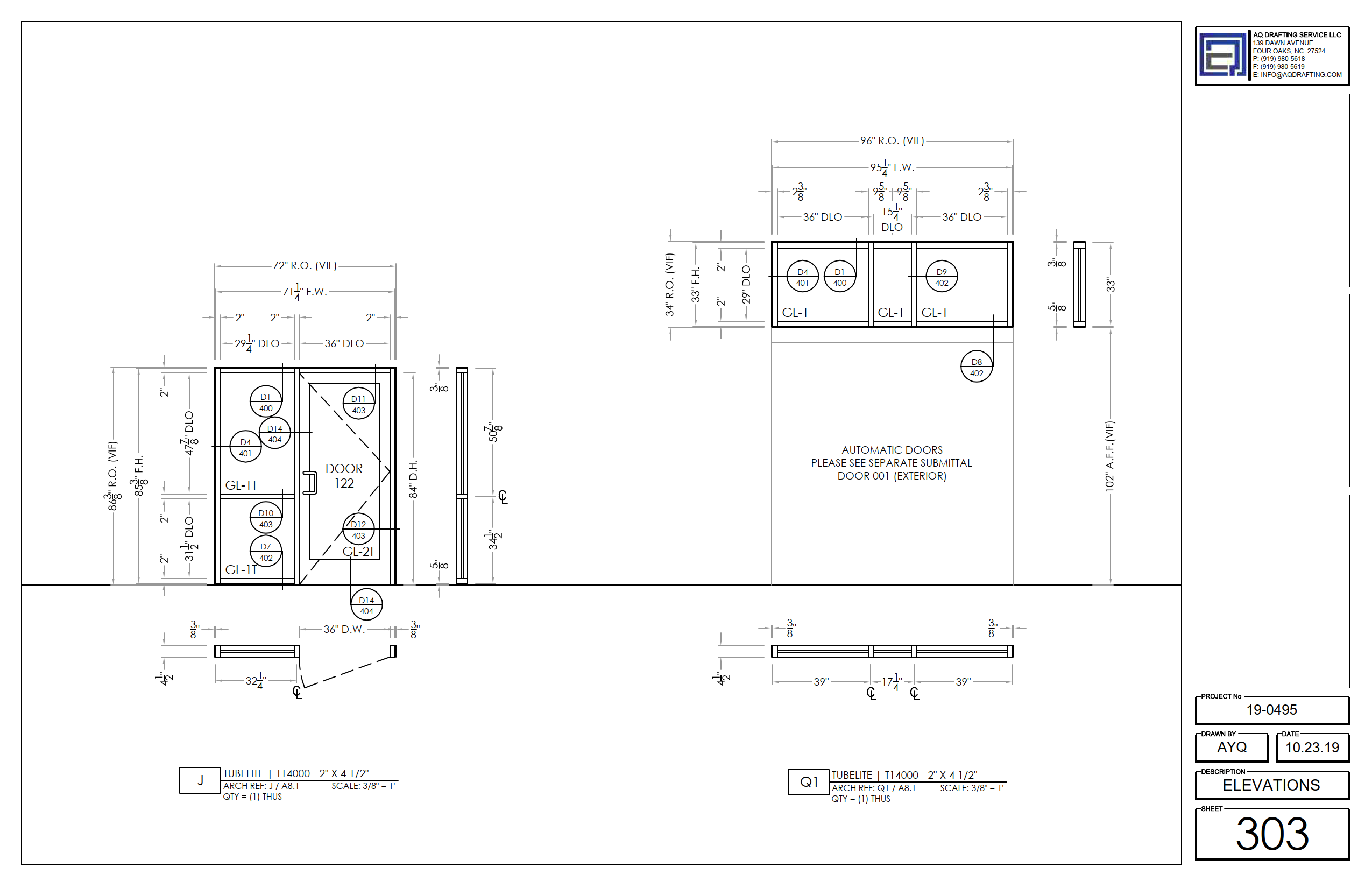

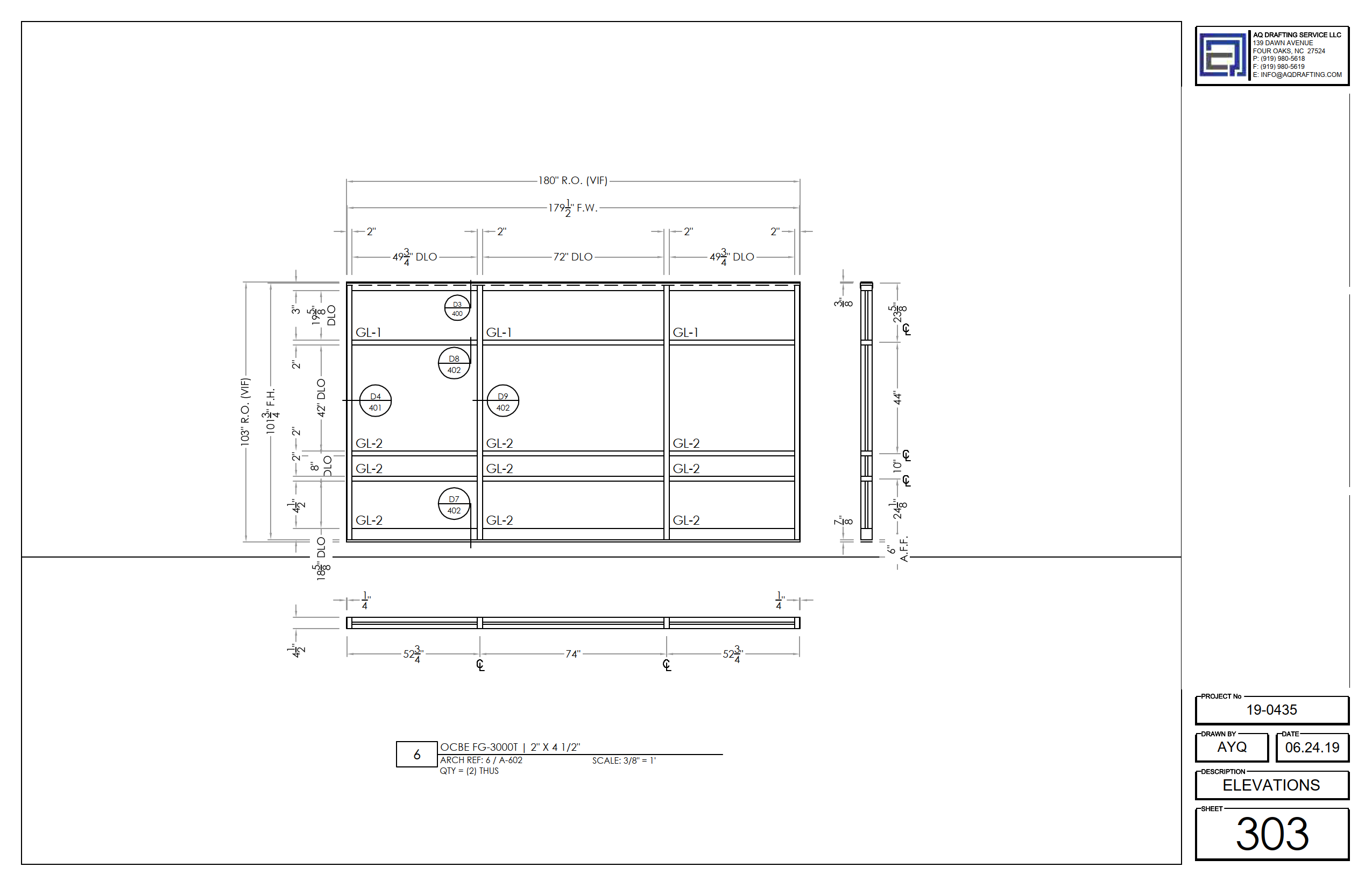

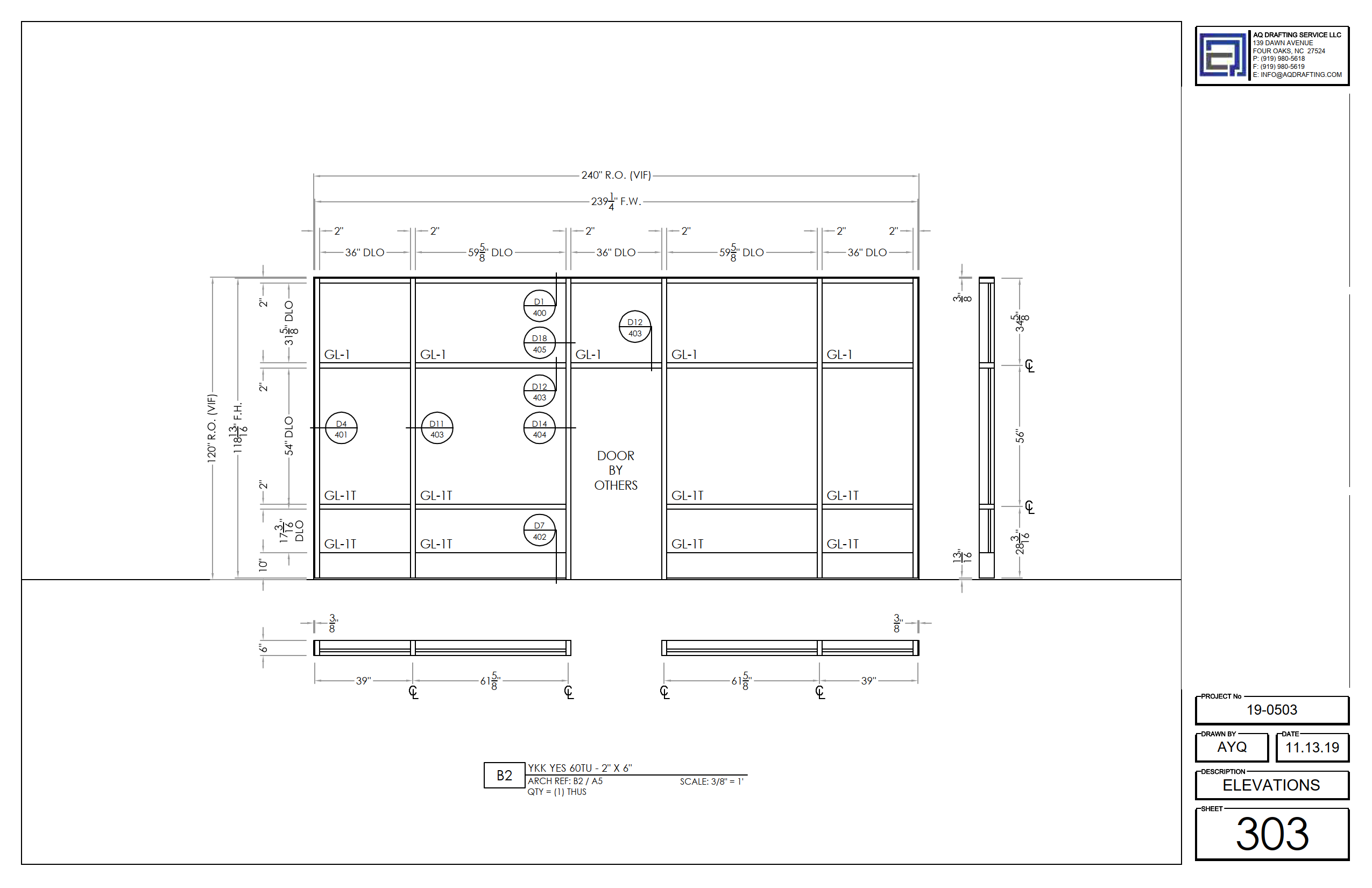

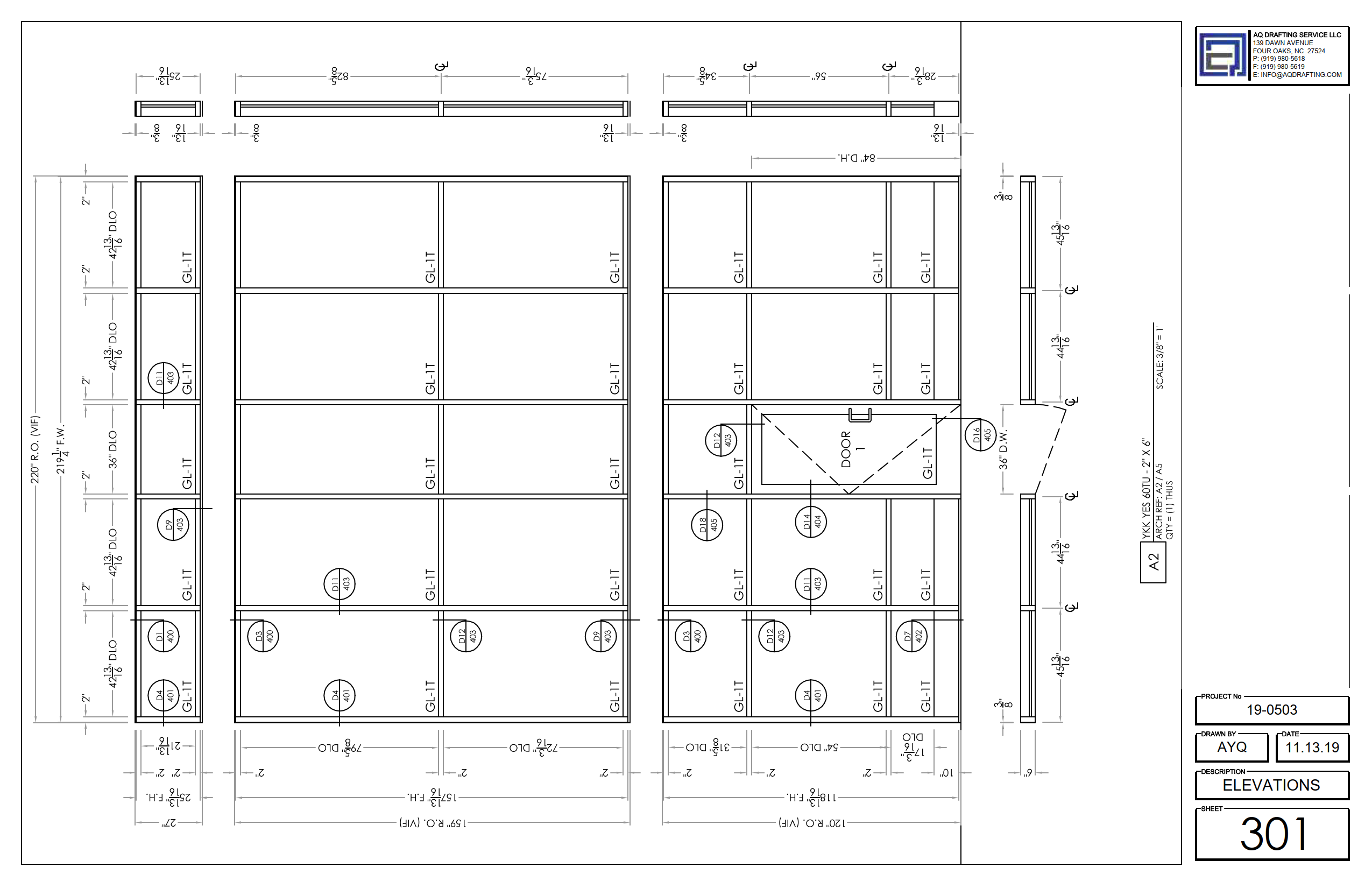

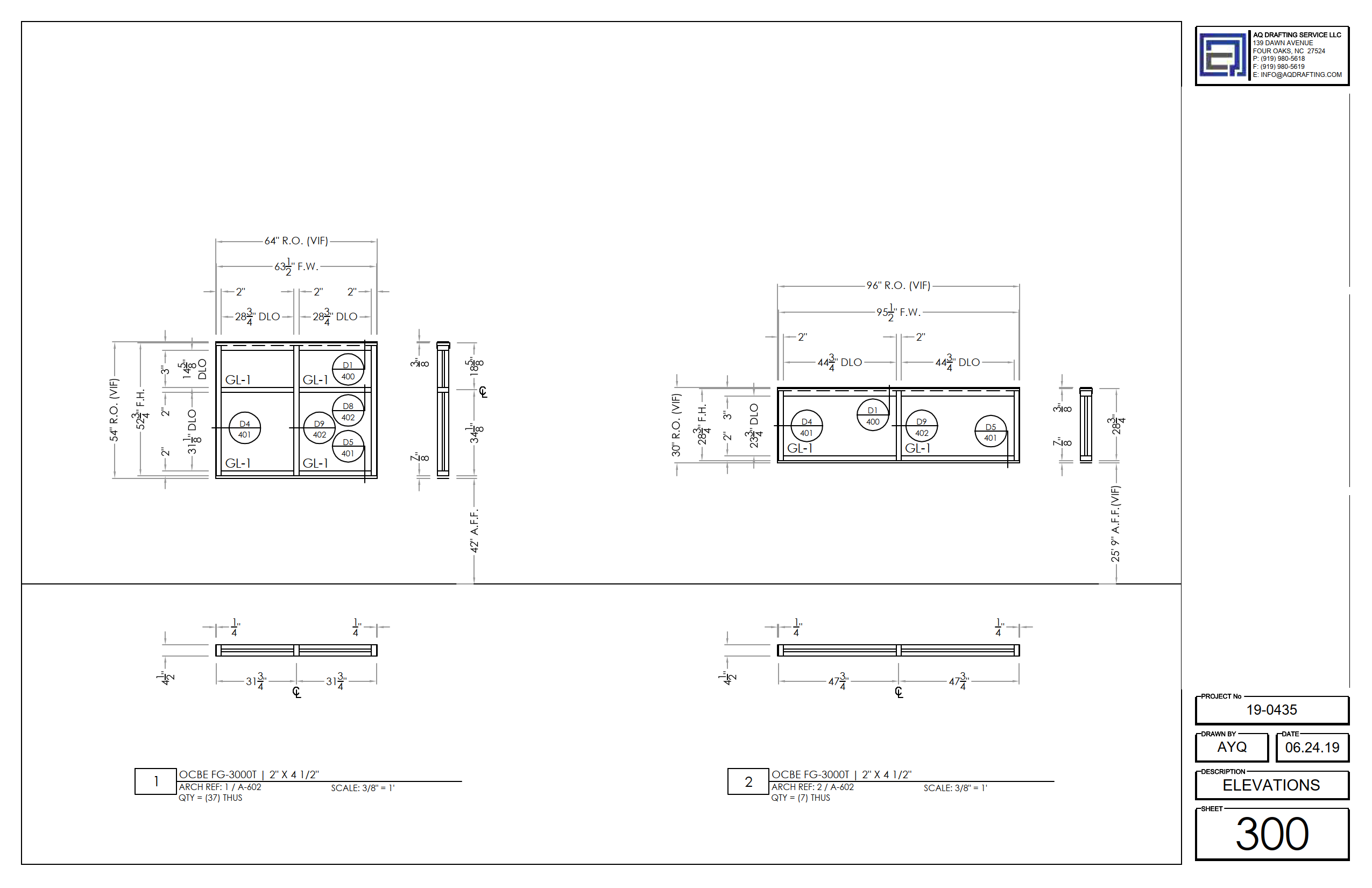

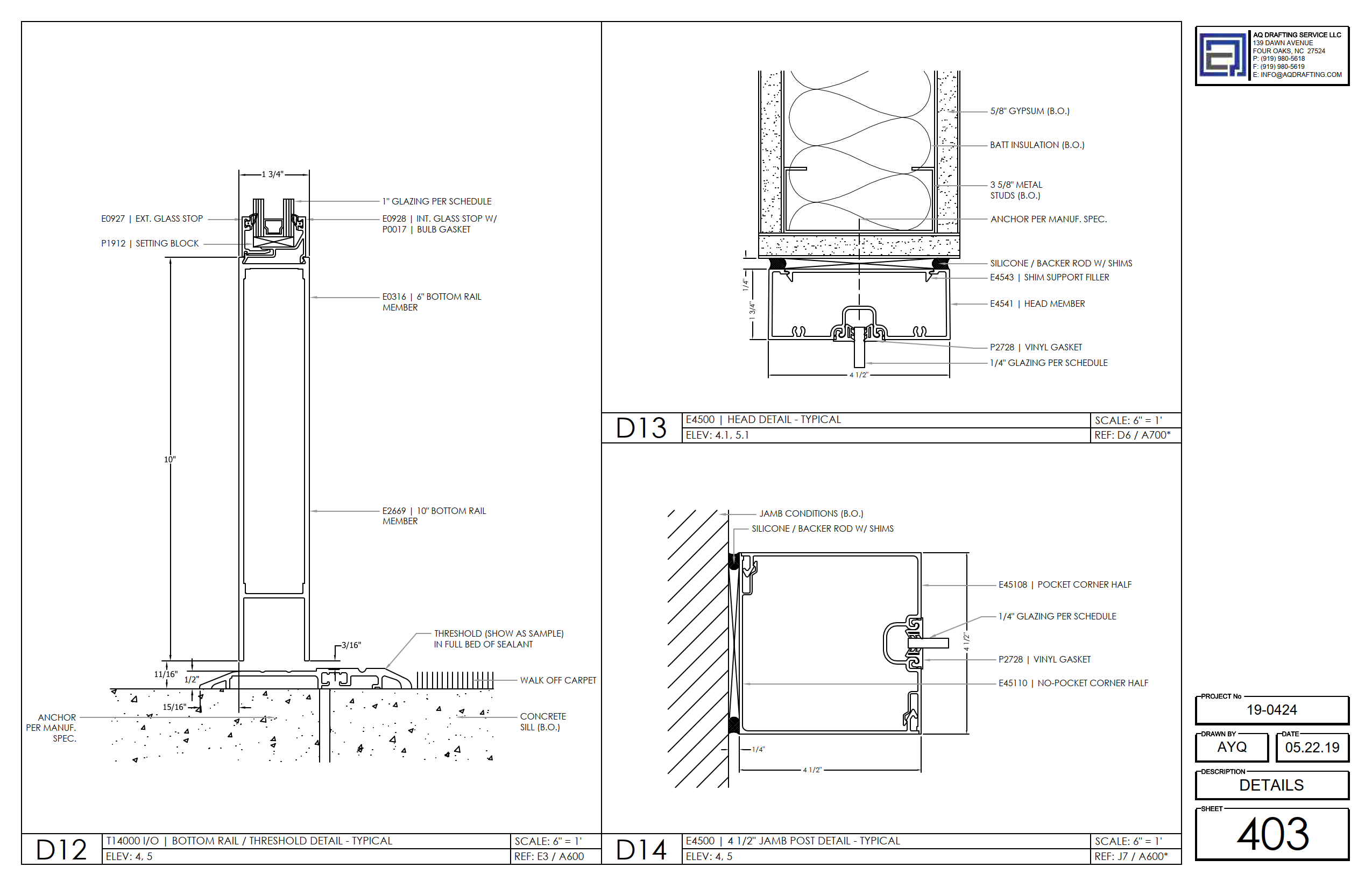

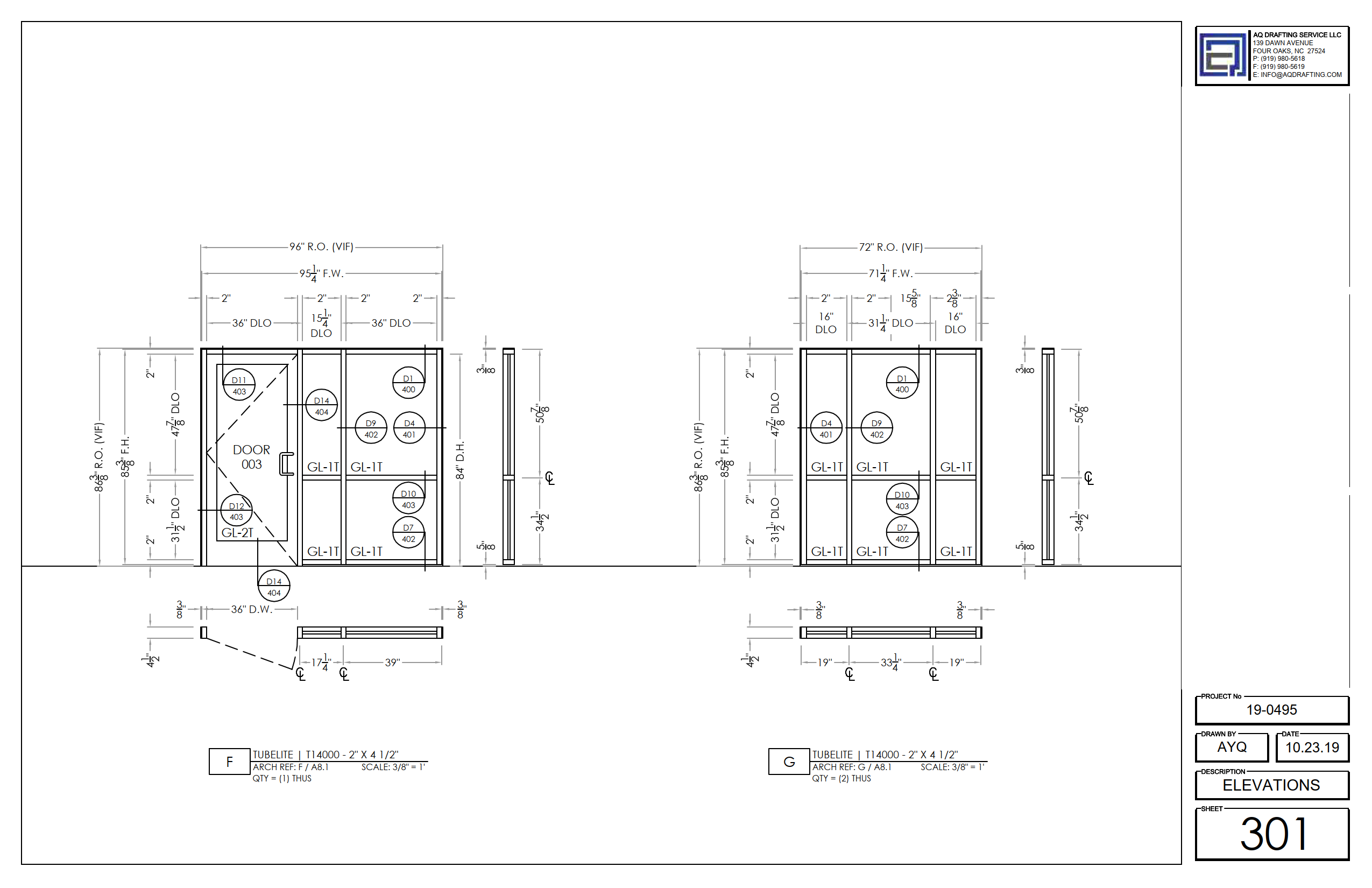

We can easily draft your shop drawings for storefront, curtain wall, all-glass walls, entrances, aluminum panels and canopies. All drawings are in industry standard .dwg format and you will receive a completed .pdf package once your drawings are done. CAD files are available at any time for your own use or for engineering.

Takeoff's

An approved shop drawing submittal is only part of the overall project. After your shop drawings are approved, you will need to order materials. AQ Drafting can provide you with a comprehensive material takeoff including accessories (vinyl, assembly screws, setting blocks, etc).

Cut Lists

You have your approved shop drawings and you have the ordered material sitting in your shop. AQ Drafting can you provide you with a material cut list per field dimension sizes that you can use to cut your material. We can even provide the cut list in a format that your Tiger Stop© or Rhino© equipment can understanding. No need for double entry.

Engineering

AQ Drafting Service currently provides engineering calculations and stamps for NC, SC, VA, TN, GA, PA, MD, MI, DE, WV, NJ, MA, LA, KY, CT, CO, AL and NY.

Downloads

Please use the links below for our forms and information:

Shop Drawing Questionnaire
Fraction Conversion Chart
Door Handing Guide

About us

Who we are and why we do it...

AQ Drafting Service was started in 2015 by Anthony Quinn Jr. At that time, we were a simple single-person company trying to provide a great service at an affordable price. 9 years later, we now have 4 full-time drafters, a field specialist, a materials and fabrication specialist as well as office staff. Almost everyone at AQ Drafting Service is related, making us a true family company.

With a combined experience of 55 years in the commercial glazing industry; we have seen it all. Our #1 goal is to provide commercial glass companies a dependable company to provide all their submittal needs.
